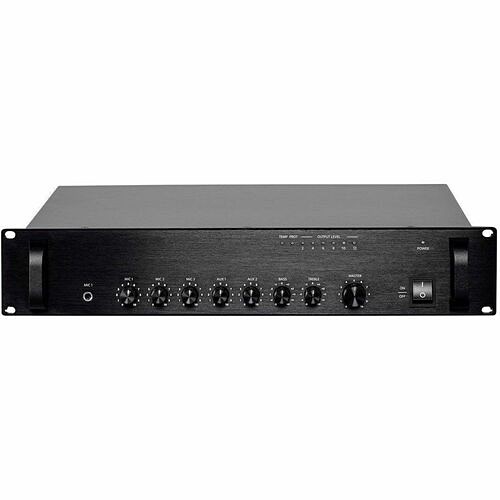

Monoprice Commercial Audio 60w 5ch 100/70v Mixer Amp With Microphone Priority (N (18803)
Monoprice Commercial Audio 60w 5ch 100/70v Mixer Amp With Microphone Priority (N (18803)
Part Number: 18803
Condition: New
Availability: 3
Real time availability
Best of Cleveland Award in the Computers category
Compsource is honored to be named to the Inc. 500|5000 list
Ranked among the top 500 companies
Microsoft authorized Education reseller
HP Qualified Supplies Partner
BBB Accredited Business Since 2000
Product Specifications
Monoprice Commercial Audio 60w 5ch 100/70v Mixer Amp With Microphone Priority (N (18803)
MONOPRICE COMMERCIAL AUDIO 60W 5CH 100/70V MIXER AMP WITH MICROPHONE PRIORITY (N
Manufacturer Part Number: 18803
MANUFACTURER NAME: Monoprice
MANUFACTURER PART NUMBER: 18803
UPC EAN CODE: 889028047897
LANGUAGE: EN
MARKET:US
| General Information: | |
Simplify the task of running distributed audio for restaurants, hotels, or anywhere large areas need background music and/or paging address systems. Connect hundreds of speakers covering acres of area without the need for large equipment racks. A constant voltage speaker system differs from a traditional 8-ohm speaker system in that it uses a step-up transformer at the audio source to raise the voltage and lower the current on the transmission line. At the speaker end, a step-down transformer converts the signal back to a normal speaker level voltage. This reduces power loss during transmission, which allows for the use of longer speaker wire runs using smaller gauge wire. Additionally, a constant voltage speaker system allows for the use of multiple speakers on each channel, without the need for complicated impedance calculations and configurations. In a constant voltage system, all speakers on a given channel are connected in parallel and the complicated impedance calculations are replaced by simple wattage calculations. For example, if you want to connect two speakers per channel in a traditional 8-ohm speaker system, you must either connect them in series, which results in an overall 16-ohm impedance, or in parallel, which results in an overall 4-ohm impedance. In the first case, the 16-ohms impedance effectively halves the output power of your amplifier, resulting in lower overall volume levels. In the latter case, the 4-ohms impedance means that your amplifier will have to work harder and must be rated as stable at 4 ohms. Adding a third speaker to the mix would complicate it further, producing either a 24-ohm or 2-ohm overall impedance. Note that very few amplifiers are stable under 2-ohm loads, so that is usually not an option. On the other hand, with a constant voltage system, you consider first the RMS output wattage of the amplifier. This should be reduced by 20% to compensate for insertion loss. For example, if using a 100-watt amplifier, the total load from speakers should not exceed 80 watts. This amplifier features three microphone inputs and two auxiliary inputs, each of which is active and mixed into the line and speaker level outputs. When an EMC input trigger is detected, all outputs except MIC 1 are muted, allowing for the clear broadcast of important messages. The amplifier can drive a speaker array consisting of one or more speakers presenting a 4~16 ohm load or to one or more 70V or 100V speakers connected in parallel as part of a large public address system. | |
| Manufacturer | Monoprice, Inc |
| Manufacturer Part Number | 18803 |
| Manufacturer Website Address | http://www.monoprice.com |
| Brand Name | Monoprice |
| Product Model | 18803 |
| Product Name | Commercial Audio 60W 5ch 100/70V Mixer Amp with Microphone Priority |
| Product Type | Amplifier |
| Product UPC | 889028047897 |
| Technical Information: | |
| Minimum Frequency Response | 50 Hz |
| Maximum Frequency Response | 16 kHz |
| Features | Overheat Protection
Overcurrent Protection Bass Control |
| Audio: | |
| Audio Channels | 5 |
| RMS Output Power | 60 W |
| Interfaces/Ports: | |
| Number of Analog Audio Inputs | 10 |
| Power Description: | |
| Input Voltage | 120 V AC
230 V AC |
| Operating Power Consumption | 100 W |
| Physical Characteristics: | |
| Height | 3.5" |
| Width | 19.1" |
| Depth | 13.2" |
| Weight (Approximate) | 15.65 lb |
| Miscellaneous: | |
| Form Factor | Rack Mount |
| Country of Origin | China |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
Questions and Answers
Questions and Answers | Ask CompSource |
Shipping / Returns
Shipping
Ground =
$31.00
(EST. Arrival Date between
Tue.Apr.28 - Fri.May.1)
Two Day Air = $45.00
(EST. Arrival Date on Tue.Apr.28)
Standard One Day = $85.00
(EST. Arrival Date on Mon.Apr.27 after 3PM)
Priority = $125.00
(EST. arrival Date on Mon.Apr.27 in the AM)
U.S Mail Priority (AA,AE,AP only) = $56.67
FedEx International Economy (Canada only) = $105.00
Shipping dates are best estimates based on product location and may vary with holidays.
If product requires trucking, additional fees may apply.
* Some destinations are subject to Applicable State/Duty Taxes
Returns
CompSource realizes that every product may have different return guidelines. Please see the policy below regarding this item.
This Product Has Limited Exchange Privileges.
Limited returns within 30 days of purchase permitted on this product.
For support on this product, please contact Monoprice.
