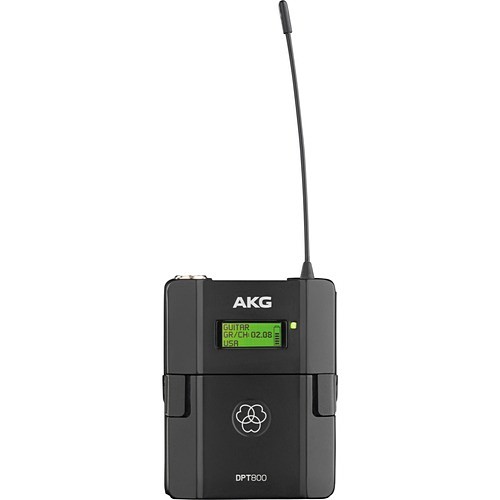

AKG Reference Digital Wireless Body Pack Transmitter (BD1) - 548.10 MHz to 697.90 MHz Operating Frequency - 25 Hz to 20 kHz Frequency Response - 328.08 ft Operating Range (3382H00100)
AKG Reference Digital Wireless Body Pack Transmitter (BD1) - 548.10 MHz to 697.90 MHz Operating Frequency - 25 Hz to 20 kHz Frequency Response - 328.08 ft Operating Range (3382H00100)
Part Number: 3382H00100
Condition: New
Availability:
Out of stock
Real time availability
Notify Me
Best of Cleveland Award in the Computers category
Compsource is honored to be named to the Inc. 500|5000 list
Ranked among the top 500 companies
Microsoft authorized Education reseller
HP Qualified Supplies Partner
BBB Accredited Business Since 2000
- Shipping Insurance
- Price Match Guarantee
- Terms of Service Guarantee
- Identity Theft Protection
Product Specifications
AKG Reference Digital Wireless Body Pack Transmitter (BD1) - 548.10 MHz to 697.90 MHz Operating Frequency - 25 Hz to 20 kHz Frequency Response - 328.08 ft Operating Range (3382H00100)
DMS800 DPT800 BD1 - BODY PACK TRANSMITTER
Manufacturer Part Number: 3382H00100
The DPT800 reference digital wireless body-pack transmitter, for use with the DSR800 wireless receiver, provides an ultra-wide bandwidth of 150 MHz and a selectable radio output power of 10- 50mW (depending on frequency band). For convenience and versatility, the transmitter can be programmed remotely via infrared data transmission from the DSR800 receiver, and signal security is ensured through the use of 512-bit encryption technology. The DPT800 features an optional external mute/power switch that allows muting and on/off operation even when the transmitter is hard to access. The three-pin mini XLR audio input is compatible with any AKG lavalier and head-worn microphone and provides a bias voltage of 5V.
Minimum Operating Frequency: 548.10 MHz
Maximum Operating Frequency: 697.90 MHz
Minimum Frequency Response: 25 Hz
Maximum Frequency Response: 20 kHz
Operating Range: 328.08 ft
XLR: Yes
Product Color: Black
Height: 3.2"
Width: 2.6"
Depth: 1.1"
MANUFACTURER NAME: Harman Pro
MANUFACTURER PART NUMBER: 3382H00100
UPC EAN CODE: 885038037378
LANGUAGE: EN
MARKET:US
| General Information: | |
The DPT800 reference digital wireless body-pack transmitter, for use with the DSR800 wireless receiver, provides an ultra-wide bandwidth of 150 MHz and a selectable radio output power of 10- 50mW (depending on frequency band). For convenience and versatility, the transmitter can be programmed remotely via infrared data transmission from the DSR800 receiver, and signal security is ensured through the use of 512-bit encryption technology. The DPT800 features an optional external mute/power switch that allows muting and on/off operation even when the transmitter is hard to access. The three-pin mini XLR audio input is compatible with any AKG lavalier and head-worn microphone and provides a bias voltage of 5V. | |
| Manufacturer | Harman International Industries, Inc |
| Manufacturer Part Number | 3382H00100 |
| Manufacturer Website Address | http://www.harman.com |
| Brand Name | AKG |
| Product Model | DPT800 |
| Product Name | Reference Digital Wireless Body Pack Transmitter (BD1) |
| Product Type | Wireless Bodypack Microphone Transmitter |
| Product UPC | 885038037378 |
| Technical Information: | |
| Minimum Operating Frequency | 548.10 MHz |
| Maximum Operating Frequency | 697.90 MHz |
| Minimum Frequency Response | 25 Hz |
| Maximum Frequency Response | 20 kHz |
| Operating Range | 328.08 ft |
| Interfaces/Ports: | |
| XLR | Yes |
| Physical Characteristics: | |
| Product Color | Black |
| Height | 3.2" |
| Width | 2.6" |
| Depth | 1.1" |
| Miscellaneous: | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
