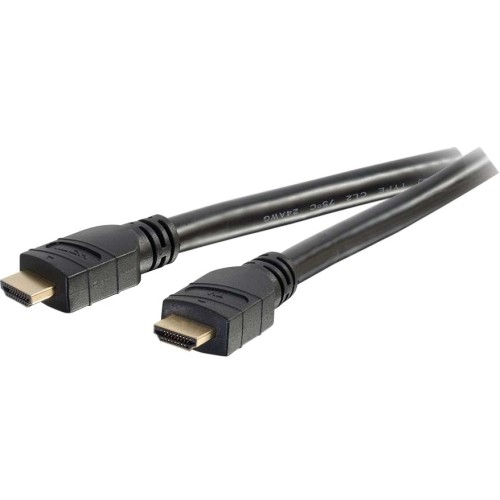

C2G 75ft HDMI Cable - Active HDMI - High Speed - CL-3 Rated - In Wall Rated - In-Wall, CL3-Rated (41368)
C2G 75ft HDMI Cable - Active HDMI - High Speed - CL-3 Rated - In Wall Rated - In-Wall, CL3-Rated (41368)
Part Number: 41368
Condition: New
Availability: 556
Real time availability
Best of Cleveland Award in the Computers category
Compsource is honored to be named to the Inc. 500|5000 list
Ranked among the top 500 companies
Microsoft authorized Education reseller
HP Qualified Supplies Partner
BBB Accredited Business Since 2000
- Shipping Insurance
- Price Match Guarantee
- Terms of Service Guarantee
- Identity Theft Protection
Product Specifications
C2G 75ft HDMI Cable - Active HDMI - High Speed - CL-3 Rated - In Wall Rated - In-Wall, CL3-Rated (41368)
75FT ACTIVE HDMI HIGH SPEED CABLE CL3
Manufacturer Part Number: 41368
Note:
- The full product specifications below are from the manufacturer and may contain information related to other package quantities that will not apply to the product that you are reviewing. Please confirm the actual content and/or package quantity from the main product specifications page.
- These specifications may represent the entire product series/model/line to which this product belongs with specific configuration differences between the individual products stated.
- These specifications may have been copied from the same product in other region/country in which case there might be minor differences in region-specific data such as Input Voltage, Terms of Warranty etc.
Length :: 75.00 Foot
Jacket Rating :: In Wall
UPC :: 757120413684
Warranty :: 3 Years
Vendor :: C2G
Weight :: 4.242 LB
Electrical Specifications
• Signal bandwidth: 3.4Gbps
• Nominal impedance: 100pF/m at 10Ω
• Nominal capacitance: <700pF
• Insulation resistance: 100MΩ/km at 20°C
• Nominal attenuation: 1-100MHz dB/50ft
• Voltage rating: 30V
• Power consumption: 50mA at 5V
Physical Specifications
• Cable bend radius: 10mm
• Operating temperature range: -20°C-85°C
• Operating temperature range: -25°C-85°C
• Relative humidity: 60-93%
Conductors
• Conductor type: 26AWG (7/0.16) Tinned Copper
• Drain wire: 26AWG (7/0.16) Tinned Copper
Connectors (2)
• Connector type: 19-pin HDMI Male
• Housing: Black
• Plating: Gold flashed
• Chip: Redmere (1692 FW Rev0.2)
Overall Cable Construction
• Braided shield: Aluminum magnesium braid (16/9/0.12) - 65% coverage
• Foil shield: Aluminum wrap - 100% coverage
• Drain wire: 26AWG (7/0.16) Bare Copper
• Jacket: Black PVC CL3-rated
• Outside diameter: 8.5mm ± 0.2
MANUFACTURER NAME: C2g
MANUFACTURER PART NUMBER: 41368
UPC EAN CODE: 818242619269
LANGUAGE: EN
MARKET:US
| General Information: | |
C2G Plus Series Active High Speed HDMI Cable is the perfect solution for extending HDMI signals in classrooms, conference rooms, houses of worship, and other commercial environments. This cable features a built-in signal booster that supports HDMI A/V connections at longer distances than non-active cables. They support resolutions up to 4K (4096 x 2160, 4:4:4), bandwidths up to 18Gbps, HDR for higher contrast ratios and vivid colors, plus 32 uncompressed digital audio channels, making them ideal for commercial environments. | |
| Manufacturer | Legrand Group |
| Manufacturer Part Number | 41368 |
| Manufacturer Website Address | http://www.legrand.us |
| Brand Name | C2G |
| Product Name | 75ft Active High Speed HDMI Cable - In-Wall CL-3 Rated - 4K 60Hz - M/M |
| Product Type | A/V Cable |
| Product UPC | 818242619269 |
| Technical Information: | |
| Cable Type | HDMI |
| Cable Length | 75 ft |
| Connector Type on First End | HDMI Digital Audio/Video - Male |
| Connector on First End Details | 1 x 19-pin HDMI Digital Audio/Video - Male |
| Connector Type on Second End | HDMI Digital Audio/Video - Male |
| Connector on Second End Details | 1 x 19-pin HDMI Digital Audio/Video - Male |
| Connector Plating | Gold-flash |
| Shielding | Yes |
| Device Supported | Audio/Video Device
Blu-ray Player HDTV Projector Notebook |
| American Wire Gauge | 26 AWG |
| Supported Resolution | 4096 x 2160 |
| Features | Active
Extended Display Identification Data (EDID) HDCP Signal Booster |
| Physical Characteristics: | |
| Color Family | Black |
| Product Color | Black |
| Weight (Approximate) | 4.24 lb |
| Miscellaneous: | |
| Country of Origin | China |
| Warranty: | |
| Warranty | 3 Year |
