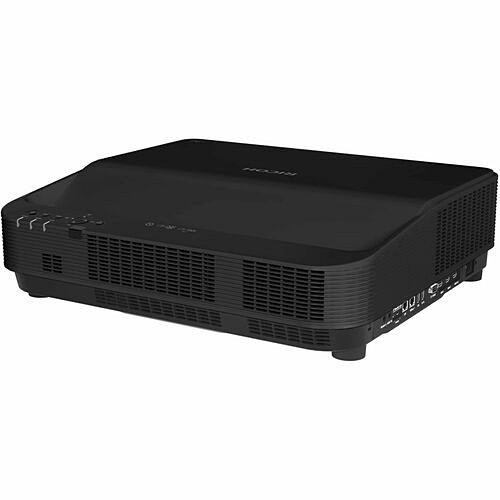

PFU UHL3660 Ultra Short Throw DLP Projector - 16:10 - Ceiling Mountable, Floor Mountable, Wall Mountable - High Dynamic Range (HDR) - Front - 2160p - 20000 Hour Normal Mode - 30000 Hour Economy Mode - 5,000,000:1 - 6500 lm - HDMI - USB - Network (RJ- (432684)
PFU UHL3660 Ultra Short Throw DLP Projector - 16:10 - Ceiling Mountable, Floor Mountable, Wall Mountable - High Dynamic Range (HDR) - Front - 2160p - 20000 Hour Normal Mode - 30000 Hour Economy Mode - 5,000,000:1 - 6500 lm - HDMI - USB - Network (RJ- (432684)
Part Number: 432684
Condition: New
Availability: 9
Real time availability
Best of Cleveland Award in the Computers category
Compsource is honored to be named to the Inc. 500|5000 list
Ranked among the top 500 companies
Microsoft authorized Education reseller
HP Qualified Supplies Partner
BBB Accredited Business Since 2000
- Shipping Insurance
- Price Match Guarantee
- Terms of Service Guarantee
- Identity Theft Protection
Product Specifications
PFU UHL3660 Ultra Short Throw DLP Projector - 16:10 - Ceiling Mountable, Floor Mountable, Wall Mountable - High Dynamic Range (HDR) - Front - 2160p - 20000 Hour Normal Mode - 30000 Hour Economy Mode - 5,000,000:1 - 6500 lm - HDMI - USB - Network (RJ- (432684)
RICOH UHL3660 PROJECTOR -
Manufacturer Part Number: 432684
Ricoh 432684 (UHL3660) Specifications
Overview
- Type: Ultra Short Throw Laser Projector
- Model: Ricoh UHL3660
- Resolution: 4K UHD (3840 x 2160 via pixel shift)
- Native Resolution: 1920 x 1080
- Brightness: 6,500 lumens
- Contrast Ratio: 5,000,000:1
- Throw Ratio: 0.24:1
- Projection Distance: 0.39-14.96 in (1-38 cm)
- Screen Size: 85' to 160'
Light Source & Technology
- Dual laser light sources
- Phosphor wheels
- OptiBright™ technology
- HDR support
- Up to 40,000 hours maintenance-free operation
Connectivity
- HDMI 2.0
- HDBaseT
- USB Type-A and Micro-USB
- LAN (RJ-45)
- Wireless: Miracast™ (Windows & Android)
- RS-232 serial
- Audio line-out
Installation & Compatibility
- 360° installation: ceiling, floor, wall
- Portrait projection supported
- Compatible with Ricoh and third-party AV control systems
- Built-in stereo speakers
Image Adjustment Features
- Advanced keystone correction
- 4-corner and 6-point correction
- Pixel Quadrupling Technology
- Preset display modes
- Split image control
- Vertical streak reduction
Dimensions & Weight
- Approx. Size: 19 x 17 x 13 in
- Weight: Approx. 50 lb
Operating System Compatibility
- Windows 7, 10, 11
- Windows Server 2012 R2, 2016, 2019, 2022
MANUFACTURER NAME: Ricoh
MANUFACTURER PART NUMBER: 432684
UPC EAN CODE: 026649326844
LANGUAGE: EN
MARKET:US
| General Information: | |
The Ricoh UHL3660 sets a new standard in ultra-short throw (UST) laser projectors, delivering vibrant, laser-sharp 4K UHD visuals with an impressive 6,500 lumens of brightness. Featuring OptiBright* technology, its dual laser light sources and phosphor wheels maximize light efficiency, ensuring superior brightness and long-lasting performance. Supporting display sizes ranging from 85" to 160", the UHL3660 ultra-short throw laser projector transforms any space, projecting from just centimeters away. Whether you're delivering engaging presentations in the boardroom, creating an immersive digital gallery experience, or bringing cinematic quality to your home theater, the UHL3660 is designed to deliver stunning visual experiences that captivate any audience. Stunning 4K laser projection Bring your content to life and experience the clarity of 4K UHD resolution, delivering razor-sharp images and vibrant, lifelike detail in every frame. Ultra short throw lens technology From small rooms to expansive spaces, Ricoh's Ultra Short Throw Lens creates large, captivating displays from just centimeters away. Bright, long-lasting laser performance This ultra-short throw projector delivers an impressive 6,500 lumens for bright, vibrant visuals, with up to 40,000 hours of maintenance-free performance. HDR and advanced image adjustments Enhance color depth and contrast with HDR support, and optimize content with preset display modes and advanced image adjustments. Incredible clarity, unbelievably close The UHL3660 transforms any space in to an immersive experience. Vivid 4K UHD projection The UHL3660 instantly creates brilliant, captivating displays in any environment with crystal-clear 4K UHD resolution and a striking 6,500 lumens of brightness. Versatile, flexible performance Adapt to any setting with flexible screen sizes, wireless projection via Miracast®, and seamless compatibility with AV control systems. Featuring OptiBright technology The UHL3660 features OptiBright technology, which maximizes light efficiency and brightness, providing up to 40,000 hours of maintenance-free performance. | |
| Manufacturer | Ricoh Imaging Company, Ltd. |
| Manufacturer Part Number | 432684 |
| Manufacturer Website Address | http://www.ricoh-usa.com |
| Brand Name | PFU |
| Product Model | UHL3660 |
| Product Name | Ultra Short Throw Laser Projector |
| Product Type | DLP Projector |
| Product UPC | 026649326844 |
| Technical Information: | |
| Projection Method | Front |
| High Dynamic Range (HDR) | Yes |
| Display & Graphics: | |
| Native Aspect Ratio | 16:10 |
| Projection Lens: | |
| Throw Type | Ultra Short Throw |
| Minimum Diagonal Image Size | 85" |
| Maximum Diagonal Image Size | 13.33 ft |
| Minimum Projection Distance | 0.39" |
| Maximum Projection Distance | 32.68" |
| Lamp: | |
| Number of Lamps | 1 |
| Lamp Type | Laser/Phosphor |
| Normal Mode Lamp Life | 20000 Hour |
| Economy Mode Lamp Life | 30000 Hour |
| Image: | |
| Lumens | 6500 lm |
| Color Supported | 1.07 Billion Colors |
| Contrast Ratio | 5,000,000:1 |
| Video: | |
| Video Signal Standard | HDTV |
| Output Scan Format | 2160p |
| Interfaces/Ports: | |
| HDMI | Yes |
| USB | Yes |
| Network (RJ-45) | Yes |
| Power Description: | |
| Operating Power Consumption | 460 W |
| Physical Characteristics: | |
| Form Factor | Ceiling Mountable
Floor Mountable Wall Mountable |
| Height | 5.5" |
| Width | 20.9" |
| Depth | 18.5" |
| Weight (Approximate) | 25.35 lb |
| Miscellaneous: | |
| Application/Usage | Presentation
Board Room Home Theater |
| What's in the box |
|
| Warranty: | |
| Warranty | 3 Year |
