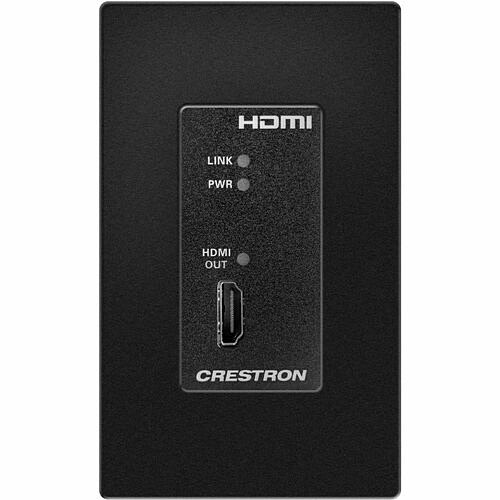

Crestron DM Lite 4K60 4:4:4 Receiver for HDMI Signal Extension over CATx Cable, Wall Plate, Black - 229.66 ft Range - 1 x Network (RJ-45) - 1 x HDMI Out - 1080i, 1080p - WQXGA, 4K, 4K UHD, Full HD, UXGA, WUXGA, QWXGA - 4096 x 2160 - Category 5e - Wal (6511812)
Crestron DM Lite 4K60 4:4:4 Receiver for HDMI Signal Extension over CATx Cable, Wall Plate, Black - 229.66 ft Range - 1 x Network (RJ-45) - 1 x HDMI Out - 1080i, 1080p - WQXGA, 4K, 4K UHD, Full HD, UXGA, WUXGA, QWXGA - 4096 x 2160 - Category 5e - Wal (6511812)
Part Number: 6511812
Condition: New
Availability:
Out of stock
Real time availability
Notify Me
Best of Cleveland Award in the Computers category
Compsource is honored to be named to the Inc. 500|5000 list
Ranked among the top 500 companies
Microsoft authorized Education reseller
HP Qualified Supplies Partner
BBB Accredited Business Since 2000
- Shipping Insurance
- Price Match Guarantee
- Terms of Service Guarantee
- Identity Theft Protection
Product Specifications
Crestron DM Lite 4K60 4:4:4 Receiver for HDMI Signal Extension over CATx Cable, Wall Plate, Black - 229.66 ft Range - 1 x Network (RJ-45) - 1 x HDMI Out - 1080i, 1080p - WQXGA, 4K, 4K UHD, Full HD, UXGA, WUXGA, QWXGA - 4096 x 2160 - Category 5e - Wal (6511812)
HD-RX-4KZ-101-1G-B - RECEIVER FOR HDMI SIGNAL BLACK
Manufacturer Part Number: 6511812
MANUFACTURER NAME: Crestron
MANUFACTURER PART NUMBER: 6511812
UPC EAN CODE:
LANGUAGE: EN
MARKET:US
| General Information: | |
The HD-RX-4KZ-101-1G is a DM Lite® 4K60 4:4:4 wall plate receiver designed to interoperate with a DM Lite® transmitter or DMPS Lite™ switcher for the transmission of an HDMI® signal. A CAT5e or higher twisted pair cable is used to connect the HD-RX-4KZ-101-1G to the DM Lite transmitter or DMPS Lite switcher. For 1080p, WUXGA, and 2K signals, a cable length of up to 230 ft (70 m) is supported. For UHD and 4K signals, a cable length of up to 130 ft (40 m) is supported.1 The HD-RX-4KZ-101-1G is available in black (model HD-RX-4KZ-101-1G-B). Interoperability with a DM Lite Transmitter or DMPS Lite Switcher The DM Lite input port of the HD-RX-4KZ-101-1G must be connected to a DM Lite output port of a DM Lite transmitter or DMPS Lite switcher. Examples of supported DM Lite 4K60 4:4:4 transmitters are the HD-TX-4KZ-101, HD-TX-4KZ-111, HD-TXA-4KZ-101, HD-TXC-4KZ-101, and HD-TXCA-4KZ-101. Supported DMPS Lite switchers are the HD-PS621, HD-PS622, HD-PS401, and HD-PS402. The HD-RX-4KZ-101-1G can be configured and controlled only when it is used with a DMPS Lite switcher. The web interface of the switcher can be used to configure the HD-RX-4KZ-101-1G. In addition, control system programming and .AV Framework™ software support of the HD-RX-4KZ-101-1G is hosted by the switcher. 4K60 4:4:4 and HDR Support The HD-RX-4KZ-101-1G supports video resolutions up to 4K60 with 4:4:4 color sampling. HDR10, HDR10+, and Dolby Vision® video formats are also supported.2 One-Gang Wall Plate Design The HD-RX-4KZ-101-1G is designed to mount into a 1-gang U.S. electrical box or plaster ring (not included). The HD-RX-4KZ-101-1G can receive power from the remote DM Lite transmitter (surface mountable only) or DMPS Lite switcher. Key Features
| |
| Manufacturer | Crestron Electronics, Inc |
| Manufacturer Part Number | 6511812 |
| Manufacturer Website Address | http://www.crestron.com |
| Brand Name | Crestron |
| Product Line | DM Lite |
| Product Model | HD-RX-4KZ-101-1G-B |
| Product Name | DM Lite 4K60 4:4:4 Receiver for HDMI Signal Extension over CATx Cable, Wall Plate, Black |
| Product Type | Video Extender Receiver |
| Technical Information: | |
| Connectivity Technology | Wired |
| Maximum Operating Distance | 229.66 ft |
| Video: | |
| Graphics Modes | WQXGA
4K 4K UHD Full HD UXGA WUXGA QWXGA |
| Supported Video Modes | 1080i
1080p |
| Maximum Video Resolution | 4096 x 2160 |
| Interfaces/Ports: | |
| Network (RJ-45) | Yes |
| HDMI Out | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of HDMI Outputs | 1 |
| Media & Performance: | |
| Twisted Pair Cable Standard | Category 5e |
| Physical Characteristics: | |
| Color Family | Black |
| Product Color | Black |
| Receiver Height | 4.12" |
| Receiver Width | 1.72" |
| Receiver Depth | 2.19" |
| Form Factor | Wall Mountable
Wall Plate Gang Box Mount |
| Receiver Weight (Approximate) | 5.33 oz |
