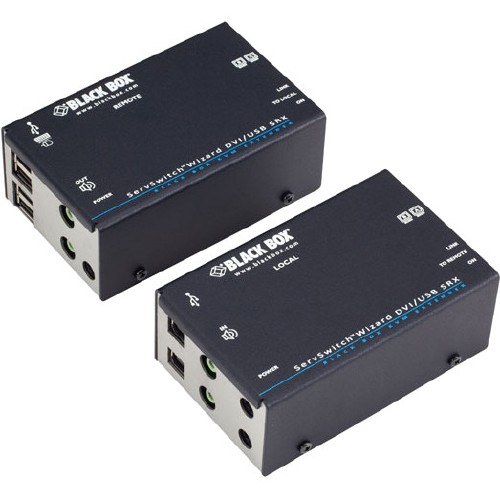

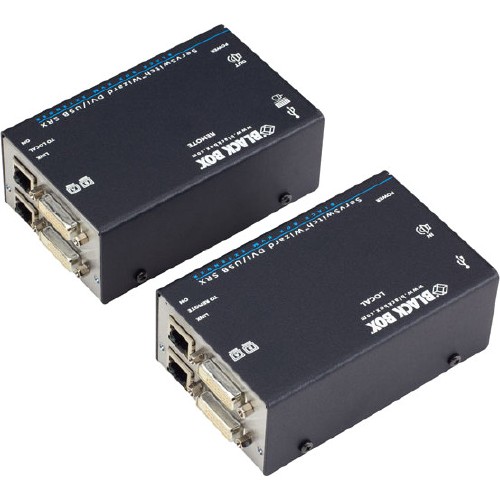

Black Box ServSwitch Wizard SRX DVI-D/USB Extender, Dual-Head - 1 Computer(s) - 1 Local User(s) - 196 ft Range - 3840 x 2400 Maximum Video Resolution - 4 x Network (RJ-45) - 6 x USB - 4 x DVI - 110 V AC, 220 V AC Input Voltage - Rack-mountable (ACU55 (ACU5502A-R3)
Black Box ServSwitch Wizard SRX DVI-D/USB Extender, Dual-Head - 1 Computer(s) - 1 Local User(s) - 196 ft Range - 3840 x 2400 Maximum Video Resolution - 4 x Network (RJ-45) - 6 x USB - 4 x DVI - 110 V AC, 220 V AC Input Voltage - Rack-mountable (ACU55 (ACU5502A-R3)
Part Number: ACU5502A-R3
Condition: New
Availability: 8
Real time availability
Best of Cleveland Award in the Computers category
Compsource is honored to be named to the Inc. 500|5000 list
Ranked among the top 500 companies
Microsoft authorized Education reseller
HP Qualified Supplies Partner
BBB Accredited Business Since 2000
- Shipping Insurance
- Price Match Guarantee
- Terms of Service Guarantee
- Identity Theft Protection
Product Specifications
Black Box ServSwitch Wizard SRX DVI-D/USB Extender, Dual-Head - 1 Computer(s) - 1 Local User(s) - 196 ft Range - 3840 x 2400 Maximum Video Resolution - 4 x Network (RJ-45) - 6 x USB - 4 x DVI - 110 V AC, 220 V AC Input Voltage - Rack-mountable (ACU55 (ACU5502A-R3)
KVM EXTENDER - DUAL-MONITOR DVI-D, USB 2.0, AUDIO, SINGLE-ACCESS, CATX
Manufacturer Part Number: ACU5502A-R3
User Manual PDFKVM EXTENDER DVI-D, DUAL HEAD, USB, W/AUDIO CATX 50M
MANUFACTURER NAME: Black Box
MANUFACTURER PART NUMBER: ACU5502A-R3
UPC EAN CODE: 766796411955
LANGUAGE: EN
MARKET:US
| General Information: | |
Uncompressed Digital Video and Extended Reach Experience pure, uncompressed digital video with full DVI-D transmission over a single CAT6a cable. This ensures zero loss of quality for resolutions up to 1920 × 1200 at 60 Hz or an impressive 3840 × 2400 at 17 Hz. By centralizing equipment, the extender helps reduce heat and noise in critical workspaces such as post-production suites, creating a quieter and more efficient environment. Maximum Extension Distances Engineered for long-distance performance, the extender supports direct cable runs of up to 196 feet (59.7 m) with CAT6a, 180 feet (54.8 m) using CAT6, and 147 feet (44.8 m) with CAT5e. Even when patch panels are part of the setup, it maintains exceptional reach -164 feet (50 m) for CAT6a, 147 feet (44.8 m) for CAT6, and 114 feet (34.7 m) for CAT5e - without compromising signal integrity. USB and DDC EDID Support Beyond video, the extender delivers bi-directional USB data transmission for keyboards, mice, and other Human Interface Devices, including touchscreens, over the same 196-foot CAT6a connection. It also relays extended profile DDC EDID data from the display to the source, ensuring optimal video performance. This feature is essential for high-resolution applications in demanding fields such as medical imaging, CAD, and graphic design. Installation Flexibility Designed for scalability, up to 16 local or remote units can be mounted in an optional rackmount chassis. For added convenience, the local unit can draw power directly from the connected PC if the requirement is under 500 mA; otherwise, an external 5VDC power supply ensures reliable operation | |
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | ACU5502A-R3 |
| Manufacturer Website Address | http://www.blackbox.com |
| Brand Name | Black Box |
| Product Name | Wizard SRX KVM Extender - Dual-Monitor DVI-D, USB 2.0, Audio, Single-Access,CATx |
| Product Type | KVM Console/Extender |
| Product UPC | 766796411955 |
| Technical Information: | |
| Connectivity Technology | Wired |
| Number of Computers Supported | 1 |
| Number of Local Users Supported | 1 |
| Maximum Operating Distance | 196 ft |
| Video: | |
| Maximum Video Resolution | 3840 x 2400 |
| Interfaces/Ports: | |
| Network (RJ-45) | Yes |
| USB | Yes |
| DVI | Yes |
| Number of Network (RJ-45) Ports | 4 |
| Number of USB Ports | 6 |
| Number of DVI Ports | 4 |
| Power Description: | |
| Input Voltage | 110 V AC
220 V AC |
| Physical Characteristics: | |
| Form Factor | Rack-mountable |
| Transmitter Height | 2" |
| Transmitter Width | 3.10" |
| Transmitter Depth | 5" |
| Receiver Height | 2" |
| Receiver Width | 3.10" |
| Receiver Depth | 5" |
| Transmitter Weight (Approximate) | 4 lb |
| Receiver Weight (Approximate) | 4 lb |
| Miscellaneous: | |
| What's in the box |
|
| Environmental Compliance | Restriction of Hazardous Substances (RoHS)
Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | United Kingdom |
| Warranty: | |
| Warranty | 2 Year |
