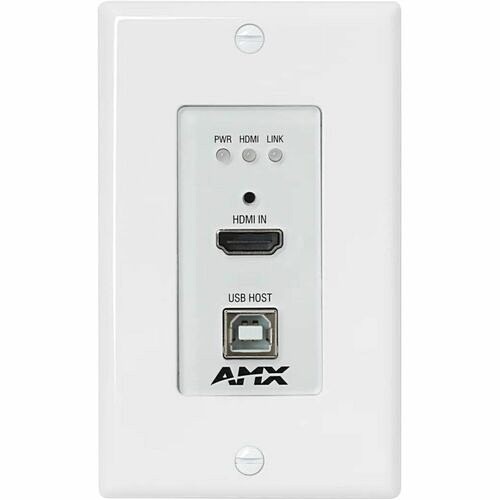

AMX DXLink 4K60 HDMI Wallplate Transmitter - 230 ft Range - 1 x Network (RJ-45) - 1 x Yes - 1 x HDMI In - 1080i - 4K, 4K UHD - 4096 x 2160 - Twisted Pair - Category 6, Category 6a, Category 7 - Video Conferencing Camera, Display, Meeting Room, Classr (AMX-VTT0001W)
AMX DXLink 4K60 HDMI Wallplate Transmitter - 230 ft Range - 1 x Network (RJ-45) - 1 x Yes - 1 x HDMI In - 1080i - 4K, 4K UHD - 4096 x 2160 - Twisted Pair - Category 6, Category 6a, Category 7 - Video Conferencing Camera, Display, Meeting Room, Classr (AMX-VTT0001W)
Part Number: AMX-VTT0001W
Condition: New
Availability:
Out of stock
Real time availability
Notify Me
Best of Cleveland Award in the Computers category
Compsource is honored to be named to the Inc. 500|5000 list
Ranked among the top 500 companies
Microsoft authorized Education reseller
HP Qualified Supplies Partner
BBB Accredited Business Since 2000
- Shipping Insurance
- Price Match Guarantee
- Terms of Service Guarantee
- Identity Theft Protection
Product Specifications
AMX DXLink 4K60 HDMI Wallplate Transmitter - 230 ft Range - 1 x Network (RJ-45) - 1 x Yes - 1 x HDMI In - 1080i - 4K, 4K UHD - 4096 x 2160 - Twisted Pair - Category 6, Category 6a, Category 7 - Video Conferencing Camera, Display, Meeting Room, Classr (AMX-VTT0001W)
DXLINK4K60HDMI WALLPLATE TX White - DXLINK 4K60 HDMI WALLPLATE TX White
Manufacturer Part Number: AMX-VTT0001W
DXLink 4K60 HDMI Wallplate Transmitter sends HDMI signal up to 4K60, HDCP 2.2, along with embedded audio and USB 2.0 up to 70 meters over one shielded Cat6A or Cat7, White.
MANUFACTURER NAME: Harman Pro
MANUFACTURER PART NUMBER: AMX-VTT0001W
UPC EAN CODE: 718878035498
LANGUAGE: EN
MARKET:US
| General Information: | |
The AMX DXLink 4K60 HDMI Wallplate Transmitter is a 4K60 4:4:4 capable distance transport solution with support for HDMI 2.0 and HDCP 2.2. It transmits audio, video, and USB 2.0 over one shielded Cat6A or Cat7 standard twisted pair cable. DXLink 4K60 HDMI Wallplate Transmitters are perfect for sending HDMI and control signals over long distances to remote DXLink 4K60 Receiver Modules or other compatible AMX Receivers such as the DGX DXLink 4K60 Twisted Pair Input Board or DVX 4K60 All-In-One Presentation Switchers. The transmitter's built-in USB Host port can be connected to a laptop to provide access to USB devices such as a room cameras or soundbars, connected to a DXLink receiver near a display. Common Applications Mount the DXLink 4K60 HDMI Wallplate Transmitter in walls, lecterns, or floor boxes to connect guest equipment and send audio and video signals across the meeting room or to a classroom down the hall. Since it can be powered locally or remotely, the wallplate can be installed virtually anywhere. | |
| Manufacturer | Harman International Industries, Inc |
| Manufacturer Part Number | AMX-VTT0001W |
| Manufacturer Website Address | http://www.harman.com |
| Brand Name | AMX |
| Product Line | DXLink |
| Product Name | DXLink 4K60 HDMI Wallplate Transmitter |
| Product Type | Video Extender Transmitter |
| Product UPC | 718878035498 |
| Technical Information: | |
| Connectivity Technology | Wired |
| Maximum Operating Distance | 230 ft |
| Video: | |
| Graphics Modes | 4K
4K UHD |
| Supported Video Modes | 1080i |
| Maximum Video Resolution | 4096 x 2160 |
| Interfaces/Ports: | |
| Network (RJ-45) | Yes |
| HDMI In | Yes |
| USB | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of USB Ports | 1 |
| Number of HDMI Inputs | 1 |
| Media & Performance: | |
| Media Type Supported | Twisted Pair |
| Twisted Pair Cable Standard | Category 6
Category 6a Category 7 |
| Physical Characteristics: | |
| Color Family | White |
| Product Color | White |
| Transmitter Height | 4.23" |
| Transmitter Width | 1.78" |
| Transmitter Depth | 2.01" |
| Form Factor | Wall Plate
Gang Box Mount Wall Mountable |
| Transmitter Weight (Approximate) | 7.04 oz |
| Miscellaneous: | |
| Application/Usage | Video Conferencing Camera
Display Meeting Room Classroom Notebook |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
