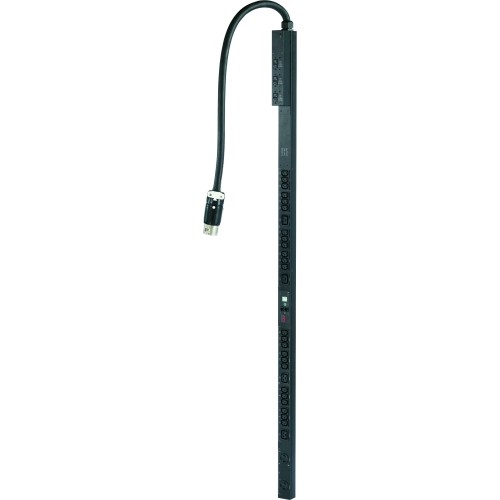

Schneider Electric 30-Outlets PDU - Metered - CS8365 - 4 x IEC 60320 C19, 2 x NEMA L6-30R, 24 x IEC 60320 C13 - 208 V - 14.40 kW - Overload Protection - 3 ft Cord Length - 0U - Rack-mountable (AP7869B)
Schneider Electric 30-Outlets PDU - Metered - CS8365 - 4 x IEC 60320 C19, 2 x NEMA L6-30R, 24 x IEC 60320 C13 - 208 V - 14.40 kW - Overload Protection - 3 ft Cord Length - 0U - Rack-mountable (AP7869B)
Part Number: AP7869B
Condition: New
Availability: 5
Best of Cleveland Award in the Computers category
Compsource is honored to be named to the Inc. 500|5000 list
Ranked among the top 500 companies
Microsoft authorized Education reseller
HP Qualified Supplies Partner
BBB Accredited Business Since 2000
Product Specifications
Schneider Electric 30-Outlets PDU - Metered - CS8365 - 4 x IEC 60320 C19, 2 x NEMA L6-30R, 24 x IEC 60320 C13 - 208 V - 14.40 kW - Overload Protection - 3 ft Cord Length - 0U - Rack-mountable (AP7869B)
RACK PDU METERED 208V 0U 14.4KWPERP - 24XC13 4XC19 2XL6-30R
Manufacturer Part Number: AP7869B
MANUFACTURER NAME: Apc Schneider
MANUFACTURER PART NUMBER: AP7869B
UPC EAN CODE: 731304331544
LANGUAGE: EN
MARKET:US
| General Information: | |
It is a metered rack PDU designed for Zero U vertical mounting. It supports a maximum current of 40A and operates at 208V. The PDU features 24 IEC 60320 C13, 4 IEC 60320 C19, and 2 NEMA L6-30R outlets. It has a load capacity of 14400 VA and includes a cord retention bracket, installation guide, and rack mounting brackets. | |
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | AP7869B |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Brand Name | APC by Schneider Electric |
| Product Name | 30-Outlets PDU |
| Product Type | PDU |
| Product UPC | 731304331544 |
| Technical Information: | |
| PDU Type | Metered |
| Phase | Three Phase |
| Plug/Connector Type | CS8365 |
| Plug/Connector Detail | 1 x CS8365 |
| Receptacle Type | IEC 60320 C19
NEMA L6-30R IEC 60320 C13 |
| Receptacle Detail | 4 x IEC 60320 C19
2 x NEMA L6-30R 24 x IEC 60320 C13 |
| Protection Type | Overload Protection |
| Power Description: | |
| Input Voltage | 208 V |
| Output Voltage | 208 V AC |
| Power Rating (Watt) | 14.40 kW |
| Input Current | 50 A |
| Physical Characteristics: | |
| Mounting Orientation | Vertical |
| Mount Type | Rack-mountable |
| Placement | Side |
| Rack Height | 0U |
| Cord Length | 9.84 ft |
| Height | 70" |
| Width | 2.2" |
| Depth | 3.7" |
| Weight (Approximate) | 22.84 lb |
| Miscellaneous: | |
| What's in the box | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty: | |
| Warranty | 2 Year |
