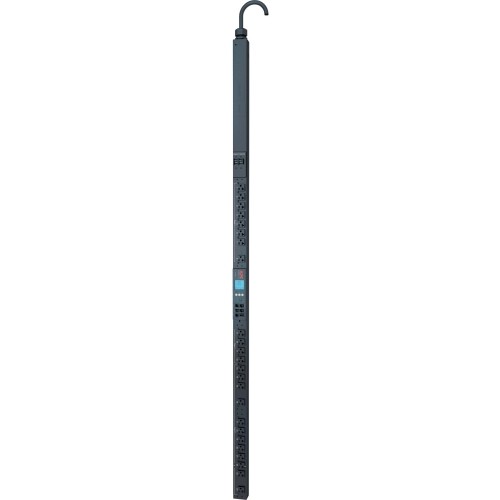

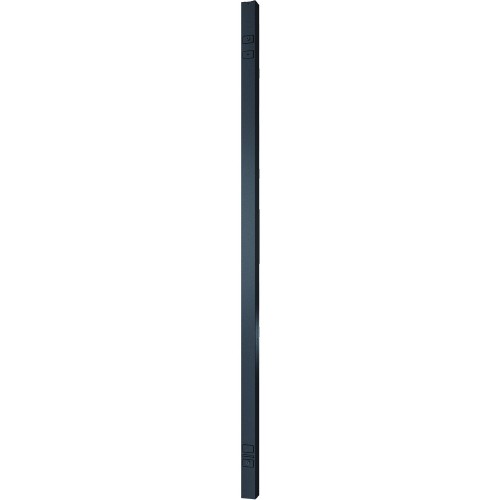

APC by Schneider Electric Metered-by-Outlet with Switching Rack PDU - Metered-by-Outlet - NEMA L5-30P - 24 x NEMA 5-20R - 100 V, 120 V - 2880 W - 9.84 ft Cord Length - 0U - Rack-mountable - Tower (AP8632)
APC by Schneider Electric Metered-by-Outlet with Switching Rack PDU - Metered-by-Outlet - NEMA L5-30P - 24 x NEMA 5-20R - 100 V, 120 V - 2880 W - 9.84 ft Cord Length - 0U - Rack-mountable - Tower (AP8632)
Part Number: AP8632
Condition: New
Availability: 3
Real time availability
Best of Cleveland Award in the Computers category
Compsource is honored to be named to the Inc. 500|5000 list
Ranked among the top 500 companies
Microsoft authorized Education reseller
HP Qualified Supplies Partner
BBB Accredited Business Since 2000
- Shipping Insurance
- Price Match Guarantee
- Terms of Service Guarantee
- Identity Theft Protection
Product Specifications
APC by Schneider Electric Metered-by-Outlet with Switching Rack PDU - Metered-by-Outlet - NEMA L5-30P - 24 x NEMA 5-20R - 100 V, 120 V - 2880 W - 9.84 ft Cord Length - 0U - Rack-mountable - Tower (AP8632)
Rack PDU2G Metered Zero U 30A
Manufacturer Part Number: AP8632
Rack PDU 2G, Metered-by-Outlet with Switching, ZeroU, 30A, 100-120V, (24) 5-20R
MANUFACTURER NAME: Apc Schneider
MANUFACTURER PART NUMBER: AP8632
UPC EAN CODE: 731304307457
LANGUAGE: EN
MARKET:US
| General Information: | |
APC Metered by Outlet with Switching Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and individual outlet power metering. Remote outlet level controls allow power on/off functionality for power recycling to reboot locked-up equipment and to avoid unauthorized use of individual outlets. Power sequencing delays allow users to define the order in which to power up or down attached equipment. Avoid circuit overload during power recovery and extend uptime of critical equipment by prioritizing the load shedding. Current metering provides real-time remote monitoring of connected loads. Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, and locking IEC receptacles. User-defined alarms warn of potential circuit overloads before critical IT failures occur. Users can access, configure, and control Switched rack PDUs through secure Web, SNMP, or Telnet Interfaces and is complimented by Struxureware for Data Centers using Data Center Expert and Data Center Operations with Capacity and Change modules. | |
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | AP8632 |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Brand Name | APC by Schneider Electric |
| Product Name | Metered-by-Outlet with Switching Rack PDU |
| Packaged Quantity | 1 Each |
| Product Type | PDU |
| Product UPC | 731304307457 |
| Technical Information: | |
| PDU Type | Metered-by-Outlet |
| Plug/Connector Type | NEMA L5-30P |
| Receptacle Type | NEMA 5-20R |
| Receptacle Detail | 24 x NEMA 5-20R |
| Protection Type | Overload Protection |
| Power Description: | |
| Input Voltage | 100 V
120 V |
| Output Voltage | 100 V AC
120 V AC |
| Power Rating (VA) | 2880 VA |
| Input Current | 30 A |
| Management: | |
| Management |
|
| Physical Characteristics: | |
| Color Family | Black |
| Product Color | Black |
| Mounting Orientation | Vertical |
| Mount Type | Rack-mountable |
| Form Factor | Tower |
| Placement | Side |
| Rack Height | 0U |
| Cord Length | 9.51 ft |
| Height | 72" |
| Width | 2.2" |
| Depth | 2" |
| Weight (Approximate) | 17.75 lb |
| Miscellaneous: | |
| What's in the box | |
| Country of Origin | India |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS)
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Warranty: | |
| Warranty | 2 Year |
Questions and Answers
Questions and Answers | Ask CompSource |
Shipping / Returns
Shipping
Ground =
$32.50
(EST. Arrival Date between
Fri.Apr.24 - Wed.Apr.29)
Two Day Air = $64.00
(EST. Arrival Date on Fri.Apr.24)
Priority = $137.00
(EST. arrival Date on Thu.Apr.23 in the AM)
U.S Mail Priority (AA,AE,AP only) = $67.00
FedEx International Economy (Canada only) = $124.00
Shipping dates are best estimates based on product location and may vary with holidays.
If product requires trucking, additional fees may apply.
* Some destinations are subject to Applicable State/Duty Taxes
Returns
CompSource realizes that every product may have different return guidelines. Please see the policy below regarding this item.
Please Note: Due to Apc Schneider's Policy this product is not available for return or exchange and must be handled with Apc Schneider Direct.
For support on this product, please contact Apc Schneider. (800)800-4272 www.apc.com
Apc Schneider Company's Information
Click Apc Schneider for all products
Toll Free #: (800)800-4272
Tech Support #: 800-555-2725
Site: www.apc.com
Accessories
Product Reviews
Overall Rating | Write a Review
|
|
Best Sellers
More Best Sellers
Recently Viewed
About Apc Schneider
Learn more about PDUs
What are Smart or Intelligent PDU's;
In the world of PDUS, there are essentially two types: Basic PDUS and Smart /Intelligent PDUS. The
The Smart/Intelligent label can sometimes generate confusion because it's not a term that corresponds to a singular qualifying product feature. There are a collection of advanced features that when available in a PDU model, make that model smart.
It's important to understand that it's not about having a smart PDU with all the advanced features currently available. It's about establishing what your power management needs are. And going from there. The industry has essentially scripted what are the most common power optimization scenarios, and thus have created a set of Smart PDU sub categories that each address an appropriate scenario.
Smart PDUS are broken down into 4 distinct sub categories:
- Metered Inlet PDUS
- Metered Outlet PDUS
- Switched PDUS
- Switched PDUS with Outlet Metering
