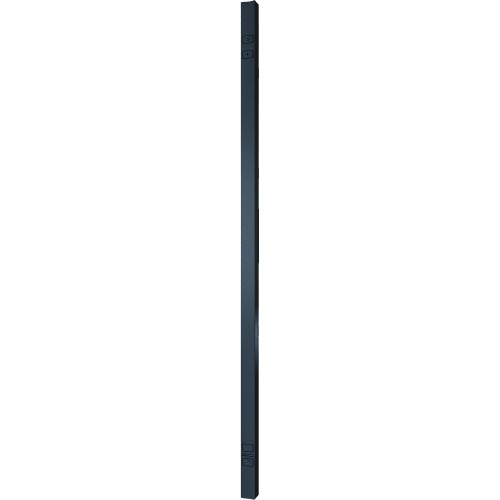

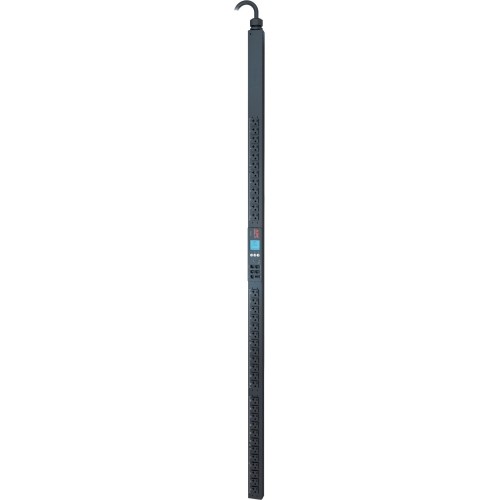

APC by Schneider Electric Metered Rack PDU - Metered - NEMA L21-20P - 36 x NEMA 5-20R - 208 V - 5760 W - 6 ft Cord Length - 0U - Rack-mountable (AP8862)
APC by Schneider Electric Metered Rack PDU - Metered - NEMA L21-20P - 36 x NEMA 5-20R - 208 V - 5760 W - 6 ft Cord Length - 0U - Rack-mountable (AP8862)
Part Number: AP8862
Condition: New
Availability:
Manufacturer Drop Ship
Real time availability
Best of Cleveland Award in the Computers category
Compsource is honored to be named to the Inc. 500|5000 list
Ranked among the top 500 companies
Microsoft authorized Education reseller
HP Qualified Supplies Partner
BBB Accredited Business Since 2000
- Shipping Insurance
- Price Match Guarantee
- Terms of Service Guarantee
- Identity Theft Protection
Product Specifications
APC by Schneider Electric Metered Rack PDU - Metered - NEMA L21-20P - 36 x NEMA 5-20R - 208 V - 5760 W - 6 ft Cord Length - 0U - Rack-mountable (AP8862)
RACK PDU 208V 20A 3-PHASE PERP - 36X5-20R 0U 2G METERED
Manufacturer Part Number: AP8862
FACTORY DIRECT ONLY ITEM Rack PDU 2G, Metered, ZeroU, 20A, 208V 3Ph, (36) 5-20R
MANUFACTURER NAME: Apc Schneider
MANUFACTURER PART NUMBER: AP8862
UPC EAN CODE: 818275592591
LANGUAGE: EN
MARKET:US
| General Information: | |
APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers. Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency. | |
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | AP8862 |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Brand Name | APC by Schneider Electric |
| Product Name | Metered Rack PDU |
| Packaged Quantity | 1 Each |
| Product Type | PDU |
| Product UPC | 818275592591 |
| Technical Information: | |
| PDU Type | Metered |
| Plug/Connector Type | NEMA L21-20P |
| Receptacle Type | NEMA 5-20R |
| Receptacle Detail | 36 x NEMA 5-20R |
| Protection Type | Circuit Protection |
| Power Description: | |
| Input Voltage | 208 V |
| Output Voltage | 120 V AC |
| Power Rating (VA) | 5760 VA |
| Input Current | 20 A |
| Management: | |
| Management |
|
| Physical Characteristics: | |
| Color Family | Black |
| Product Color | Black |
| Mounting Orientation | Vertical |
| Mount Type | Rack-mountable |
| Placement | Side |
| Rack Height | 0U |
| Cord Length | 5.97 ft |
| Height | 70.5" |
| Width | 2.2" |
| Depth | 1.7" |
| Weight (Approximate) | 13.32 lb |
| Miscellaneous: | |
| What's in the box | |
| Country of Origin | India |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty: | |
| Warranty | 2 Year |
Questions and Answers
Questions and Answers | Ask CompSource |
Shipping / Returns
Shipping
Ground =
FREE
(Delivery within 2-7 business days)
Two Day Air = $28.00
(Delivery within 2 business days)
Standard One Day = $49.00
(Delivery within next business day)
Priority = $75.00
(Delivery within next business morning)
U.S Mail Priority (AA,AE,AP only) = $38.50
FedEx International Economy (Canada only) = $88.00
This item is currently available direct from the manufacturer. Normal fulfillment is 7-21 business days, but can vary depending on the item. Refurbished items can take longer depending on availability of the product. Once purchased, you will be on a waiting list. Automated tracking may not be updated on our site for either of these scenarios, please contact a representatives for more information regarding a particular product.
Shipping dates are best estimates based on product location and may vary with holidays.
If product requires trucking, additional fees may apply.
* Some destinations are subject to Applicable State/Duty Taxes
Returns
CompSource realizes that every product may have different return guidelines. Please see the policy below regarding this item.
Please Note: Due to Apc Schneider's Policy this product is not available for return or exchange and must be handled with Apc Schneider Direct.
For support on this product, please contact Apc Schneider. (800)800-4272 www.apc.com
Apc Schneider Company's Information
Click Apc Schneider for all products
Toll Free #: (800)800-4272
Tech Support #: 800-555-2725
Site: www.apc.com
Accessories
Product Reviews
Overall Rating | Write a Review
|
|
Best Sellers
More Best Sellers
Recently Viewed
About Apc Schneider
Learn more about PDUs
What are Smart or Intelligent PDU's;
In the world of PDUS, there are essentially two types: Basic PDUS and Smart /Intelligent PDUS. The
The Smart/Intelligent label can sometimes generate confusion because it's not a term that corresponds to a singular qualifying product feature. There are a collection of advanced features that when available in a PDU model, make that model smart.
It's important to understand that it's not about having a smart PDU with all the advanced features currently available. It's about establishing what your power management needs are. And going from there. The industry has essentially scripted what are the most common power optimization scenarios, and thus have created a set of Smart PDU sub categories that each address an appropriate scenario.
Smart PDUS are broken down into 4 distinct sub categories:
- Metered Inlet PDUS
- Metered Outlet PDUS
- Switched PDUS
- Switched PDUS with Outlet Metering
