Ap8866 - Power Distribution Unit - Rack-Mountable - 208 V 3 Phase - 6 Iec 60320
Ap8866 - Power Distribution Unit - Rack-Mountable - 208 V 3 Phase - 6 Iec 60320
Part Number: AP8866
Condition: New
Availability: 7
Real time availability
Best of Cleveland Award in the Computers category
Compsource is honored to be named to the Inc. 500|5000 list
Ranked among the top 500 companies
Microsoft authorized Education reseller
HP Qualified Supplies Partner
BBB Accredited Business Since 2000
Product Specifications

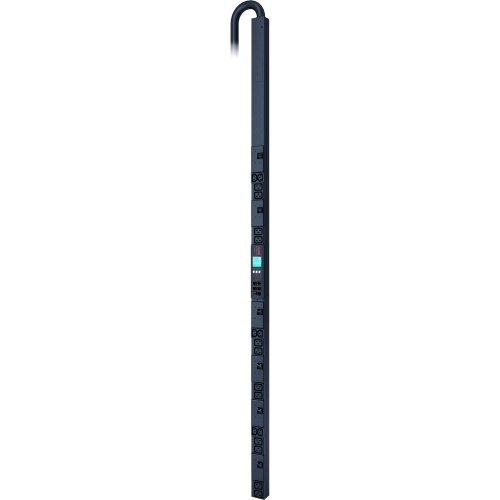

Ap8866 - Power Distribution Unit - Rack-Mountable - 208 V 3 Phase - 6 Iec 60320
AP8866 - POWER DISTRIBUTION UNIT - RACK-MOUNTABLE - 208 V 3 PHASE - 6 IEC 60320
Manufacturer Part Number: AP8866
Rack PDU 2G, Metered, ZeroU, 17.2kW, 208V, (6) C13 & (12) C19
MANUFACTURER NAME: Apc Schneider
MANUFACTURER PART NUMBER: AP8866
UPC EAN CODE: 132017851631
LANGUAGE: EN
MARKET:US
| General Information: | |
APC Metered Rack PDUs distribute reliable rack power distribution via a single input with multiple output receptacles. Real-time remote monitoring and user-defined alarms help prevent potential circuit overloads that can cause accidental power loss to critical equipment. Easily access, configure, and manage this metered PDU from remote locations. A network management interface provides standards-based management via Web, SNMP, and Command Line Interface. This Metered PDU from APC provides (6) IEC 60320 C13, (12) IEC 60320 C19 outlets to supply power to rack equipment. Locking IEC receptacles enable locking power cord compatibility to reduce the probability of accidentally disconnecting cords and dropping loads. Volts, amps, real power (kW), and energy (kWh) data is provided to support energy management. An embedded log memory to reports historic metered data. Display details current, power, and voltage measurements and offers local user access. An environmental monitoring port for external temperature/humidity monitoring is available (sensor sold separatelymodel AP9335T or AP9335TH). Easily mount this vertical PDU in racks or enclosures. It occupies zero U of valuable rack space, which allows space for more equipment in the rack. This vertical PDU does not require additional tools to mount into APC NetShelter Enclosures. Enables a quick recovery from overload events and breakers are ultra low profile. Packaging Includes PDU, Installation guide, Rack mounting brackets, Safety guide, Serial configuration cable. | |
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | AP8866 |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Brand Name | APC by Schneider Electric |
| Product Line | Metered Rack |
| Product Name | Rack PDU 2G, Metered, ZeroU, 17.2kW, 208V, (6) C13 & (12) C19 |
| Packaged Quantity | 1 Each |
| Product Type | PDU |
| Product UPC | 132017851631 |
| Technical Information: | |
| PDU Type | Metered |
| Plug/Connector Type | IEC 60309 60A 3P+PE |
| Receptacle Type | IEC 60320 C13
IEC 60320 C19 |
| Receptacle Detail | 6 x IEC 60320 C13
12 x IEC 60320 C19 |
| Protection Type | Overload Protection |
| Power Description: | |
| Input Voltage | 208 V |
| Output Voltage | 208 V AC |
| Power Rating (VA) | 17.30 kVA |
| Management: | |
| Management | Protocols:
|
| Physical Characteristics: | |
| Color Family | Black |
| Product Color | Black |
| Mounting Orientation | Vertical |
| Mount Type | Rack-mountable |
| Placement | Side |
| Rack Height | 0U |
| Cord Length | 5.97 ft |
| Height | 72" |
| Width | 2.2" |
| Depth | 2" |
| Weight (Approximate) | 20.94 lb |
| Miscellaneous: | |
| What's in the box | |
| Country of Origin | India |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty: | |
| Warranty | 2 Year |
