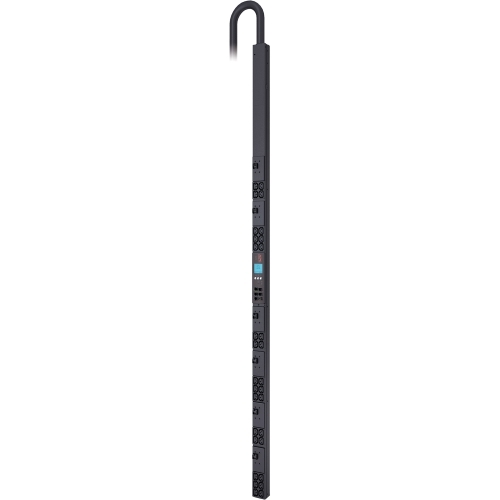

APC by Schneider Electric Rack PDU 2G, Metered, ZeroU, 17.2kW, 208V, (30) C13 - Metered - IEC 60309 60A 3P+PE - 30 x IEC 60320 C13 - 208 V - 17.20 kW - 6 ft Cord Length - 0U - Rack-mountable - Tower (AP8867)
APC by Schneider Electric Rack PDU 2G, Metered, ZeroU, 17.2kW, 208V, (30) C13 - Metered - IEC 60309 60A 3P+PE - 30 x IEC 60320 C13 - 208 V - 17.20 kW - 6 ft Cord Length - 0U - Rack-mountable - Tower (AP8867)
Part Number: AP8867
Condition: New
Availability: 7
Real time availability
Best of Cleveland Award in the Computers category
Compsource is honored to be named to the Inc. 500|5000 list
Ranked among the top 500 companies
Microsoft authorized Education reseller
HP Qualified Supplies Partner
BBB Accredited Business Since 2000
- Shipping Insurance
- Price Match Guarantee
- Terms of Service Guarantee
- Identity Theft Protection
Product Specifications
APC by Schneider Electric Rack PDU 2G, Metered, ZeroU, 17.2kW, 208V, (30) C13 - Metered - IEC 60309 60A 3P+PE - 30 x IEC 60320 C13 - 208 V - 17.20 kW - 6 ft Cord Length - 0U - Rack-mountable - Tower (AP8867)
RACK PDU 2G 208VAC 0U METERED PERP - 17.2KW 30 C13
Manufacturer Part Number: AP8867
FACTORY DIRECT ONLY. Rack PDU 2G, Metered, ZeroU, 17.2KW, 208V, (30) C13
MANUFACTURER NAME: Apc Schneider
MANUFACTURER PART NUMBER: AP8867
UPC EAN CODE: 643749352582
LANGUAGE: EN
MARKET:US
| General Information: | |
The APC Metered Rack PDU distributes reliable power within a rack through a single input and multiple output receptacles The AP8867 offers real-time remote monitoring of connected loads and user-defined alarms to help prevent circuit overloads that can cause accidental power loss to critical equipment The 0U PDU includes a IEC 60309 60A 3P + PE input plug with 1 83m (6ft) cord and (30) IEC 60320 C13 output receptacles The PDU can operate in a maximum ambient air temperature of up to 60°C (140°F) at full load The Network Management Card provides enhanced cybersecurity with secured interfaces and modified password policy The rack PDU integrates with EcoStruxureTM IT through a Network Management Card and can be accessed and configured via Web, SNMP, and Command Line Interface User-interactive LCD interface details current, real power, voltage, and energy measurements for local user access Embedded log memory with historical reporting enables users to meter power usage, optimize energy usage, and plan for capacity The PDU's locking IEC outlets, when used with locking power cords reduce the probability of accidentally disconnecting cords and dropping loads The rack PDU supports daisy-chaining of up to 4 PDUs on a single IP address An environmental monitoring port is available for external temperature/humidity monitoring (sensor sold separately, model AP9335T or AP9335TH) The rack PDU comes with a standard two-year warranty | |
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | AP8867 |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Brand Name | APC by Schneider Electric |
| Product Line | Metered Rack |
| Product Name | Rack PDU 2G, Metered, ZeroU, 17.2kW, 208V, (30) C13 |
| Packaged Quantity | 1 Each |
| Product Type | PDU |
| Product UPC | 643749352582 |
| Technical Information: | |
| PDU Type | Metered |
| Plug/Connector Type | IEC 60309 60A 3P+PE |
| Receptacle Type | IEC 60320 C13 |
| Receptacle Detail | 30 x IEC 60320 C13 |
| Protection Type | Overload Protection |
| Power Description: | |
| Input Voltage | 208 V |
| Output Voltage | 208 V AC |
| Power Rating (VA) | 17.20 kVA |
| Management: | |
| Management | Protocols:
|
| Physical Characteristics: | |
| Color Family | Black |
| Product Color | Black |
| Mounting Orientation | Vertical |
| Mount Type | Rack-mountable |
| Form Factor | Tower |
| Placement | Side |
| Rack Height | 0U |
| Cord Length | 5.97 ft |
| Height | 72" |
| Width | 2.2" |
| Depth | 2" |
| Weight (Approximate) | 22.49 lb |
| Miscellaneous: | |
| What's in the box | |
| Country of Origin | India |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty: | |
| Warranty | 2 Year |
