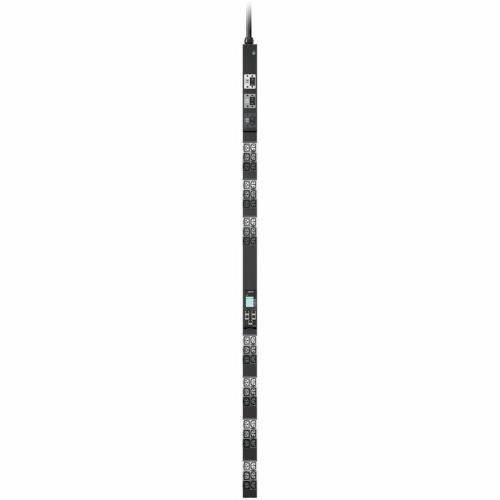

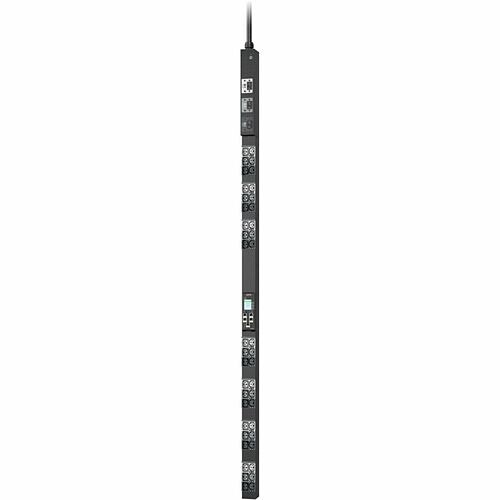

APC NetShelter Rack PDU Advanced Gen 2, Metered, 3Phase, 8.6kW, 208V 30A, L21-30P, 42 Outlet - Metered - NEMA L21-30P - 21 x IEC 60320 C13/C15/C19/C21, 21 x IEC 60320 C13/C15 - 208 V AC - Network (RJ-45) - 9.84 ft Cord Length - 0U - Vertical - Rack-m (APDU11351ME)
APC NetShelter Rack PDU Advanced Gen 2, Metered, 3Phase, 8.6kW, 208V 30A, L21-30P, 42 Outlet - Metered - NEMA L21-30P - 21 x IEC 60320 C13/C15/C19/C21, 21 x IEC 60320 C13/C15 - 208 V AC - Network (RJ-45) - 9.84 ft Cord Length - 0U - Vertical - Rack-m (APDU11351ME)
Part Number: APDU11351ME
Condition: New
Availability: 8
Real time availability
Best of Cleveland Award in the Computers category
Compsource is honored to be named to the Inc. 500|5000 list
Ranked among the top 500 companies
Microsoft authorized Education reseller
HP Qualified Supplies Partner
BBB Accredited Business Since 2000
- Shipping Insurance
- Price Match Guarantee
- Terms of Service Guarantee
- Identity Theft Protection
Product Specifications
APC NetShelter Rack PDU Advanced Gen 2, Metered, 3Phase, 8.6kW, 208V 30A, L21-30P, 42 Outlet - Metered - NEMA L21-30P - 21 x IEC 60320 C13/C15/C19/C21, 21 x IEC 60320 C13/C15 - 208 V AC - Network (RJ-45) - 9.84 ft Cord Length - 0U - Vertical - Rack-m (APDU11351ME)
APC NETSHELTER RACK PDU ADVANCED, METERED, 8.6KW, 3PH, 208V, 30A, L21-30P, 42 OU
Manufacturer Part Number: APDU11351ME
APC NetShelter Rack PDU Advanced Gen 2, Metered, 3Phase, 8.6kW, 208V 30A, L21-30P, 42 Outlet
MANUFACTURER NAME: Apc Schneider
MANUFACTURER PART NUMBER: APDU11351ME
UPC EAN CODE: 731304752752
LANGUAGE: EN
MARKET:US
| General Information: | |
APC NetShelter Rack PDU Advanced (11K Series) provides reliable power distribution to IT equipment within server and/or networking racks. PDU level power metering provides power visibility and notification of potential overload. 4-in-1 combination outlets which can be used as either C13, C19, C15, or C21 outlets provide unparalleled deployment flexibility. Maximum outlet density with 42 outlets in a 2.2 in. (5.6 cm) wide form factor allows for more equipment in the rack. Outlets on the PDUs are color coded and labeled by breaker. Live Swap the NMC3 to minimize downtime in the unlikely event of an NMC power event. The rack PDU integrates with EcoStruxure IT through an NMC3 and can be accessed and configured via web, SNMP, and command line interface (CLI). A 10-foot (3-meter) input cord makes it easier for the PDU to reach the power supply. Rated to operate up to 60 C (140 F) at full load ensures reliability and availability even in today's high-density deployments. One gigabit Ethernet/network port (10/100/1000) enhances and standardizes network connectivity. Two link ports are available to cascade to up to 32 PDUs, with a network port sharing (NPS) feature to enable power sharing between Rack PDUs in the cascading group. Track or bill power usage confidently with 1% metering accuracy. Two environmental sensor ports allow for optional sensors (sold separately) to be connected. For data center deployments across multiple regions, these PDUs have the following certifications: UL, CE, CSA, UKCA, Nemiko, PSE, KC, China RoHS, RCM, and CMIM. This model's input power cord is L21-30P and features 21 count C13/C15/C19/C21 combo outlets and 21 count C13/C15 outlets. | |
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | APDU11351ME |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Brand Name | APC by Schneider Electric |
| Product Line | NetShelter |
| Product Name | NetShelter 42-Outlets PDU |
| Packaged Quantity | 1 |
| Product Type | PDU |
| Product UPC | 731304752752 |
| Technical Information: | |
| PDU Type | Metered |
| Phase | Three Phase |
| Plug/Connector Type | NEMA L21-30P |
| Receptacle Type | IEC 60320 C13/C15/C19/C21
IEC 60320 C13/C15 |
| Receptacle Detail | 21 x IEC 60320 C13/C15/C19/C21
21 x IEC 60320 C13/C15 |
| Load Capacity (Watt) | 8600 W |
| Power Description: | |
| Input Voltage | 208 V AC |
| Output Voltage | 208 V AC |
| Power Source | Power Supply |
| Input Current | 30 A |
| Management: | |
| Management |
|
| Interfaces/Ports: | |
| Network (RJ-45) | Yes |
| Physical Characteristics: | |
| Mounting Orientation | Vertical |
| Mount Type | Rack-mountable |
| Form Factor | Rack |
| Placement | Side |
| Rack Height | 0U |
| Cord Length | 9.84 ft |
| Height | 70.1" |
| Width | 2.2" |
| Depth | 3" |
| Weight (Approximate) | 16.98 lb |
| Environmental Conditions: | |
| Maximum Operating Temperature | 140°F (60°C) |
| Miscellaneous: | |
| Application/Usage | IT Equipment
Server/Network Rack Data Center |
| TAA Compliant | No |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS)
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) China Restriction of Hazardous Substances (China RoHS) |
| Warranty: | |
| Warranty | 3 Year |
