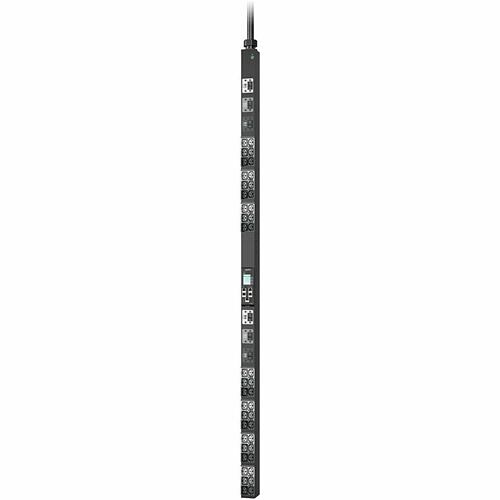

APC NetShelter Rack PDU Advanced Gen 2, Metered, 3Phase, 14.4kW, 208V 50A, CS8365C, 42 Outlet - Metered - CS8365C 50A - 21 x IEC 60320 C13/C15/C19/C21, 21 x IEC 60320 C13/C15 - 208 V AC - Network (RJ-45) - 9.84 ft Cord Length - 0U - Vertical - Rack-m (APDU11451ME)
APC NetShelter Rack PDU Advanced Gen 2, Metered, 3Phase, 14.4kW, 208V 50A, CS8365C, 42 Outlet - Metered - CS8365C 50A - 21 x IEC 60320 C13/C15/C19/C21, 21 x IEC 60320 C13/C15 - 208 V AC - Network (RJ-45) - 9.84 ft Cord Length - 0U - Vertical - Rack-m (APDU11451ME)
Part Number: APDU11451ME
Condition: New
Availability:
Manufacturer Drop Ship
Best of Cleveland Award in the Computers category
Compsource is honored to be named to the Inc. 500|5000 list
Ranked among the top 500 companies
Microsoft authorized Education reseller
HP Qualified Supplies Partner
BBB Accredited Business Since 2000
- Shipping Insurance
- Price Match Guarantee
- Terms of Service Guarantee
- Identity Theft Protection
Product Specifications
APC NetShelter Rack PDU Advanced Gen 2, Metered, 3Phase, 14.4kW, 208V 50A, CS8365C, 42 Outlet - Metered - CS8365C 50A - 21 x IEC 60320 C13/C15/C19/C21, 21 x IEC 60320 C13/C15 - 208 V AC - Network (RJ-45) - 9.84 ft Cord Length - 0U - Vertical - Rack-m (APDU11451ME)
APC MTRD 3Phs 14.4kW 208V 50A
Manufacturer Part Number: APDU11451ME
APC NetShelter Rack PDU Advanced Gen 2, Metered, 3Phase, 14.4kW, 208V 50A, CS8365C, 42 Outlet
MANUFACTURER NAME: Apc Schneider
MANUFACTURER PART NUMBER: APDU11451ME
UPC EAN CODE: 731304752813
LANGUAGE: EN
MARKET:US
| General Information: | |
APC NetShelter Rack PDU Advanced (11K Series) provides reliable power distribution to IT equipment within server and/or networking racks. PDU level power metering provides power visibility and notification of potential overload. 4-in-1 combination outlets which can be used as either C13, C19, C15, or C21 outlets provide unparalleled deployment flexibility. Maximum outlet density with 42 outlets in a 2.2 in. (5.6 cm) wide form factor allows for more equipment in the rack. Outlets on the PDUs are color coded and labeled by breaker. Live Swap the NMC3 to minimize downtime in the unlikely event of an NMC power event. The rack PDU integrates with EcoStruxure IT through an NMC3 and can be accessed and configured via web, SNMP, and command line interface (CLI). A 10-foot (3-meter) input cord makes it easier for the PDU to reach the power supply. Rated to operate up to 60 C (140 F) at full load ensures reliability and availability even in today's high-density deployments. One gigabit Ethernet/network port (10/100/1000) enhances and standardizes network connectivity. Two link ports are available to cascade to up to 32 PDUs, with a network port sharing (NPS) feature to enable power sharing between Rack PDUs in the cascading group. Track or bill power usage confidently with 1% metering accuracy. Two environmental sensor ports allow for optional sensors (sold separately) to be connected. For data center deployments across multiple regions, these PDUs have the following certifications: UL, CE, CSA, UKCA, Nemiko, PSE, KC, China RoHS, RCM, and CMIM. This model's input power cord is CS8365C and features 21 count C13/C15/C19/C21 combo outlets and 21 count C13/C15 outlets. | |
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | APDU11451ME |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Brand Name | APC by Schneider Electric |
| Product Line | NetShelter |
| Product Name | NetShelter 42-Outlets PDU |
| Packaged Quantity | 1 |
| Product Type | PDU |
| Product UPC | 731304752813 |
| Technical Information: | |
| PDU Type | Metered |
| Phase | Three Phase |
| Plug/Connector Type | CS8365C 50A |
| Receptacle Type | IEC 60320 C13/C15/C19/C21
IEC 60320 C13/C15 |
| Receptacle Detail | 21 x IEC 60320 C13/C15/C19/C21
21 x IEC 60320 C13/C15 |
| Load Capacity (Watt) | 14.40 kW |
| Power Description: | |
| Input Voltage | 208 V AC |
| Output Voltage | 208 V AC |
| Power Source | Power Supply |
| Input Current | 50 A |
| Management: | |
| Management |
|
| Interfaces/Ports: | |
| Network (RJ-45) | Yes |
| Physical Characteristics: | |
| Mounting Orientation | Vertical |
| Mount Type | Rack-mountable |
| Form Factor | Rack |
| Placement | Side |
| Rack Height | 0U |
| Cord Length | 9.84 ft |
| Height | 70.1" |
| Width | 2.2" |
| Depth | 3" |
| Weight (Approximate) | 23.37 lb |
| Environmental Conditions: | |
| Maximum Operating Temperature | 140°F (60°C) |
| Miscellaneous: | |
| Application/Usage | IT Equipment
Server/Network Rack Data Center |
| TAA Compliant | No |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS)
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) China Restriction of Hazardous Substances (China RoHS) |
| Warranty: | |
| Warranty | 3 Year |
Questions and Answers
Questions and Answers | Ask CompSource |
Shipping / Returns
Shipping
Ground =
FREE
(Delivery within 2-7 business days)
Two Day Air = $82.00
(Delivery within 2 business days)
Priority = $157.00
(Delivery within next business morning)
U.S Mail Priority (AA,AE,AP only) = $79.67
FedEx International Economy (Canada only) = $142.00
This item is currently available direct from the manufacturer. Normal fulfillment is 7-21 business days, but can vary depending on the item. Refurbished items can take longer depending on availability of the product. Once purchased, you will be on a waiting list. Automated tracking may not be updated on our site for either of these scenarios, please contact a representatives for more information regarding a particular product.
Shipping dates are best estimates based on product location and may vary with holidays.
If product requires trucking, additional fees may apply.
* Some destinations are subject to Applicable State/Duty Taxes
Returns
CompSource realizes that every product may have different return guidelines. Please see the policy below regarding this item.
Please Note: Due to Apc Schneider's Policy this product is not available for return or exchange and must be handled with Apc Schneider Direct.
For support on this product, please contact Apc Schneider. (800)800-4272 www.apc.com
Apc Schneider Company's Information
Click Apc Schneider for all products
Toll Free #: (800)800-4272
Tech Support #: 800-555-2725
Site: www.apc.com
Accessories
Product Reviews
Overall Rating | Write a Review
|
|
Best Sellers
More Best Sellers
Recently Viewed
About Apc Schneider
Learn more about PDUs
What are Smart or Intelligent PDU's;
In the world of PDUS, there are essentially two types: Basic PDUS and Smart /Intelligent PDUS. The
The Smart/Intelligent label can sometimes generate confusion because it's not a term that corresponds to a singular qualifying product feature. There are a collection of advanced features that when available in a PDU model, make that model smart.
It's important to understand that it's not about having a smart PDU with all the advanced features currently available. It's about establishing what your power management needs are. And going from there. The industry has essentially scripted what are the most common power optimization scenarios, and thus have created a set of Smart PDU sub categories that each address an appropriate scenario.
Smart PDUS are broken down into 4 distinct sub categories:
- Metered Inlet PDUS
- Metered Outlet PDUS
- Switched PDUS
- Switched PDUS with Outlet Metering
