APC NetShelter Rack PDU, Switched, 0U, 5.0kW 200V and 208V 30A, (21) C13/C15 and (3) C19/C21 outlets [TAA] - Switched - NEMA L6-30P - 21 x IEC 60320 C13/C15, 3 x IEC 60320 C19/C21 - 208 V AC, 200 V AC - Network (RJ-45) - 10 ft Cord Length - 0U - Vert (APDU9941US)
APC NetShelter Rack PDU, Switched, 0U, 5.0kW 200V and 208V 30A, (21) C13/C15 and (3) C19/C21 outlets [TAA] - Switched - NEMA L6-30P - 21 x IEC 60320 C13/C15, 3 x IEC 60320 C19/C21 - 208 V AC, 200 V AC - Network (RJ-45) - 10 ft Cord Length - 0U - Vert (APDU9941US)
Part Number: APDU9941US
Condition: New
Availability:
Manufacturer Drop Ship
Best of Cleveland Award in the Computers category
Compsource is honored to be named to the Inc. 500|5000 list
Ranked among the top 500 companies
Microsoft authorized Education reseller
HP Qualified Supplies Partner
BBB Accredited Business Since 2000
- Shipping Insurance
- Price Match Guarantee
- Terms of Service Guarantee
- Identity Theft Protection
Product Specifications
APC NetShelter Rack PDU, Switched, 0U, 5.0kW 200V and 208V 30A, (21) C13/C15 and (3) C19/C21 outlets [TAA] - Switched - NEMA L6-30P - 21 x IEC 60320 C13/C15, 3 x IEC 60320 C19/C21 - 208 V AC, 200 V AC - Network (RJ-45) - 10 ft Cord Length - 0U - Vert (APDU9941US)
APC NetShelter Rack PDU TAA
Manufacturer Part Number: APDU9941US
APC Rack PDU 9000 Switched, ZeroU, 30A, 200/208V, (21) C13 & (3) C19 TAA Switched - NEMA L6-30P - 21 x IEC 60320 C13/C15, 3 x IEC 60320 C19/C21 - 208 V AC, 200 V AC - Network (RJ-45) - 10 ft Cord Length - 0U - Vertical/Toolless - Rack-mountable - Rack
MANUFACTURER NAME: Apc Schneider
MANUFACTURER PART NUMBER: APDU9941US
UPC EAN CODE: 731304435341
LANGUAGE: EN
MARKET:US
| General Information: | |

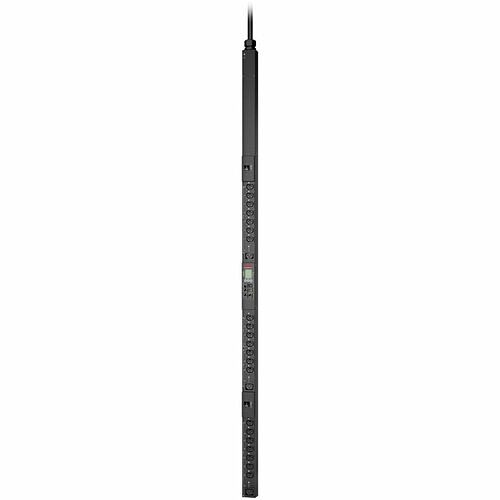

The APC Switched Rack PDU distributes reliable power within a rack through a single input and multiple output receptacles. The APDU9941US offers advanced load management combined with remote on/off switching control of individual outlets for power cycling, delayed power sequencing, and outlet use management. The 0U PDU includes a NEMA L6-30P input plug with 3.05m (10 ft)cord, (21) IEC 60320 C13/C15 and (3) IEC 60320 C19/C21 hybrid outlet receptacles. The hybrid outlets allow 60°C operating temperature at full load, are compatible with standard C14 and C20 power cords, and are future-proofed for new C16 and C21 power cords required for higher temperature rated devices. The Network Management Card provides enhanced cybersecurity with secured interfaces and modified password policy. The rack PDU integrates with EcoStruxure IT through Network Management Card and can be accessed, configured, and managed remotely via Web, SNMP and Command Line Interface. Color user-interactive LCD interface details current, real power, voltage, and energy measurements for local user access. The outlet level control allows power on/off functionality for power recycling/reboot of remote equipment and restricts unauthorized use of individual outlets. The Switched Rack PDU includes a temperature/humidity sensor port, locking IEC outlets when used with locking power cords, low-profile circuit breakers and USB port for local Firmware updates The rack PDU supports daisy-chain of up to 32 PDUs on a single IP address, thereby reducing networking cost. The rack PDU comes with a standard three-year warranty. The switched PDU is compliant with the Trade Agreements Act (TAA) requirements. | |
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | APDU9941US |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Brand Name | APC by Schneider Electric |
| Product Line | NetShelter |
| Product Name | NetShelter 24-Outlets PDU |
| Product Type | PDU |
| Product UPC | 731304435341 |
| Technical Information: | |
| PDU Type | Switched |
| Plug/Connector Type | NEMA L6-30P |
| Receptacle Type | IEC 60320 C13/C15
IEC 60320 C19/C21 |
| Receptacle Detail | 21 x IEC 60320 C13/C15
3 x IEC 60320 C19/C21 |
| Features | LCD Display |
| Load Capacity (Watt) | 5000 W |
| Power Description: | |
| Input Voltage | 208 V AC
200 V AC |
| Output Voltage | 200 V AC
208 V AC |
| Input Current | 30 A |
| Management: | |
| Management |
|
| Remote Outlet Switching | Yes |
| Interfaces/Ports: | |
| Network (RJ-45) | Yes |
| Physical Characteristics: | |
| Mounting Orientation | Vertical/Toolless |
| Mount Type | Rack-mountable |
| Form Factor | Rack |
| Placement | Side |
| Rack Height | 0U |
| Cord Length | 9.84 ft |
| Height | 72" |
| Width | 2.2" |
| Depth | 1.8" |
| Weight (Approximate) | 18.74 lb |
| Environmental Conditions: | |
| Maximum Operating Temperature | 140°F (60°C) |
| Miscellaneous: | |
| Application/Usage | Data Center |
| Country of Origin | United States |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Restriction of Hazardous Substances (RoHS) |
| UL Listed | Yes |
| Warranty: | |
| Warranty | 3 Year |
Questions and Answers
Questions and Answers | Ask CompSource |
Shipping / Returns
Shipping
Ground =
FREE
(Delivery within 2-7 business days)
Two Day Air = $60.00
(Delivery within 2 business days)
Priority = $135.00
(Delivery within next business morning)
U.S Mail Priority (AA,AE,AP only) = $65.00
FedEx International Economy (Canada only) = $120.00
This item is currently available direct from the manufacturer. Normal fulfillment is 7-21 business days, but can vary depending on the item. Refurbished items can take longer depending on availability of the product. Once purchased, you will be on a waiting list. Automated tracking may not be updated on our site for either of these scenarios, please contact a representatives for more information regarding a particular product.
Shipping dates are best estimates based on product location and may vary with holidays.
If product requires trucking, additional fees may apply.
* Some destinations are subject to Applicable State/Duty Taxes
Returns
CompSource realizes that every product may have different return guidelines. Please see the policy below regarding this item.
Please Note: Due to Apc Schneider's Policy this product is not available for return or exchange and must be handled with Apc Schneider Direct.
For support on this product, please contact Apc Schneider. (800)800-4272 www.apc.com
Apc Schneider Company's Information
Click Apc Schneider for all products
Toll Free #: (800)800-4272
Tech Support #: 800-555-2725
Site: www.apc.com
Accessories
Product Reviews
Overall Rating | Write a Review
|
|
Best Sellers
More Best Sellers
Recently Viewed
About Apc Schneider
Learn more about PDUs
What are Smart or Intelligent PDU's;
In the world of PDUS, there are essentially two types: Basic PDUS and Smart /Intelligent PDUS. The
The Smart/Intelligent label can sometimes generate confusion because it's not a term that corresponds to a singular qualifying product feature. There are a collection of advanced features that when available in a PDU model, make that model smart.
It's important to understand that it's not about having a smart PDU with all the advanced features currently available. It's about establishing what your power management needs are. And going from there. The industry has essentially scripted what are the most common power optimization scenarios, and thus have created a set of Smart PDU sub categories that each address an appropriate scenario.
Smart PDUS are broken down into 4 distinct sub categories:
- Metered Inlet PDUS
- Metered Outlet PDUS
- Switched PDUS
- Switched PDUS with Outlet Metering
