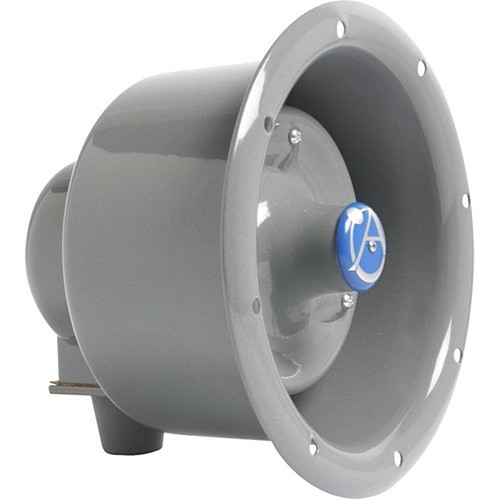

AtlasIED APF-15TU-USA Indoor/Outdoor Wall Mountable, In-wall, Ceiling Mountable, In-ceiling Speaker - 15 W RMS - Gray Baked Epoxy - 600 Hz to 55 kHz - 8 Ohm
AtlasIED APF-15TU-USA Indoor/Outdoor Wall Mountable, In-wall, Ceiling Mountable, In-ceiling Speaker - 15 W RMS - Gray Baked Epoxy - 600 Hz to 55 kHz - 8 Ohm
Part Number: APF-15TU-USA
Condition: New
Availability:
Out of stock
Notify Me
Best of Cleveland Award in the Computers category
Compsource is honored to be named to the Inc. 500|5000 list
Ranked among the top 500 companies
Microsoft authorized Education reseller
HP Qualified Supplies Partner
BBB Accredited Business Since 2000
Product Specifications
AtlasIED APF-15TU-USA Indoor/Outdoor Wall Mountable, In-wall, Ceiling Mountable, In-ceiling Speaker - 15 W RMS - Gray Baked Epoxy - 600 Hz to 55 kHz - 8 Ohm
Flanged Emergency Horn Speaker with 15-Watt 25V/70V Transformer Meets
Manufacturer Part Number: APF-15TU-USA
General Description
The APF-15TU-USA voice control loudspeaker is equipped with a compression driver to provide up to 15 Watts of continuous power handling, superior intelligibility and audio conversion efficiency for maximum sound projection and penetration.
The APF-15TU-USA may be flush mounted or recessed directly into interior/exterior walls or ceilings. Recessed installation may be accomplished by mounting loudspeakers into a 5 1/2" deep opening or recessed enclosure. Units will work with Atlas Sound L20 Series grilles, enclosures and mounting rings (refer to ATS003855). Accessory mounting kits Model MK-2 or FAMT-6 can be used to mount loudspeakers into 8" diameter baffles. The unit includes a built-in 25/70.7V Vari-Tap® transformer featuring a screw-driver adjustable, 7 position watt/impedance selection switch. Magnet assembly is equipped with self-aligning field replaceable diaphragm. Wiring terminals are protected with a vandal-resistant adapter cover for control equipment utilizing cable or conduit. The unit is finished in grey baked epoxy. The APF-15TU-USA meets or exceeds UL Standard 1480 for Fire Protective Loudspeakers and are capable of operating within an ambient temperature range of 70°C (158°F) to -40°C (-40°F). The all-metal, environment-resistant construction and re-entrant acoustic path assure protection against water, humidity, vermin, physical abuse, and corrosion. The unit is also California State Fire Marshal Listed. Additionally, the APF-15TU-USA complies with Buy American Act standards. Features
- 15 Watt High-Efficiency Compression Driver All Metal, Vandal and Environment-Resistant Construction for Indoor/ Outdoor Use Built-In Vari-Tap ® Transformer for Easy Impedance Selection Compatible with Round or Square Decorative Baffles Flange and Recessed Mounting Provisions for Use on Interior/Exterior Walls and Ceilings Recommended for High-Intelligibility Paging, Intercommunication, and Signaling UL Certified, Safety Listed to UL1480 UL Listed for Fire Protective Signalling Systems
The APF-15TU-USA voice control loudspeaker is equipped with a compression driver to provide up to 15 Watts of continuous power handling, superior intelligibility and audio conversion efficiency for maximum sound projection and penetration.
The APF-15TU-USA may be flush mounted or recessed directly into interior/exterior walls or ceilings. Recessed installation may be accomplished by mounting loudspeakers into a 5 1 / 2 " deep opening or recessed enclosure. Units will work with Atlas Sound L20 Series grilles, enclosures and mounting rings (refer to ATS003855). Accessory mounting kits Model MK-2 or FAMT-6 can be used to mount
loudspeakers into 8" diameter baffles.
The unit includes a built-in 25/70.7V Vari-Tap ® transformer featuring a screw-driver adjustable, 7-position watt/impedance selection switch. Magnet assembly is equipped with self-aligning field replaceable diaphragm. Wiring terminals are protected with a vandal-resistant adapter cover for control equipment utilizing cable or conduit.
The unit is finished in grey baked epoxy. The APF-15TU-USA meets or exceeds UL Standard 1480 for Fire Protective Loudspeakers and are capable of operating within an ambient temperature range of 70 ÌC (158 ÌF) to -40 ÌC (-40 ÌF). The all-metal, environment-resistant construction and re-entrant acoustic path assure protection against water, humidity, vermin, physical abuse, and corrosion. The unit is also California State Fire Marshal Listed. Additionally, the APF-15TU-USA complies with Buy American Act standards.
RMS Output Power: 15 W
Minimum Frequency Response: 600 Hz
Maximum Frequency Response: 55 kHz
Sensitivity: 120 dB
Impedance: 8 Ohm
Product Color: Gray Baked Epoxy
Form Factor: Wall Mountable
Form Factor: In-wall
Form Factor: Ceiling Mountable
Form Factor:
MANUFACTURER NAME: Atlas Sound
MANUFACTURER PART NUMBER: APF-15TU-USA
UPC EAN CODE:
LANGUAGE: EN
MARKET:US
| General Information: | |
General Description The APF-15TU-USA may be flush mounted or recessed directly into interior/exterior walls or ceilings. Recessed installation may be accomplished by mounting loudspeakers into a 5 1/2" deep opening or recessed enclosure. Units will work with Atlas Sound L20 Series grilles, enclosures and mounting rings (refer to ATS003855). Accessory mounting kits Model MK-2 or FAMT-6 can be used to mount loudspeakers into 8" diameter baffles. The unit includes a built-in 25/70.7V Vari-Tap® transformer featuring a screw-driver adjustable, 7 position watt/impedance selection switch. Magnet assembly is equipped with self-aligning field replaceable diaphragm. Wiring terminals are protected with a vandal-resistant adapter cover for control equipment utilizing cable or conduit. The unit is finished in grey baked epoxy. The APF-15TU-USA meets or exceeds UL Standard 1480 for Fire Protective Loudspeakers and are capable of operating within an ambient temperature range of 70°C (158°F) to -40°C (-40°F). The all-metal, environment-resistant construction and re-entrant acoustic path assure protection against water, humidity, vermin, physical abuse, and corrosion. The unit is also California State Fire Marshal Listed. Additionally, the APF-15TU-USA complies with Buy American Act standards. Features
The APF-15TU-USA voice control loudspeaker is equipped with a compression driver to provide up to 15 Watts of continuous power handling, superior intelligibility and audio conversion efficiency for maximum sound projection and penetration. The APF-15TU-USA may be flush mounted or recessed directly into interior/exterior walls or ceilings. Recessed installation may be accomplished by mounting loudspeakers into a 5 1 / 2 " deep opening or recessed enclosure. Units will work with Atlas Sound L20 Series grilles, enclosures and mounting rings (refer to ATS003855). Accessory mounting kits Model MK-2 or FAMT-6 can be used to mount loudspeakers into 8" diameter baffles. The unit includes a built-in 25/70.7V Vari-Tap ® transformer featuring a screw-driver adjustable, 7-position watt/impedance selection switch. Magnet assembly is equipped with self-aligning field replaceable diaphragm. Wiring terminals are protected with a vandal-resistant adapter cover for control equipment utilizing cable or conduit. The unit is finished in grey baked epoxy. The APF-15TU-USA meets or exceeds UL Standard 1480 for Fire Protective Loudspeakers and are capable of operating within an ambient temperature range of 70 ?C (158 ?F) to -40 ?C (-40 ?F). The all-metal, environment-resistant construction and re-entrant acoustic path assure protection against water, humidity, vermin, physical abuse, and corrosion. The unit is also California State Fire Marshal Listed. Additionally, the APF-15TU-USA complies with Buy American Act standards. | |
| Manufacturer | AtlasIED |
| Manufacturer Part Number | APF-15TU-USA |
| Manufacturer Website Address | http://www.atlassound.com |
| Brand Name | AtlasIED |
| Product Series | APF |
| Product Model | APF-15TU-USA |
| Product Name | APF-15TU-USA Speaker |
| Product Type | Speaker |
| Technical Information: | |
| RMS Output Power | 15 W |
| Minimum Frequency Response | 600 Hz |
| Maximum Frequency Response | 55 kHz |
| Sensitivity | 120 dB |
| Impedance | 8 Ohm |
| Physical Characteristics: | |
| Product Color | Gray Baked Epoxy |
| Form Factor | Wall Mountable
In-wall Ceiling Mountable In-ceiling |
| Speaker Installation | Indoor/Outdoor |
| Depth | 5.19" |
| Diameter | 5.6" |
| Weight (Approximate) | 2.50 lb |
| Miscellaneous: | |
| Application/Usage | Industrial
Commercial Transportation Recreation |
