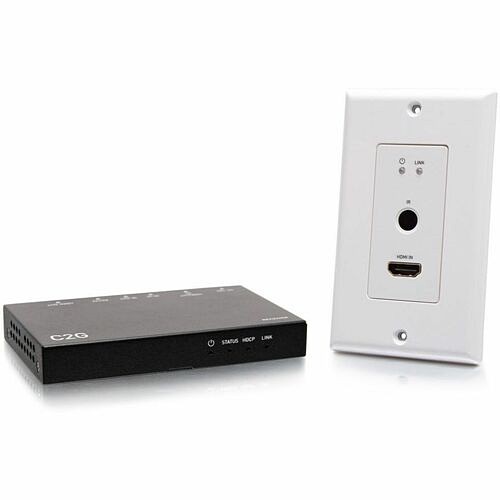

C2G Video Extender Transmitter/Receiver - 1 Output Device - 230 ft Range - 2 x Network (RJ-45) - 1 x HDMI In - 1 x HDMI Out - 4K - Twisted Pair - Category 7 - Commercial - Wall Plate - Yes (C2G30025)
C2G Video Extender Transmitter/Receiver - 1 Output Device - 230 ft Range - 2 x Network (RJ-45) - 1 x HDMI In - 1 x HDMI Out - 4K - Twisted Pair - Category 7 - Commercial - Wall Plate - Yes (C2G30025)
Part Number: C2G30025
Condition: New
Availability: 53
Real time availability
Best of Cleveland Award in the Computers category
Compsource is honored to be named to the Inc. 500|5000 list
Ranked among the top 500 companies
Microsoft authorized Education reseller
HP Qualified Supplies Partner
BBB Accredited Business Since 2000
- Shipping Insurance
- Price Match Guarantee
- Terms of Service Guarantee
- Identity Theft Protection
Product Specifications
C2G Video Extender Transmitter/Receiver - 1 Output Device - 230 ft Range - 2 x Network (RJ-45) - 1 x HDMI In - 1 x HDMI Out - 4K - Twisted Pair - Category 7 - Commercial - Wall Plate - Yes (C2G30025)
4K HDBASET HDMI RS232 WP TX TO BOX RX
Manufacturer Part Number: C2G30025
The HDMI HDBaseT + RS232 and IR over Cat Extender Single Gang Wall Plate Transmitter - 4K 60Hz allows a 4K HDMI source to be extended up to 130ft to a 4K display using a single Cat6a Ethernet cable. This is an ideal solution where HDMI video and audio need to be extended to displays in conference rooms, classrooms, lecture halls, and many other installation needs that are far beyond the length limitations of standard HDMI cabling. This wall plate transmitter and box receiver extend HDMI over a single network patch cable. Extend 4K HDMI up to 115 feet and 1080p up to 230 feet using a Cat5e or Cat6 cable. For longer 4K distances, extend 4K HDMI up to 130 feet using a Cat6a cable. This HDBaseT set is HDCP 2.2 compliant, ensuring that the source and display connection is secure. Multi-channel audio formats are supported, including PCM 2.0/5.1/7.1, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio, and DTS: X. With bi-directional PoC support, one power adapter at either transmitter or receiver side can power both units, so no additional power adapter is required, allowing for greater flexibility in installations. Advanced users can control bi-directional IR and RS232 pass-through.
Connectivity Technology: Wired
Number of Input Devices Supported: 1
Number of Output Devices Supported: 1
Maximum Operating Distance: 230 ft
Graphics Modes: 4K
Network (RJ-45): Yes
HDMI In: Yes
HDMI Out: Yes
Number of Network (RJ-45) Ports: 2
Number of HD
MANUFACTURER NAME: C2g
MANUFACTURER PART NUMBER: C2G30025
UPC EAN CODE: 757120300250
LANGUAGE: EN
MARKET:US
| General Information: | |
The HDMI HDBaseT + RS232 and IR over Cat Extender Single Gang Wall Plate Transmitter - 4K 60Hz allows a 4K HDMI source to be extended up to 130ft to a 4K display using a single Cat6a Ethernet cable. This is an ideal solution where HDMI video and audio need to be extended to displays in conference rooms, classrooms, lecture halls, and many other installation needs that are far beyond the length limitations of standard HDMI cabling. This wall plate transmitter and box receiver extends HDMI over a single network patch cable. Extend 4K HDMI up to 115 feet and 1080p up to 230 feet using a Cat5e or Cat6 cable. For longer 4K distances, extend 4K HDMI up to 130 feet using a Cat6a cable. This HDBaseT set is HDCP 2.2 compliant, ensuring that the source and display connection is secure. Multi-channel audio formats are supported, including PCM 2.0/5.1/7.1, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio, and DTS:X. With bi-directional PoC support, one power adapter at either transmitter or receiver side can power both units, so no additional power adapter is required, allowing for greater flexibility in installations. Advanced users can control bi-directional IR and RS232 pass through. Note: Ensure a solid, reliable connection between the 4K HDMI HDBaseT Extender and critical equipment. We suggest using HDMI Cables with gripping connectors that provide greater port retention than standard HDMI connectors. | |
| Manufacturer | Legrand Group |
| Manufacturer Part Number | C2G30025 |
| Manufacturer Website Address | http://www.legrand.us |
| Brand Name | C2G |
| Product Name | Video Extender Transmitter/Receiver |
| Product Type | Video Extender Transmitter/Receiver |
| Product UPC | 757120300250 |
| Technical Information: | |
| Number of Output Devices Supported | 1 |
| Maximum Operating Distance | 230 ft |
| HDBase-T | Yes |
| Video: | |
| Graphics Modes | 4K |
| Interfaces/Ports: | |
| Network (RJ-45) | Yes |
| HDMI In | Yes |
| HDMI Out | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Number of HDMI Inputs | 1 |
| Number of HDMI Outputs | 1 |
| Media & Performance: | |
| Media Type Supported | Twisted Pair |
| Twisted Pair Cable Standard | Category 7 |
| Physical Characteristics: | |
| Color Family | Black |
| Product Color | Black |
| Transmitter Height | 4.16" |
| Transmitter Width | 1.77" |
| Receiver Height | 0.59" |
| Receiver Width | 4.28" |
| Receiver Depth | 2.53" |
| Form Factor | Wall Plate |
| Receiver Weight (Approximate) | 6.35 oz |
| Miscellaneous: | |
| What's in the box |
|
| Application/Usage | Commercial |
| Country of Origin | China |
| Warranty: | |
| Warranty | 5 Year |
