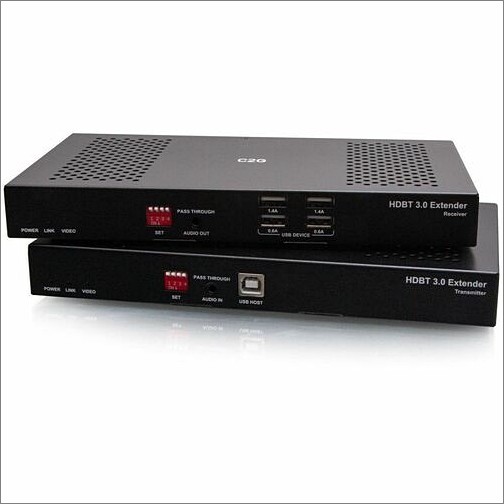

C2G HDMI HDBaseT + USB-B to A + RS232 Over Cat Extender Box TX to Box RX (18Gbps) 4K 60Hz up to 328ft - 1 Input Device - 1 Output Device - 328 ft Range - 2 x Network (RJ-45) - 5 x USB - 1 x HDMI In - 1 x HDMI Out - 1080p - 4K - Twisted Pair - Categor (C2G30055)
C2G HDMI HDBaseT + USB-B to A + RS232 Over Cat Extender Box TX to Box RX (18Gbps) 4K 60Hz up to 328ft - 1 Input Device - 1 Output Device - 328 ft Range - 2 x Network (RJ-45) - 5 x USB - 1 x HDMI In - 1 x HDMI Out - 1080p - 4K - Twisted Pair - Categor (C2G30055)
Part Number: C2G30055
Condition: New
Availability: 206
Real time availability
Best of Cleveland Award in the Computers category
Compsource is honored to be named to the Inc. 500|5000 list
Ranked among the top 500 companies
Microsoft authorized Education reseller
HP Qualified Supplies Partner
BBB Accredited Business Since 2000
- Shipping Insurance
- Price Match Guarantee
- Terms of Service Guarantee
- Identity Theft Protection
Product Specifications
C2G HDMI HDBaseT + USB-B to A + RS232 Over Cat Extender Box TX to Box RX (18Gbps) 4K 60Hz up to 328ft - 1 Input Device - 1 Output Device - 328 ft Range - 2 x Network (RJ-45) - 5 x USB - 1 x HDMI In - 1 x HDMI Out - 1080p - 4K - Twisted Pair - Categor (C2G30055)
4K60HZ HDBASET 3.0 BOX TO BOX
Manufacturer Part Number: C2G30055
The HDMI® HDBaseT + USB-B to A and RS232 over Cat Extender (18Gbps) allows for the extension of a 4K HDMI source up to 328ft to a 4K display without signal loss using a single Cat6a Ethernet cable. This is an ideal solution where USB must also be extended alongside HDMI video and audio to interactive whiteboards and displays or in any installation that goes far beyond the length limitations of standard HDMI and USB cabling. This HDMI HDBaseT 3.0 kit supports 5Play features, including the combined delivery of uncompressed ultra-high-definition digital video and audio, Ethernet, control signals, USB 2.0, and up to 100W of power through a single, 100m/328ft Cat6a LAN cable. The uncompressed digital video fully supports 4K 60Hz (4:4:4) HDMI signals and all audio formats in the HDMI 2.0 specification. The Ethernet pass-through transmits 1GB of data. The featured dip switch allows for RS232 pass-through and the added convenience of field firmware updating. USB 2.0 supports streaming cameras, connected peripherals, and storage devices. With one-way Power over HDBaseT (PoH) support, one power adapter connected to the receiver powers both the transmitter and receiver, so no additional power adapter required, allowing for greater flexibility in installations.
Supports the HDMI 2.0 (18Gbps) specification, with full uncompressed 4K 60Hz (4:4:4) HDMI video and all audio formats through a single, at the full 100m/328ft without signal degradation, over a single Cat6a Ethernet cable.
USB ports support USB 2.0 standa
MANUFACTURER NAME: C2g
MANUFACTURER PART NUMBER: C2G30055
UPC EAN CODE: 757120300557
LANGUAGE: EN
MARKET:US
| General Information: | |
The HDMI® HDBaseT + USB-B to A and RS232 over Cat Extender (18Gbps) allows for the extension of a 4K HDMI source up to 328ft to a 4K display without signal loss using a single Cat6a Ethernet cable. This is an ideal solution where USB must also be extended alongside HDMI video and audio to interactive whiteboards and displays or in any installation that goes far beyond the length limitations of standard HDMI and USB cabling. This HDMI HDBaseT 3.0 kit supports 5Play features, including the combined delivery of uncompressed ultra-high-definition digital video and audio, Ethernet, control signals, USB 2.0, and up to 100W of power through a single, 100m/328ft Cat6a LAN cable. The uncompressed digital video fully supports 4K 60Hz (4:4:4) HDMI signals and all audio formats in the HDMI 2.0 specification. The Ethernet pass-through transmits 1GB of data. The featured dip switch allows for RS232 pass-through and the added convenience of field firmware updating. USB 2.0 supports streaming cameras, connected peripherals, and storage devices. With one-way Power over HDBaseT (PoH) support, one power adapter connected to the receiver powers both the transmitter and receiver, so no additional power adapter required, allowing for greater flexibility in installations. | |
| Manufacturer | Legrand Group |
| Manufacturer Part Number | C2G30055 |
| Manufacturer Website Address | http://www.legrand.us |
| Brand Name | C2G |
| Product Name | HDMI HDBaseT + USB-B to A + RS232 Over Cat Extender Box TX to Box RX (18Gbps) 4K 60Hz up to 328ft |
| Product Type | Video Extender Transmitter/Receiver |
| Product UPC | 757120300557 |
| Technical Information: | |
| Connectivity Technology | Wired |
| Number of Input Devices Supported | 1 |
| Number of Output Devices Supported | 1 |
| Maximum Operating Distance | 328 ft |
| HDBase-T | Yes |
| Video: | |
| Graphics Modes | 4K |
| Supported Video Modes | 1080p |
| Interfaces/Ports: | |
| Network (RJ-45) | Yes |
| HDMI In | Yes |
| HDMI Out | Yes |
| USB | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Number of USB Ports | 5 |
| Number of HDMI Inputs | 1 |
| Number of HDMI Outputs | 1 |
| Media & Performance: | |
| Media Type Supported | Twisted Pair |
| Twisted Pair Cable Standard | Category 6a |
| Physical Characteristics: | |
| Transmitter Height | 1.51" |
| Transmitter Width | 3.50" |
| Transmitter Depth | 4.16" |
| Receiver Height | 0.98" |
| Receiver Width | 8.27" |
| Receiver Depth | 3.55" |
| Transmitter Weight (Approximate) | 10.58 oz |
| Receiver Weight (Approximate) | 1.01 lb |
| Miscellaneous: | |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Warranty: | |
| Warranty | 5 Year |
