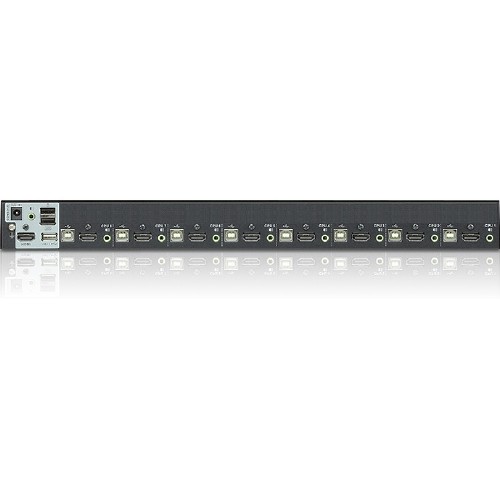

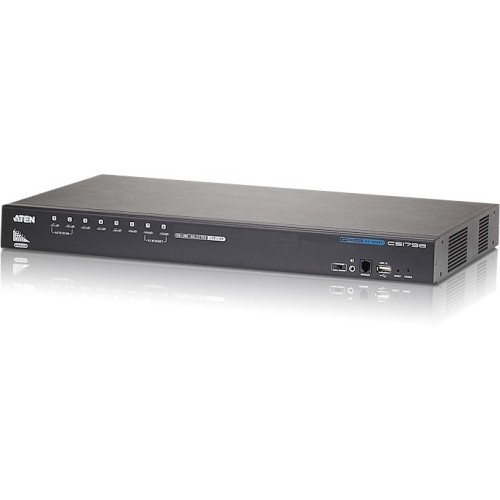

ATEN 8-Port USB HDMI KVM Switch-TAA Compliant - 8 Computer(s) - 1 Local User(s) - 1920 x 1200 - 1 x Network (RJ-45) - 12 x USB - 9 x HDMI - Rack-mountable (CS1798)
ATEN 8-Port USB HDMI KVM Switch-TAA Compliant - 8 Computer(s) - 1 Local User(s) - 1920 x 1200 - 1 x Network (RJ-45) - 12 x USB - 9 x HDMI - Rack-mountable (CS1798)
Part Number: CS1798
Condition: New
Availability: 21
Real time availability
Best of Cleveland Award in the Computers category
Compsource is honored to be named to the Inc. 500|5000 list
Ranked among the top 500 companies
Microsoft authorized Education reseller
HP Qualified Supplies Partner
BBB Accredited Business Since 2000
- Shipping Insurance
- Price Match Guarantee
- Terms of Service Guarantee
- Identity Theft Protection
Product Specifications
ATEN 8-Port USB HDMI KVM Switch-TAA Compliant - 8 Computer(s) - 1 Local User(s) - 1920 x 1200 - 1 x Network (RJ-45) - 12 x USB - 9 x HDMI - Rack-mountable (CS1798)
THE CS1798 8-PORT USB HDMI KVM SWITCH IS A MULTI-PURPOSE APPLIANCE THAT CONSOLID
Manufacturer Part Number: CS1798
Aten Brochure PDF
User Manual PDF8-port HDMI KVM Switch
MANUFACTURER NAME: Aten
MANUFACTURER PART NUMBER: CS1798
UPC EAN CODE: 672792005565
LANGUAGE: EN
MARKET:US
| General Information: | |
The CS1798 8-port USB HDMI KVM Switch is a multi-purpose appliance that consolidates access and control of up to 8 HDMI computers from a single USB keyboard, USB mouse, and monitor console. The CS1798 can be cascaded up to three levels - to control up to 512 computers - all from a single console. In addition the CS1798 features multi-display functionality, which enables the use of standard USB cables to stack up to eight switches in a multi-display installation where each computer is fitted with multiple video cards. It allows you to contrast, analyse and monitor video output in convenient ways, substantially simplifying the working environment. Furthermore, the CS1798 comes with ATEN's on-screen display (OSD) function, which can access any computer connected to the installation, it also offers OSD confi guration backup/restore to save/back up the OSD settings and restore them as needed. The CS1798 provides multimedia keyboard support and is audio enabled. You can listen to the audio output of each computer on two sets of speakers (on a one at- a-time basis). | |
| Manufacturer | ATEN Technology, Inc |
| Manufacturer Part Number | CS1798 |
| Manufacturer Website Address | http://www.aten.com/us/en/ |
| Brand Name | ATEN |
| Product Model | CS1798 |
| Product Name | 8-Port USB HDMI KVM Switch |
| Product Type | KM Switchbox |
| Product UPC | 672792005565 |
| Technical Information: | |
| Number of Computers Supported | 8 |
| Number of Local Users Supported | 1 |
| Video: | |
| Graphic Mode | WUXGA |
| Maximum Video Resolution | 1920 x 1200 |
| Interfaces/Ports: | |
| Network (RJ-45) | Yes |
| USB | Yes |
| HDMI | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of USB Ports | 12 |
| Number of HDMI Ports | 9 |
| Physical Characteristics: | |
| Form Factor | Rack-mountable |
| Height | 4.4" |
| Width | 25.7" |
| Depth | 43.7" |
| Weight (Approximate) | 7.69 lb |
| Miscellaneous: | |
| What's in the box |
|
| Environmentally Friendly | Yes |
| Country of Origin | Taiwan |
