Ec-4b-Blk-Us Ethernet Ctrlr W/ 4 Btns (Black)
Ec-4b-Blk-Us Ethernet Ctrlr W/ 4 Btns (Black)
Part Number: EC-4B-BLK-US
Condition: New
Availability:
Out of stock
Notify Me
Best of Cleveland Award in the Computers category
Compsource is honored to be named to the Inc. 500|5000 list
Ranked among the top 500 companies
Microsoft authorized Education reseller
HP Qualified Supplies Partner
BBB Accredited Business Since 2000
- Shipping Insurance
- Price Match Guarantee
- Terms of Service Guarantee
- Identity Theft Protection
Product Specifications
Ec-4b-Blk-Us Ethernet Ctrlr W/ 4 Btns (Black)
EC-4B-BLK-US Ethernet Ctrlr w/ 4 Btns (Black)
Manufacturer Part Number: EC-4B-BLK-US

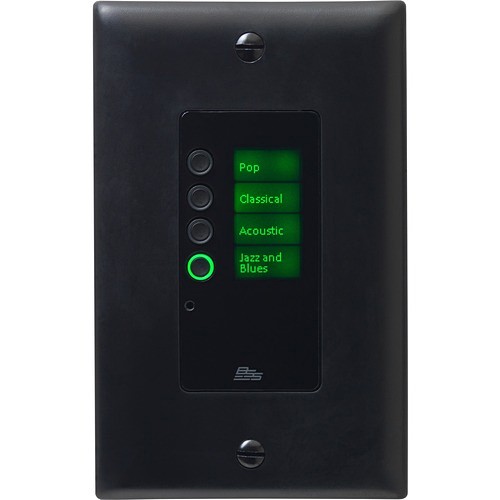

The Soundweb Contrio EC-4B is an Ethernet wall controller for use in Harman HiQnet systems. The EC-4B can control and monitor parameters within BSS Audio Soundweb London and other HiQnet devices, including Crown DCi series amplifiers. The EC-4B is available in black or white, and in single-gang US Decora or single-gang EU form factor. The EC-4B contains a single Ethernet port for configuration, control, monitoring, and power via PoE. The EC-4B is configured via simple drag-and-drop operations within the software application HiQnet Audio Architect. The EC-4B contains four buttons and one LCD screen. The buttons and LCD screen are multi-color backlit, capable of eight different colors with adjustable intensity. The four buttons can be pressed for binary parameter control (e.g. mute), preset recall, or source selection. The LCD screen has a screen resolution of 64x128 pixels, and can display custom text. The EC-4B supports 'sleep' functionality. After a specified amount of time with no user input, the EC-4B can turn off all LEDs. This is useful to avoid distraction in a dimly lit environment. Any user interaction will 'wake up' the controller. The EC-4B can be remotely locked and unlocked via other control systems. The EC-4B can be locally unlocked via a four-digit PIN entry on the buttons.
Product Color: Black
Form Factor: Wall Mountable
MANUFACTURER NAME: Harman Pro
MANUFACTURER PART NUMBER: EC-4B-BLK-US
UPC EAN CODE:
LANGUAGE: EN
MARKET:US
| General Information: | |
The Soundweb Contrio EC-4B is an Ethernet wall controller for use in Harman HiQnet systems. The EC-4B can control and monitor parameters within BSS Audio Soundweb London and other HiQnet devices, including Crown DCi series amplifiers. The EC-4B is available in black or white, and in single-gang US Decora or single-gang EU form factor. The EC-4B contains a single Ethernet port for configuration, control, monitoring, and power via PoE. The EC-4B is configured via simple drag-and-drop operations within the software application HiQnet Audio Architect. The EC-4B contains four buttons and one LCD screen. The buttons and LCD screen are multi-color backlit, capable of eight different colors with adjustable intensity. The four buttons can be pressed for binary parameter control (e.g. mute), preset recall, or source selection. The LCD screen has a screen resolution of 64x128 pixels, and can display custom text. The EC-4B supports 'sleep' functionality. After a specified amount of time with no user input, the EC-4B can turn off all LEDs. This is useful to avoid distraction in a dimly lit environment. Any user interaction will 'wake up' the controller. The EC-4B can be remotely locked and unlocked via other control systems. The EC-4B can be locally unlocked via a four-digit PIN entry on the buttons. | |
| Manufacturer | Harman International Industries, Inc |
| Manufacturer Part Number | EC-4B-BLK-US |
| Manufacturer Website Address | http://www.harman.com |
| Brand Name | BSS |
| Product Line | Soundweb London |
| Product Model | EC-4B |
| Product Name | EC-4B Ethernet Controller with 4 Buttons |
| Product Type | Audio Control Device |
| Physical Characteristics: | |
| Product Color | Black |
| Form Factor | Wall Mountable |
