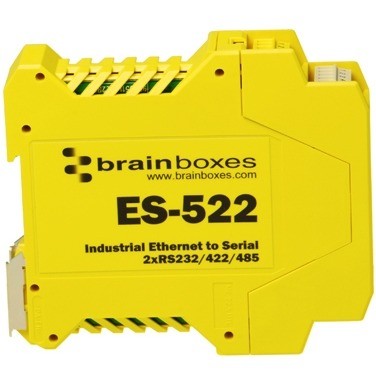

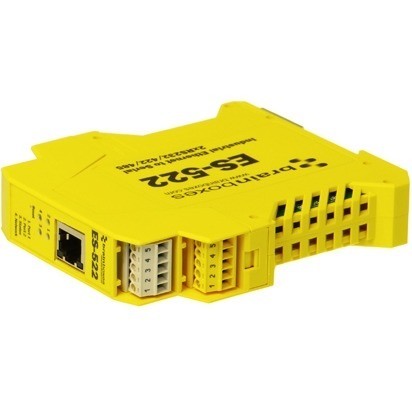

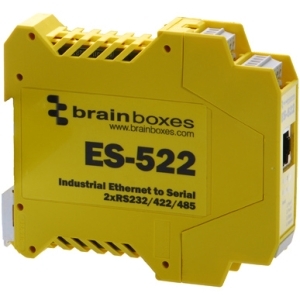

Brainboxes Industrial Ethernet to Serial 2xRS232/422/485 - DIN Rail Mountable - TAA Compliant (ES-522)
Brainboxes Industrial Ethernet to Serial 2xRS232/422/485 - DIN Rail Mountable - TAA Compliant (ES-522)
Part Number: ES-522
Condition: New
Availability:
Out of stock
Real time availability
Notify Me
Best of Cleveland Award in the Computers category
Compsource is honored to be named to the Inc. 500|5000 list
Ranked among the top 500 companies
Microsoft authorized Education reseller
HP Qualified Supplies Partner
BBB Accredited Business Since 2000
- Shipping Insurance
- Price Match Guarantee
- Terms of Service Guarantee
- Identity Theft Protection
Product Specifications
Brainboxes Industrial Ethernet to Serial 2xRS232/422/485 - DIN Rail Mountable - TAA Compliant (ES-522)
RS232/422/485 -30 TO +80 TEMP RANGE
Manufacturer Part Number: ES-522
MANUFACTURER NAME: Brainboxes
MANUFACTURER PART NUMBER: ES-522
UPC EAN CODE: 837324002614
LANGUAGE: EN
MARKET:US
| General Information: | |
Ethernet to Serial Device with 2 Port software selectable as RS232, RS422/485 Full duplex or RS422 Half duplex. ES-522 has removable Screw Terminals Blocks for easy wiring, a slim 'end on' case and integral DIN rail mount. Our Industrial Ethernet to Serial has an operating temperature range of -30 to +80 degrees Celsius and with +5VDC to +30VDC Dual input reverse polarity protected power supply making it perfect for industrial applications. Data transfer rates up to 1,000,000 baud (1 MegaBaud), coupled with 1Mbit/s line drivers deliver uncompromising performance. Baud rates can be standard values such as 9,600, 115,200, 230,000, 921,600 or user definable non standard values. Our Industrial ES range provides simple instant networked serial ports in demanding environments. Serial Port Tunnelling (peer to peer) allows serial cable replacement over any distance, no software required. Suitable to be wired into existing power and network infrastructure or can be used with our PW-600 power supply. | |
| Manufacturer | Brainboxes Limited |
| Manufacturer Part Number | ES-522 |
| Manufacturer Website Address | http://www.brainboxes.com |
| Brand Name | Brainboxes |
| Product Model | ES-522 |
| Product Name | Industrial Ethernet to Serial 2xRS232/422/485 |
| Product Type | Multiport Serial Adapter |
| Product UPC | 837324002614 |
| Interfaces/Ports: | |
| Number of Serial Ports | 2 |
| Physical Characteristics: | |
| Form Factor | DIN Rail Mountable |
| Height | 4.1" |
| Width | 0.9" |
| Thickness | 4.5" |
| Weight (Approximate) | 3.99 oz |
| Miscellaneous: | |
| What's in the box |
|
| TAA Compliant | Yes |
| Country of Origin | United Kingdom |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS)
Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty: | |
| Warranty | Lifetime |
