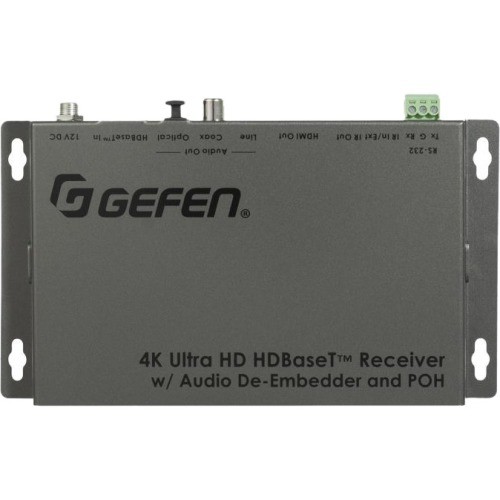

Gefen EXT-UHDA-HBTL-RX Video Consoles/Extenders Gefen 4k Ultra Hd Hdbaset Receiver W/ Audio De-embedder And Poh - 1 Output Device - 230 Ft Range - 1 Extuhdahbtlrx 818263012735

Part Number: EXT-UHDA-HBTL-RX
Condition: New
Availability: Out of stock
Real time availability

Notify Me


Cleveland Award

Best of Cleveland Award in the Computers category

Inc. 500|5000 list

Compsource is honored to be named to the Inc. 500|5000 list

Ranked among the top 500 companies | internet retailer

Ranked among the top 500 companies

Microsoft authorized Education reseller

Microsoft authorized Education reseller

HP Qualified Supplies Partner

HP Qualified Supplies Partner

BBB Accredited Business Since 2000

BBB Accredited Business Since 2000

Regular:$411.81
Save:$148.48 (36%)

Your Price:
$263.33

As low as $24/month
Buy Now, Pay Later



4xbuyerprotection
  • Shipping Insurance
  • Price Match Guarantee
  • Terms of Service Guarantee
  • Identity Theft Protection
FREE with your purchase
Expert Name, Expert Title
Let our Specialist make your purchase easier

Product Specifications



Gefen 4K Ultra HD HDBaseT Receiver w/ Audio De-Embedder and POH - 1 Output Device - 230 ft Range - 1 x Network (RJ-45) - 1 x HDMI Out - 4K - 3840 x 2160 - Twisted Pair - Category 5 (EXT-UHDA-HBTL-RX)

NEW - 4K ULTRA HD HDBASET RECEIVER W/ AUDIO DE-EMBEDDER AND POH

Manufacturer Part Number: EXT-UHDA-HBTL-RX

The Gefen EXT-UHDA-HBTL-RX is a high-performance HDBaseT Receiver that can extend HDMI up to 70 meters (230 feet) at 1080p and 40 meters (130 feet) at 4K, over a single CAT-5e cable. It also de-embeds analog L/R, TOSLINK optical digital, and coaxial digital audio from the video for use with a separate audio system, enhancing the impact of presentations. This Receiver uses Gefen's implementation of the HDBaseT technology with enhanced functionality. It accommodates 10.2 Gbps of data throughput and 300 MHz TMDS Clock frequency, and supports HDMI 2.0 resolutions up to 4K Cinema-DCI (4096 x 2160 to 30 Hz 4:4:4) and 4K Ultra HD (3860 x 2160 to 60 Hz, 4:2:0, or 30 Hz 4:4:4), with HDCP 2.2 or 1.4. Highest performance multichannel digital audio including 7.1 channels of LPCM and HBR (High Bit Rate) digital audio formats, such as Dolby Atmos, Dolby TrueHD, DTS:X, and DTS-HD Master Audio are passed through to the HDMI output.



CPN:NEW - 4K ULTRA HD HDBASET RECEIVER W/ AUDIO DE-EMBEDDER AND POH
MANUFACTURER NAME: Gefen
MANUFACTURER PART NUMBER: EXT-UHDA-HBTL-RX
UPC EAN CODE: 818263012735
LANGUAGE: EN
MARKET:US

General Information:

Extend HDMI with audio breakout up to 70 meters/230 feet, over a single CAT-5

The Gefen EXT-UHDA-HBTL-RX is a high-performance HDBaseT™ Receiver that can extend HDMI up to 70 meters (230 feet) at 1080p and 40 meters (130 feet) at 4K, over a single CAT-5e cable. It also de-embeds analog L/R, TOSLINK® optical digital, and coaxial digital audio from the video for use with a separate audio system, enhancing the impact of presentations. This Receiver uses Gefen's implementation of the HDBaseT™ technology with enhanced functionality. It accommodates 10.2 Gbps of data throughput and 300 MHz TMDS Clock frequency, and supports HDMI 2.0 resolutions up to 4K Cinema-DCI (4096 x 2160 to 30 Hz 4:4:4) and 4K Ultra HD (3860 x 2160 to 60 Hz, 4:2:0, or 30 Hz 4:4:4), with HDCP 2.2 or 1.4. Highest performance multichannel digital audio including 7.1 channels of LPCM and HBR (High Bit Rate) digital audio formats, such as Dolby Atmos®, Dolby® TrueHD, DTS:X™, and DTS-HD Master Audio™ are passed through to the HDMI output. The EXT-UHDA-HBTL-RX also extends RS-232 and 2-way IR when used with a compatible Sender unit, facilitating the control of A/V sources placed near the Sender from the viewing location, and sending commands from the head end to control the display or another device placed near the Receiver unit. It can also send RS-232 commands from a third-party controller placed by the Receiver, for switching, scaler controls, and EDID management of a compatible Sender unit. Bi-Directional HDBaseT™ standard POH (Power Over HDBaseT™) technology can supply power remotely from the Receiver unit to a compatible Sender unit, or it can pass power from a compatible Sender unit to the Receiver, using the same CAT-5 cable that extends the HDMI signal. Only one of the two units will need a power supply. This feature simplifies installation in cases when an electrical outlet may not be available near the source or the display. The Receiver's small, ultra-low-profile enclosure can be securely surface-mounted and conveniently hidden away from sight behind the display. It also accommodates a Gefen locking power supply plug for secure connection.

ManufacturerNice S.p.A.
Manufacturer Part NumberEXT-UHDA-HBTL-RX
Manufacturer Website Addresshttp://www.gefen.com
Brand NameGefen
Product ModelEXT-UHDA-HBTL-RX
Product Name4K Ultra HD HDBaseT Receiver w/ Audio De-Embedder and POH
Product TypeVideo Extender Receiver
  Product UPC818263012735
Technical Information:
Connectivity TechnologyWired
Number of Output Devices Supported1
Maximum Operating Distance230 ft
Video:
Graphics Modes4K
Maximum Video Resolution3840 x 2160
Interfaces/Ports:
Network (RJ-45)Yes
HDMI OutYes
Number of Network (RJ-45) Ports1
Number of HDMI Outputs1
Media & Performance:
Media Type SupportedTwisted Pair
Twisted Pair Cable StandardCategory 5
Physical Characteristics:
Receiver Height0.65"
Receiver Width6"
Receiver Depth4"
Receiver Weight (Approximate)9.60 oz
Miscellaneous:
What's in the box
  • 4K Ultra HD HDBaseT Receiver w/ Audio De-Embedder and POH
  • 1 x 12V 3A Power Supply (EXT-PS12U3IP-LP21-6)
  • 1 x 3-pin Phoenix Plug
  • 2 x Mounting Brackets
  • 1 x Quick Start Guide
Warranty:
Warranty3 Year
