AtlasIED Strategy II FAP82T Ceiling Mountable, Ceiling Mountable Speaker - 70 W RMS - White - 8" Polypropylene Woofer - 0.75" Polyetherimide (PEI) Tweeter - 55 Hz to 20 kHz - 8 Ohm
AtlasIED Strategy II FAP82T Ceiling Mountable, Ceiling Mountable Speaker - 70 W RMS - White - 8" Polypropylene Woofer - 0.75" Polyetherimide (PEI) Tweeter - 55 Hz to 20 kHz - 8 Ohm
Part Number: FAP82T
Condition: New
Availability: Yes
Best of Cleveland Award in the Computers category
Compsource is honored to be named to the Inc. 500|5000 list
Ranked among the top 500 companies
Microsoft authorized Education reseller
HP Qualified Supplies Partner
BBB Accredited Business Since 2000
Product Specifications
AtlasIED Strategy II FAP82T Ceiling Mountable, Ceiling Mountable Speaker - 70 W RMS - White - 8" Polypropylene Woofer - 0.75" Polyetherimide (PEI) Tweeter - 55 Hz to 20 kHz - 8 Ohm
**PACK OF 2** 8" Coaxial In-Ceiling Speaker
Manufacturer Part Number: FAP82T

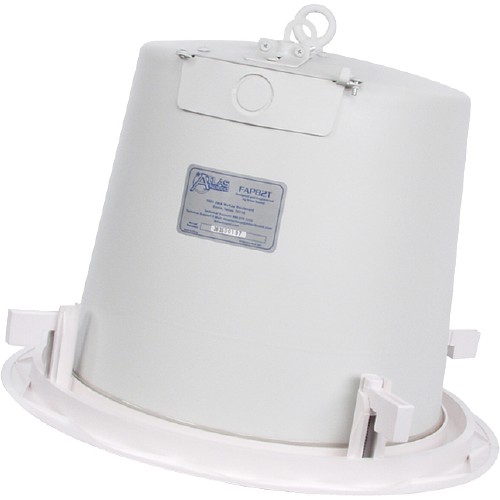

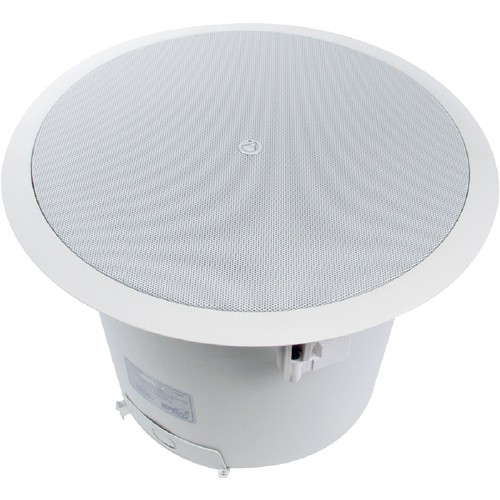

The Atlas Sound FAP82T is a premium performance 70.7/100V tuned & ported 8" coaxial ceiling speaker system perfectly suited for many business music and public address applications -especially applications where high ceilings require loudspeakers with increased efficiency and tighterpattern control.
The FAP82T's 100 degree dispersion angle (in the 2kHz octave band) is perfect for higher ceiling applications where tighter pattern control is required. Tight pattern control (not exceeding 100 degrees) is important for high ceiling applications. Loudspeakers exhibiting wider dispersion than 100 degrees will exceed 6dB of drop off at the edge of the coverage pattern causing excessive SPL variances. Using more of the same wide coverage speaker in a high ceiling application to compensate only worsens the situation as comb filtering from multi-path arrivals will result.
High quality construction 1" voice coil, 8" coaxial cone type driver includes polypropylene cone with a butyl rubber surround. The19mm coaxially mounted tweeter is constructed of PEI. sensitivity of 90dB average means less power may be required to achieve the desired SPL. This loudspeaker is factory assembled to an optimally tuned & ported deep drawn enclosure and includes a specially designed 60 watt low saturation 70.7V/100V transformer. A convenient front mounted selector switch allows tap selection without the need to remove the speaker from the ceiling. This tap selector switch also includes a transformer bypass setting for instances where the 8 ohm FAP82T driver is to be direct coupled with a low impedance amplifier.
RMS Output Power: 70 W
Woofer Driver Size: 8"
Woofer Driver Material: Polypropylene
Tweeter Driver Size: 0.75"
Tweeter Driver Material: Polyetherimide (PEI)
Minimum Frequency Response: 55 Hz
Maximum Frequency Response: 20 kHz
Sensitivity: 90 dB
Impedance:
MANUFACTURER NAME: Atlas Sound
MANUFACTURER PART NUMBER: FAP82T
UPC EAN CODE: 752423124084
LANGUAGE: EN
MARKET:US
| General Information: | |
The Atlas Sound FAP82T is a premium performance 70.7/100V tuned & ported 8" coaxial ceiling speaker system perfectly suited for many business music and public address applications -especially applications where high ceilings require loudspeakers with increased efficiency and tighterpattern control. | |
| Manufacturer | AtlasIED |
| Manufacturer Part Number | FAP82T |
| Manufacturer Website Address | http://www.atlassound.com |
| Brand Name | AtlasIED |
| Product Line | Strategy II |
| Product Model | FAP82T |
| Product Name | 8" Coaxial Speaker System With 70.7V/100V-60W Transformer And 8Ω Bypass |
| Product Type | Speaker |
| Product UPC | 752423124084 |
| Technical Information: | |
| RMS Output Power | 70 W |
| Woofer Driver Size | 8" |
| Woofer Driver Material | Polypropylene |
| Tweeter Driver Size | 0.75" |
| Tweeter Driver Material | Polyetherimide (PEI) |
| Minimum Frequency Response | 55 Hz |
| Maximum Frequency Response | 20 kHz |
| Sensitivity | 90 dB |
| Impedance | 8 Ohm |
| Physical Characteristics: | |
| Product Color | White |
| Form Factor | Ceiling Mountable |
| Height | 12.8" |
| Depth | 12.75" |
| Diameter | 15.8" |
| Miscellaneous: | |
| What's in the box |
|
