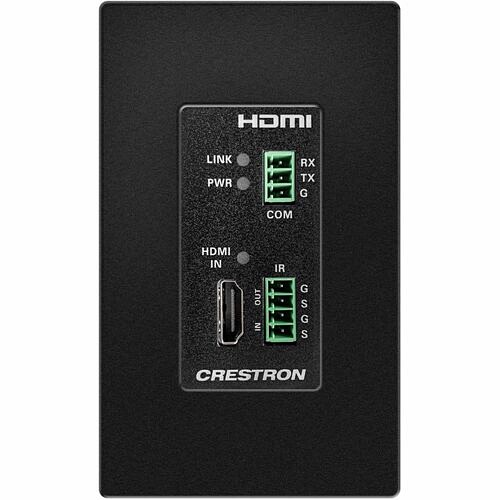

Crestron DM Essentials 4K60 4:4:4 Transmitter for HDMI, RS-232, and IR Signal Extension over CATx Cable, Wall Plate, Black - 229.66 ft Range - 1 x Network (RJ-45) - 1 x HDMI In - 1 - 1 - 1080p, 1080i - WUXGA, 2K, 4K, WQXGA, Full HD, QWXGA, 4K UHD - 4 (HD-TXC-4KZ-101-1G-B)
Crestron DM Essentials 4K60 4:4:4 Transmitter for HDMI, RS-232, and IR Signal Extension over CATx Cable, Wall Plate, Black - 229.66 ft Range - 1 x Network (RJ-45) - 1 x HDMI In - 1 - 1 - 1080p, 1080i - WUXGA, 2K, 4K, WQXGA, Full HD, QWXGA, 4K UHD - 4 (HD-TXC-4KZ-101-1G-B)
Part Number: HD-TXC-4KZ-101-1G-B
Condition: New
Availability:
Out of stock
Notify Me
Best of Cleveland Award in the Computers category
Compsource is honored to be named to the Inc. 500|5000 list
Ranked among the top 500 companies
Microsoft authorized Education reseller
HP Qualified Supplies Partner
BBB Accredited Business Since 2000
- Shipping Insurance
- Price Match Guarantee
- Terms of Service Guarantee
- Identity Theft Protection
Product Specifications
Crestron DM Essentials 4K60 4:4:4 Transmitter for HDMI, RS-232, and IR Signal Extension over CATx Cable, Wall Plate, Black - 229.66 ft Range - 1 x Network (RJ-45) - 1 x HDMI In - 1 - 1 - 1080p, 1080i - WUXGA, 2K, 4K, WQXGA, Full HD, QWXGA, 4K UHD - 4 (HD-TXC-4KZ-101-1G-B)
Essentials 4K60 4:4:4Transmitter forHDMI
Manufacturer Part Number: HD-TXC-4KZ-101-1G-B
MANUFACTURER NAME: Crestron
MANUFACTURER PART NUMBER: HD-TXC-4KZ-101-1G-B
UPC EAN CODE:
LANGUAGE: EN
MARKET:US
| General Information: | |
The HD-TXC-4KZ-101-1G is a DM® Essentials 4K60 4:4:4 wall plate transmitter designed to interoperate with a DM® Essentials receiver or DMPS Essentials switcher for the transmission of HDMI®, RS-232, and IR signals. A CAT5e or higher twisted pair cable (Crestron DM-CBL-8GorDM-CBL-ULTRA sold separately) is needed to connect the HD-TXC-4KZ-101-1G to the DM Essentials receiver or DMPS Essentials switcher. For 1080p, WUXGA, and 2K signals, a cable length of up to 230 ft (70 m) is supported. For UHD and 4K signals, a cable length of up to 130 ft (40 m) is supported.1 The HD-TXC-4KZ-101-1G is available in two models: HD-TXC-4KZ-101-1G-B (black) and HD-TXC-4KZ-101-1G-W (white). Interoperability with a DM Essentials Receiver or DMPS Essentials Switcher The DM Essentials output port of the HD-TXC-4KZ-101-1G must be connected to a DM Essentials input port of a DM Essentials receiver or DMPS Essentials switcher. Examples of supported DM Essentials 4K60 4:4:4 receivers are theHD-RXC-4KZ-101andHD-RXCA-4KZ-101. Supported DMPS Essentials switchers are theHD-PS622,HD-PS621,HD-PS402,HD-PS401, andHD-RX-4K-210-C-E. The HD-TXC-4KZ-101-1G can be configured and controlled only when it is used with a DMPS Essentials switcher. The web interface of the switcher can be used to configure the HD-TXC-4KZ-101-1G. In addition, control system programming and .AV Framework™ software support of the HD-TXC-4KZ-101-1G is hosted by the switcher. 4K60 4:4:4 and HDR Support The HD-TXC-4KZ-101-1G supports video resolutions up to 4K60 with 4:4:4 color sampling. HDR10, HDR10+, and Dolby Vision® video formats are also supported.2 One-Gang Wall Plate Design The HD-TXC-4KZ-101-1G is designed to mount into a 1-gang U.S. electrical box or plaster ring (not included). The HD-TXC-4KZ-101-1G can receive power from the remote DM Essentials receiver (surface mountable only) or DMPS Essentials switcher.3 Key Features
| |
| Manufacturer | Crestron Electronics, Inc |
| Manufacturer Part Number | HD-TXC-4KZ-101-1G-B |
| Manufacturer Website Address | http://www.crestron.com |
| Brand Name | Crestron |
| Product Line | Essentials |
| Product Model | HD-TXC-4KZ-101-1G-B |
| Product Name | DM Essentials 4K60 4:4:4 Transmitter for HDMI, RS-232, and IR Signal Extension over CATx Cable, Wall Plate, Black |
| Product Type | Video Extender Transmitter |
| Technical Information: | |
| Connectivity Technology | Wired |
| Maximum Operating Distance | 229.66 ft |
| Video: | |
| Graphics Modes | WUXGA
2K 4K WQXGA Full HD QWXGA 4K UHD |
| Supported Video Modes | 1080p
1080i |
| Maximum Video Resolution | 4096 x 2160 |
| Interfaces/Ports: | |
| Network (RJ-45) | Yes |
| HDMI In | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of HDMI Inputs | 1 |
| Remote (IR) Input | 1 |
| Remote (IR) Output | 1 |
| Media & Performance: | |
| Twisted Pair Cable Standard | Category 5e |
| Physical Characteristics: | |
| Color Family | Black |
| Product Color | Black |
| Transmitter Height | 4.12" |
| Transmitter Width | 1.72" |
| Transmitter Depth | 2.19" |
| Form Factor | Wall Mountable
Wall Plate Gang Box Mount |
| Transmitter Weight (Approximate) | 5.54 oz |
