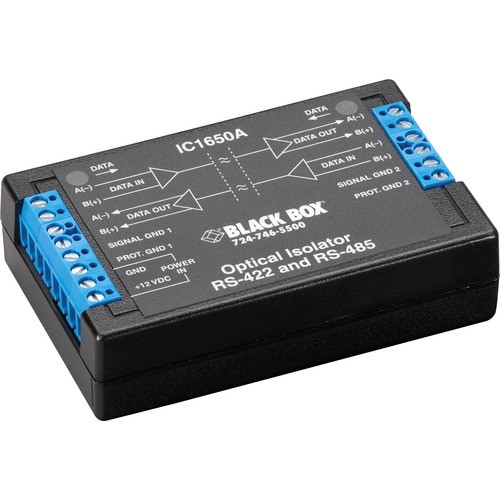

Black Box RS-422 and RS-485 Optical Isolator/Repeater (IC1650A-US)
Black Box RS-422 and RS-485 Optical Isolator/Repeater (IC1650A-US)
Part Number: IC1650A-US
Condition: New
Availability:
Out of stock
Real time availability
Notify Me
Best of Cleveland Award in the Computers category
Compsource is honored to be named to the Inc. 500|5000 list
Ranked among the top 500 companies
Microsoft authorized Education reseller
HP Qualified Supplies Partner
BBB Accredited Business Since 2000
- Shipping Insurance
- Price Match Guarantee
- Terms of Service Guarantee
- Identity Theft Protection
Product Specifications
Black Box RS-422 and RS-485 Optical Isolator/Repeater (IC1650A-US)
ASYNC RS422/485 REPEATER (2) TE - RMINAL BLOCK
Manufacturer Part Number: IC1650A-US
MANUFACTURER NAME: Black Box
MANUFACTURER PART NUMBER: IC1650A-US
UPC EAN CODE: 013269153684
LANGUAGE: EN
MARKET:US
| General Information: | |
This compact device links RS-422 4-wire and RS-485 2-wire systems while using optical isolation to protect equipment and lines from damaging ground loops. The BLACK BOX® RS-422 and RS-485 Optical Isolator/Repeater enable you to connect equipment meant for a point-to-point RS-422 4-wire interface to an RS-485 2-wire multidrop system. It can be used to optically isolate one piece of RS-485 equipment from the rest of an RS-485 system or one local group of RS-485 equipment from another, or it can be used as a repeater to expand an existing RS-485 system beyond the standard's 32-node limitation. All data lines, as well as power and ground, are isolated from one side of the unit to the other. The RS-422 and RS-485 Optical Isolator/Repeater use terminal blocks on each side of the device. It supports Transmit Data A and B, Receive Data A and B, Protective Ground, and Signal Ground. The RS-422 and RS-485 Optical Isolator/ Repeater operate in either 2-wire half-duplex systems or in 4-wire half-duplex or full-duplex systems. By connecting one side of the unit as a 2-wire device and one side as a 4-wire device, equipment meant for a point-to-point RS-422 interface can be connected directly to an RS-485 2-wire multidrop system. You get the speed with the RS-422 and RS-485 Optical Isolator/Repeater, too. It features 12 user-selectable data rates, from 300 bps up to 460.8 kbps. | |
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | IC1650A-US |
| Manufacturer Website Address | http://www.blackbox.com |
| Brand Name | Black Box |
| Product Name | Async RS422/485 Repeater - (2) Terminal Block |
| Product Type | Signal Repeater |
| Product UPC | 013269153684 |
| Power Description: | |
| Input Voltage | 14 V DC |
| Physical Characteristics: | |
| Height | 1" |
| Width | 2.4" |
| Depth | 3.8" |
| Miscellaneous: | |
| Country of Origin | United States |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty: | |
| Warranty | 1 Year |
| Additional Warranty Information | 1 Year Double Diamond™ Warranty (Standard) |
