Toa MM-700F-AM A/V Receivers & Amplifiers Toa Mm-700f-am Preamplifier - 4 Channel - Aluminum Hairline, Black - 0.5% Thd - 20 Hz To 20 Khz - 9  Mm700fam

Part Number: MM-700F-AM
Condition: New
Availability: Out of stock
Notify Me


Cleveland Award

Best of Cleveland Award in the Computers category

Inc. 500|5000 list

Compsource is honored to be named to the Inc. 500|5000 list

Ranked among the top 500 companies | internet retailer

Ranked among the top 500 companies

Microsoft authorized Education reseller

Microsoft authorized Education reseller

HP Qualified Supplies Partner

HP Qualified Supplies Partner

BBB Accredited Business Since 2000

BBB Accredited Business Since 2000

Regular:$1,967.00
Save:$490.00 (25%)

Your Price:
$1,477.00

As low as $135/month
Buy Now, Pay Later




Square Trade
4xbuyerprotection
  • Shipping Insurance
  • Price Match Guarantee
  • Terms of Service Guarantee
  • Identity Theft Protection
FREE with your purchase
Expert Name, Expert Title
Let our Specialist make your purchase easier

Product Specifications

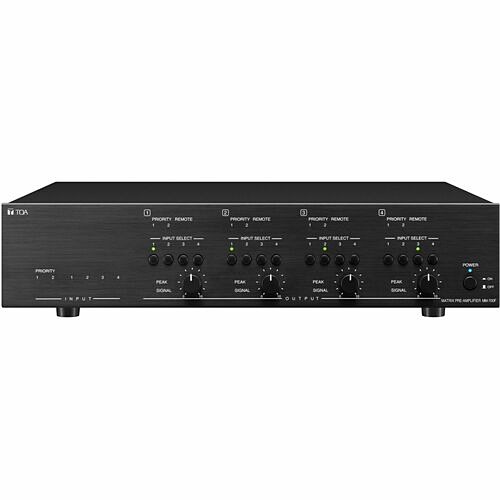

TOA MM-700F-AM Preamplifier - 4 Channel - Aluminum Hairline, Black - 0.5% THD - 20 Hz to 20 kHz - 9 W - Ethernet

4-Channel Matrix Mixer w/ DSP and Ethernet Access

Manufacturer Part Number: MM-700F-AM

The MM-700F is a 6-input matrix mixer: 4 of its inputs are configured for BGM or other line-level sources, while two balanced inputs are designated for priority sources, such as paging mics or message players. A totally digital product sporting 24Bit/48kHz digital sound quality, its simple user-interface belies its advanced inner workings. The only controls any user needs to access are the front panel source select buttons and four output level (zone) controls. All other controls are placed on the rear panel to prevent unauthorized tampering. An optional wall control (WP-700-AM) can be connected via a single shield CAT5 cable to each of the four output channels, allowing access to volume and source select.



CPN:4-Channel Matrix Mixer w/ DSP and Ethernet Access
MANUFACTURER NAME: Toa
MANUFACTURER PART NUMBER: MM-700F-AM
UPC EAN CODE:
LANGUAGE: EN
MARKET:US

General Information:

The MM-700F matrix pre amplifier performs matrix controls from 4 LINE plus 2 MIC/LINE level inputs to 4 output channels. Each output channel features 64 DSP preset selections for general equalizations, crossover for sub-woofer, or variety of TOA speakers' EQ settings. 2 MIC/LINE inputs have 1st and 2nd priority levels which can override at assigned output channels automatically or manually. If connected with optional WP-700-AM wall remotes via CAT-5 cable, audio source selection and volume controls can be done remotely. Those all assignments and setups can be done by dip switches on its rear panel without a PC. This unit fits a wide range of applications that require multi-zone paging and/or background music distribution at restaurants, pubs, retail stores, factories, etc.

ManufacturerTOA Corporation
Manufacturer Part NumberMM-700F-AM
Manufacturer Website Addresshttp://www.toaelectronics.com
Brand NameTOA
Product ModelMM-700F-AM
Product NameMatrix Pre Amplifier
Product TypePreamplifier
Technical Information:
Minimum Frequency Response20 Hz
Maximum Frequency Response20 kHz
Total Harmonic Distortion (THD)0.5%
Audio:
Audio Channels4
Network & Communication:
EthernetYes
Power Description:
Input Voltage120 V AC
230 V AC
Operating Power Consumption9 W
Physical Characteristics:
Color FamilyDual Color
Product ColorAluminum Hairline
Black
Height4.2"
Width16.5"
Depth13.8"
Weight (Approximate)12.57 lb
Miscellaneous:
What's in the box
  • Matrix Pre Amplifier
  • 1 x Power Cord
  • 1 x Removable Terminal Plug
  • 2 x Rack Mounting Bracket
  • Pins
  • 4 x Bracket Mounting Screw
  • 1 x User's Manual

Date Inserted: Wednesday June 11, 2025

This product was last updated on Tuesday April 21, 2026

All products are brand new and factory sealed unless otherwise stated.
 *** Disclaimer- Information is supplied by the Manufacturer. The image, including color, may differ from actual product appearance. CompSource, Inc. is not responsible for data. ***
