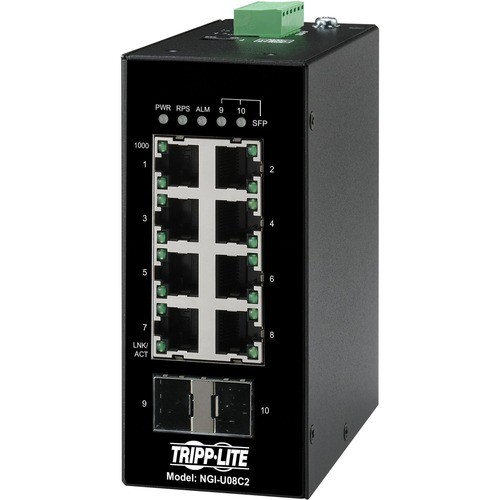

Eaton Tripp Lite Series 8-Port Unmanaged Industrial Gigabit Ethernet Switch - 10/100/1000 Mbps, 2 GbE SFP Slots, -40° to 75°C, DIN Mount, TAA - 8 Ports - Gigabit Ethernet - 10/100/1000Base-T, 1000Base-X - TAA Compliant - 2 Layer Supported - M (NGI-U08C2)
Eaton Tripp Lite Series 8-Port Unmanaged Industrial Gigabit Ethernet Switch - 10/100/1000 Mbps, 2 GbE SFP Slots, -40° to 75°C, DIN Mount, TAA - 8 Ports - Gigabit Ethernet - 10/100/1000Base-T, 1000Base-X - TAA Compliant - 2 Layer Supported - M (NGI-U08C2)
Part Number: NGI-U08C2
Condition: New
Availability:
Out of stock
Real time availability
Notify Me
Best of Cleveland Award in the Computers category
Compsource is honored to be named to the Inc. 500|5000 list
Ranked among the top 500 companies
Microsoft authorized Education reseller
HP Qualified Supplies Partner
BBB Accredited Business Since 2000
- Shipping Insurance
- Price Match Guarantee
- Terms of Service Guarantee
- Identity Theft Protection
Also Available
Product Specifications
Eaton Tripp Lite Series 8-Port Unmanaged Industrial Gigabit Ethernet Switch - 10/100/1000 Mbps, 2 GbE SFP Slots, -40° to 75°C, DIN Mount, TAA - 8 Ports - Gigabit Ethernet - 10/100/1000Base-T, 1000Base-X - TAA Compliant - 2 Layer Supported - M (NGI-U08C2)
EATON TRIPP LITE SERIES 8-PORT UNMANAGED INDUSTRIAL GIGABIT ETHERNET SWITCH - 10
Manufacturer Part Number: NGI-U08C2
8-Port Unmanaged Gigabit Ethernet Switch Connects Your Devices to a LAN
This space-saving Tripp Lite switch transmits data over a Gigabit Ethernet network. Eight auto-negotiating 10/100/1000 Mbps ports send data only to the devices designated to receive it, which improves the efficiency and potential throughput of the network. The NGI-U08C2 also features two GbE SFP slots for uplinking data to other switches via optical fiber or copper. Ruggedized Metal Housing Built to Last in Harsh Environments
The compact NGI-U08C2 adds 10/100/1000 Mbps Gigabit Ethernet capacity to your industrial and commercial applications, such as factory floors, warehouse operations and other environments with space constraints and wide temperature ranges. The industrial-grade high-strength case withstands vibration, shock and free fall. It can also operate in extreme temperatures ranging from -40 degrees to 167 degrees Fahrenheit. Unmanaged Switch Requires Little to No Configuration
Quickly connect your network devices with little to no configuration. LEDs indicate when the switch is powered on and which Ethernet ports are showing activity. The NGI-U08C2 supports MAC address auto-learning and auto-aging for efficient routing, as well as automatic MDI/MDI-X crossover detection for plug-and-play functionality. IEEE 802.3x flow control allows smooth transmission of large files. DIP switch supports an alarm relay output function in which you can connect an alarm light or buzzer. Pre-Installed DIN Rail Clip Allows for Convenient Installation
The device may be DIN mounted using the pre-installed rail clip, which mounts firmly to any standard 35 mm DIN rail. Providing seamless operation in the event of power dips or failures, the switch features redundant 6-pin 24-48VDC terminal block power inputs to help prevent unnecessary downtime. When used with two power sources, the switch also supports alarm relay contacts that you can wire to your existing alarm circuit to notify you instantly when a power disruption occurs. Device power must be supplied by LPS (Limited Power Source) circuit. TAA-Compliant for GSA Schedule Purchases
The NGI-U08C2 is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
Total Number of Network Ports: 8
Network (RJ-45): Yes
Uplink Port: Yes
Modular: Yes
Port/Expansion Slot Details: 8 x Gigabit Ethernet Network
Port/Expansion Slot Details: 2 x Gigabit Ethernet Expansion Slot
Media Type Supported: Twisted Pair
Media Type Su
MANUFACTURER NAME: Eaton
MANUFACTURER PART NUMBER: NGI-U08C2
UPC EAN CODE: 037332265906
LANGUAGE: EN
MARKET:US
| General Information: | |
8-Port Unmanaged Gigabit Ethernet Switch Connects Your Devices to a LAN Ruggedized Metal Housing Built to Last in Harsh Environments Unmanaged Switch Requires Little to No Configuration Pre-Installed DIN Rail Clip Allows for Convenient Installation TAA-Compliant for GSA Schedule Purchases | |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | NGI-U08C2 |
| Manufacturer Website Address | http://www.eaton.com |
| Brand Name | Tripp Lite series |
| Product Model | NGI-U08C2 |
| Product Name | NGI-U08C2 Ethernet Switch |
| Product Type | Ethernet Switch |
| Product UPC | 037332265906 |
| Interfaces/Ports: | |
| Total Number of Network Ports | 8 |
| Network (RJ-45) | Yes |
| Uplink Port | Yes |
| Modular | Yes |
| Port/Expansion Slot Details | 8 x Gigabit Ethernet Network
2 x Gigabit Ethernet Expansion Slot |
| Media & Performance: | |
| Media Type Supported | Twisted Pair
Optical Fiber |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T
1000Base-X |
| I/O Expansions: | |
| Total Number of Expansion Slots | 2 |
| Expansion Slot Type | SFP (mini-GBIC) |
| Number of SFP Slots | 2 |
| Network & Communication: | |
| Layer Supported | 2 |
| Networking Standards | IEEE 802.3
IEEE 802.3u IEEE 802.3ab IEEE 802.3x IEEE 802.3z IEEE 802.1p |
| Management & Protocols: | |
| Manageable | No |
| Power Description: | |
| Power Consumption | 11 W |
| Physical Characteristics: | |
| Product Material | Metal |
| Form Factor | DIN Rail Mountable |
| Height | 3.9" |
| Width | 2" |
| Depth | 4.6" |
| Weight (Approximate) | 1.23 lb |
| Miscellaneous: | |
| What's in the box |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Restriction of Hazardous Substances (RoHS) |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Warranty: | |
| Warranty | 3 Year |
