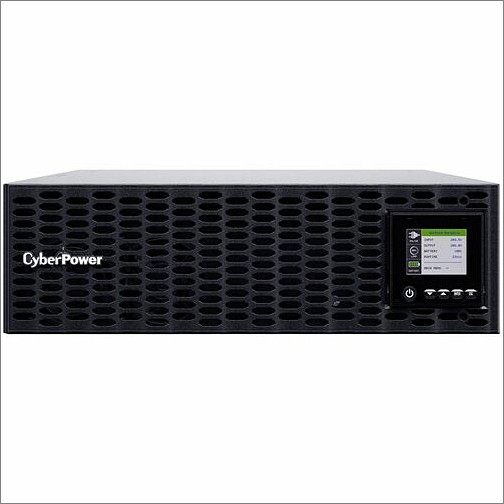

CyberPower Smart App Online OL5KRTHDL 5000VA Rack/tower UPS - 3U Rack/Tower - 4 Hour Recharge - 4.90 Minute Stand-by - 120 V AC, 230 V AC Input - 200 V AC, 208 V AC, 220 V AC, 230 V AC, 240 V AC Output - Sine Wave - Serial Port - USB - LCD Display -
CyberPower Smart App Online OL5KRTHDL 5000VA Rack/tower UPS - 3U Rack/Tower - 4 Hour Recharge - 4.90 Minute Stand-by - 120 V AC, 230 V AC Input - 200 V AC, 208 V AC, 220 V AC, 230 V AC, 240 V AC Output - Sine Wave - Serial Port - USB - LCD Display -
Part Number: OL5KRTHDL
Condition: New
Availability:
Out of stock
Real time availability
Notify Me
Best of Cleveland Award in the Computers category
Compsource is honored to be named to the Inc. 500|5000 list
Ranked among the top 500 companies
Microsoft authorized Education reseller
HP Qualified Supplies Partner
BBB Accredited Business Since 2000
- Shipping Insurance
- Price Match Guarantee
- Terms of Service Guarantee
- Identity Theft Protection
Product Specifications
CyberPower Smart App Online OL5KRTHDL 5000VA Rack/tower UPS - 3U Rack/Tower - 4 Hour Recharge - 4.90 Minute Stand-by - 120 V AC, 230 V AC Input - 200 V AC, 208 V AC, 220 V AC, 230 V AC, 240 V AC Output - Sine Wave - Serial Port - USB - LCD Display -
5KVA 5KW ONLINE UPS 3U
Manufacturer Part Number: OL5KRTHDL
L6-30P 200-240V PF=1 RMCARD RT 3YR WTY
MANUFACTURER NAME: CyberPower
MANUFACTURER PART NUMBER: OL5KRTHDL
UPC EAN CODE: 649532936199
LANGUAGE: EN
MARKET:US
| General Information: | |
The CyberPower Smart App Online OL5KRTHDL high-density design offers more power and longer run times. The OL5KRTHDL features double-conversion topology for seamless power protection and a pre-installed RMCARD205. For monitoring, this UPS offers a new state-of-the-art, multi-function, color matrix LCD screen that is simple to set up and easy to use. The color-coded alerts provide clear status of the UPS and the screen orientation rotates automatically when placed into a tower configuration. The OL5KRTHDL ensures maximum efficiency and capacity output with a Power Factor rating (PF) of 1. The energy-saving GreenPower UPS™ ECO Mode enables up to 96% efficiency while reducing power consumption and thermal dissipation. The variable 7-speed fan provides automatic thermal management, based on power load, to reduce noise. The optional BP144VL2U01 Extended Battery Module (EBM) expands runtime and up to ten EBMs can be connected in a daisy-chain to the UPS for more backup power. Plus, it's all backed by a three-year warranty (including batteries) and a $300,000 Connected Equipment Guarantee. | |
| Manufacturer | CyberPower Systems, Inc |
| Manufacturer Part Number | OL5KRTHDL |
| Manufacturer Website Address | https://www.cyberpowersystems.com/ |
| Brand Name | CyberPower |
| Product Line | Smart App Online |
| Product Model | OL5KRTHDL |
| Product Name | OL5KRTHDL Smart App Online UPS Systems |
| Product Type | Double Conversion Online UPS |
| Product UPC | 649532936199 |
| Technical Information: | |
| Plug/Connector Type | NEMA L6-30P
Hardwired |
| Receptacle Type | NEMA L6-30R
NEMA L6-20R |
| Receptacle Detail | 2 x NEMA L6-20R
2 x NEMA L6-30R |
| Cord Length | 10 ft |
| Transfer Time | 0 ns |
| EMI/RFI Noise Filter | Yes |
| Energy Saving | ECO Mode Efficiency >96% |
| Application/Usage | High-end System Component
Corporate Server Lab Equipment Electronic Device Network Equipment Hyperconverged Infrastructure (HCI) Server Room Infrastructure Storage System VoIP |
| Features | Green Energy Saving
Cold Start Function Audible Alarm Built-in Bypass Switch |
| Power Description: | |
| Load Capacity (VA) | 5000 VA |
| Load Capacity (Watt) | 5000 W |
| Input Voltage | 120 V AC
230 V AC |
| Input Voltage Range | 120 V AC - 139 V AC
200 V AC - 240 V AC |
| Output Voltage | 200 V AC
208 V AC 220 V AC 230 V AC 240 V AC |
| Input Frequency | 60 Hz
50 Hz |
| Output Frequency | 50 Hz
60 Hz |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 2430 J |
| Circuit Breaker | Yes |
| Input Power Factor | 0.99 |
| Output Power Factor | 1 |
| Display & Graphics: | |
| Display | LCD |
| Management: | |
| Network Management | SNMP/HTTP Remote Monitoring |
| Alarm | Battery Mode
Low Battery Overload UPS Fault |
| Controls/Indicators: | |
| Status Indicators | LED Indicators:
LCD Display:
|
| Interfaces/Ports: | |
| Serial Port | Yes |
| USB | Yes |
| EPO Port | Yes |
| USB (HID Compliant) Port | Yes |
| Battery Information: | |
| Number of Batteries | 12 |
| Battery Characteristics | Sealed |
| Battery Chemistry | Lead Acid |
| Battery Size | 12V |
| Battery Capacity | 9000 mAh |
| Backup/Run Time (Full Load) | 4.90 Minute |
| Backup/Run Time (Half Load) | 14.30 Minute |
| Hot Swappable | Yes |
| Typical Battery Recharge Time | 4 Hour |
| Replaceable Battery | No |
| Environmental Conditions: | |
| Maximum Operating Elevation | 10000 ft |
| Maximum Storage Elevation | 50000 ft |
| Storage Temperature | -4°F (-20°C) - 113°F (45°C) |
| Operating Humidity | 0% - 90% |
| Storage Relative Humidity | 0% - 95% |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Sound Emission (A-Weighted) | 43 dB(A) |
| Thermal Dissipation | 308.02 W |
| Physical Characteristics: | |
| Product Color | Black |
| Height | 5.1" |
| Width | 17" |
| Depth | 28.3" |
| Rack Height | 3U |
| Form Factor | Rack/Tower |
| Weight (Approximate) | 117.99 lb |
| Miscellaneous: | |
| What's in the box |
|
| Software Included | PowerPanel® Business Edition |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty: | |
| Warranty | 3 Year |
