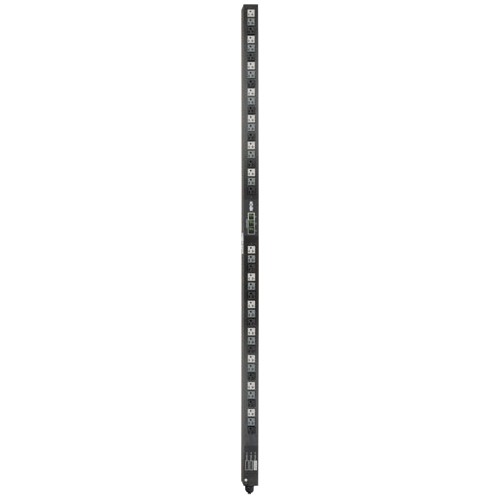

Eaton Tripp Lite Series 5.7kW 3-Phase Local Metered PDU, 120V Outlets (42 5-15/20R), 208V L21-20P input, 6 ft. (1.83 m) Cord, 0U Vertical, TAA - 42 x NEMA 5-15/20R - 5.70 kVA - Vertical Rackmount, Toolless-mount (PDU3MV6L2120LV)
Eaton Tripp Lite Series 5.7kW 3-Phase Local Metered PDU, 120V Outlets (42 5-15/20R), 208V L21-20P input, 6 ft. (1.83 m) Cord, 0U Vertical, TAA - 42 x NEMA 5-15/20R - 5.70 kVA - Vertical Rackmount, Toolless-mount (PDU3MV6L2120LV)
Part Number: PDU3MV6L2120LV
Condition: New
Availability: 3
Best of Cleveland Award in the Computers category
Compsource is honored to be named to the Inc. 500|5000 list
Ranked among the top 500 companies
Microsoft authorized Education reseller
HP Qualified Supplies Partner
BBB Accredited Business Since 2000
- Shipping Insurance
- Price Match Guarantee
- Terms of Service Guarantee
- Identity Theft Protection
Product Specifications
Eaton Tripp Lite Series 5.7kW 3-Phase Local Metered PDU, 120V Outlets (42 5-15/20R), 208V L21-20P input, 6 ft. (1.83 m) Cord, 0U Vertical, TAA - 42 x NEMA 5-15/20R - 5.70 kVA - Vertical Rackmount, Toolless-mount (PDU3MV6L2120LV)
PDU3MV6L2120LV - POWER DISTRIBUTION UNIT - VERTICAL (0U) - 208V - 5.7KW - (42) 5
Manufacturer Part Number: PDU3MV6L2120LV

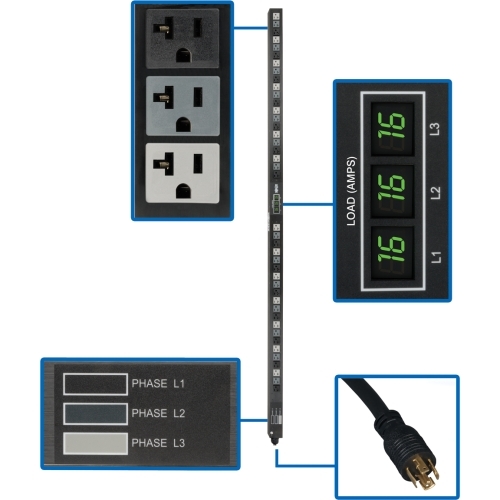

PDU 3-Phase Metered 120V 5.7 kW 42 5-15/20R L21-20P 0URM - Metered 5.7kW 3 Phase 120V output PDU; 70 in. / 178cm 0U vertical rackmount Reports load level per-phase via built in current meters NEMA L21-20P (3P+N+E) 208V 3 phase input; 6 ft. / 1.8m line cord 42 NEMA 5-15/20R outlets (120V) Toolless button-mount installation; cord retention brackets included
MANUFACTURER NAME: Eaton
MANUFACTURER PART NUMBER: PDU3MV6L2120LV
UPC EAN CODE: 037332163899
LANGUAGE: EN
MARKET:US
| General Information: | |
Tripp Lite 3 phase Metered PDU / Power Distribution Units offer real-time local reporting of current levels in amps via set of 3 built-in digital meters. Enables visual monitoring of PDU current levels to preserve proper loading balance and prevent circuit overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories. | |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | PDU3MV6L2120LV |
| Manufacturer Website Address | http://www.eaton.com |
| Brand Name | Tripp Lite series |
| Product Series | Metered |
| Product Model | PDU3MV6L2120LV |
| Product Name | 3-Phase Metered PDU |
| Product Type | PDU |
| Product UPC | 037332163899 |
| Technical Information: | |
| Plug/Connector Type | NEMA L21-20P |
| Receptacle Type | NEMA 5-15/20R |
| Receptacle Detail | 42 x NEMA 5-15/20R |
| Power Description: | |
| Input Voltage | 230 V AC |
| Output Voltage | 120 V AC |
| Power Rating (Watt) | 5700 W |
| Physical Characteristics: | |
| Mounting Orientation | Vertical |
| Mount Type | Rack-mountable |
| Height | 70" |
| Width | 1.9" |
| Depth | 2.2" |
| Weight (Approximate) | 12.57 lb |
| Miscellaneous: | |
| What's in the box |
|
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty: | |
| Warranty | 2 Year |
