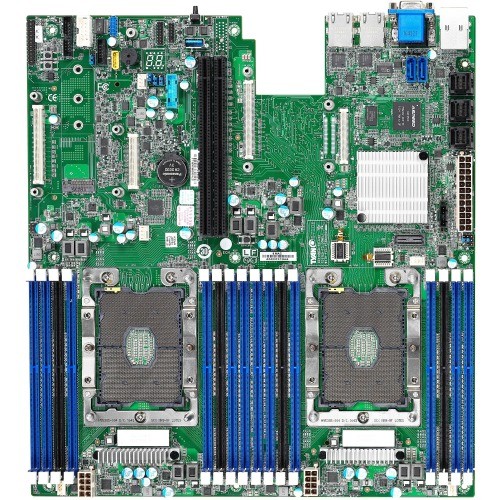

Tyan Tempest CX S7106 Server Motherboard - Intel C621 Chipset - Socket P LGA-3647 - Extended ATX - Xeon Processor Supported - 2 TB DDR4 SDRAM Maximum RAM - DIMM, LRDIMM, RDIMM - 16 x Memory Slots - Gigabit Ethernet - 2 x SATA Interfaces (S7106GM2NR)
Tyan Tempest CX S7106 Server Motherboard - Intel C621 Chipset - Socket P LGA-3647 - Extended ATX - Xeon Processor Supported - 2 TB DDR4 SDRAM Maximum RAM - DIMM, LRDIMM, RDIMM - 16 x Memory Slots - Gigabit Ethernet - 2 x SATA Interfaces (S7106GM2NR)
Part Number: S7106GM2NR
Condition: New
Availability:
Manufacturer Drop Ship
Real time availability
Best of Cleveland Award in the Computers category
Compsource is honored to be named to the Inc. 500|5000 list
Ranked among the top 500 companies
Microsoft authorized Education reseller
HP Qualified Supplies Partner
BBB Accredited Business Since 2000
- Shipping Insurance
- Price Match Guarantee
- Terms of Service Guarantee
- Identity Theft Protection
Product Specifications
Tyan Tempest CX S7106 Server Motherboard - Intel C621 Chipset - Socket P LGA-3647 - Extended ATX - Xeon Processor Supported - 2 TB DDR4 SDRAM Maximum RAM - DIMM, LRDIMM, RDIMM - 16 x Memory Slots - Gigabit Ethernet - 2 x SATA Interfaces (S7106GM2NR)
TYAN INTEL DUAL SOCKET XEON SP / 16
Manufacturer Part Number: S7106GM2NR
Tyan Brochure PDF
MANUFACTURER NAME: Tyan
MANUFACTURER PART NUMBER: S7106GM2NR
UPC EAN CODE: 635872043154
LANGUAGE: EN
MARKET:US
| General Information: | |
TYAN Tempest CX S7106 Dual-socket server motherboard S7106GM2NR
High Expandability Tyan's Tempest CX S7106 motherboard offers maximum expandability within a standard 12" x 13" SSI EEB form factor. This offers outstanding expansion capabilities in standard 1U server enclosures. A commodity 1U server chassis can support four PCIe x16 slots:
Things get more interesting in a 2U chassis as the motherboard features a pair of PCIe x24 slots. Tyan has a pair of available 2U riser cards with a MUX that support either x16/x0/x8 or x8/x8/x8 support, allowing each card to support up to one x16 slot and a x8 slot, or up to three x8 depending on configuration. PCIe x16 Storage Mezzanine The Tempest CX S7106 features an internal storage mezzanine slot to allow the deployment of additional storage options without consuming a PCIe slot in the rear of the chassis. The motherboard features support for an 8-Port LSI SAS3008 HBA and a PCIe x16 retimer mezzanine for NVMe deployment: 205W CPU Support The Intel Xeon Scalable Processor Family features processors with a maximum TDP of up to 205W. With this in mind, the VRM of the s7106 motherboard has been designed to power the most demanding of the Xeon SP lineup. Support for up to 2 GPU cards The S7106 motherboard is designed to feature support for two GPU cards when deployed in a 2U chassis. The available 2U riser cards M7106-L24-3F and M7106-R24-3F both feature a x16 slot in the upper half of a 2U chassis, allowing double-wide GPU cards to fit in the airspace above the CPU heatsinks if 1U heatsinks are deployed. This allows a low cost way to deploy GPU accelerators in a wide range of commodity off the shelf server chassis designs. | |
| Manufacturer | Tyan Computer Corp |
| Manufacturer Part Number | S7106GM2NR |
| Manufacturer Website Address | http://www.tyan.com |
| Brand Name | Mitac |
| Product Line | Tempest CX |
| Product Model | S7106 |
| Product Name | Tempest CX S7106 Rack-Optimized Dual Socket Server Motherboard |
| Packaged Quantity | 1 |
| Product Type | Server Motherboard |
| Product UPC | 635872043154 |
| Processor & Chipset: | |
| Chipset Manufacturer | Intel |
| Chipset Model | C621 |
| Total Processor Supported | 2 |
| Processor Socket | Socket P LGA-3647 |
| Processor Supported | Xeon |
| Memory: | |
| Number of Memory Slots | 16 |
| Memory Form Factor | DIMM
LRDIMM RDIMM |
| Maximum Memory Supported | 2 TB |
| Memory Speed Supported | 2666 MHz |
| Memory Technology | DDR4 SDRAM |
| I/O Controller: | |
| Controller Type | Serial ATA/600 |
| Intel RSTe | Yes |
| RAID Supported | Yes |
| RAID Levels | 10
5 1 0 |
| Video: | |
| Onboard Video | On-board Video Chipset |
| Graphics Controller Model | AST2500 |
| Network & Communication: | |
| Gigabit Ethernet | Yes |
| I/O Expansions: | |
| Total Number of Expansion Slots | 2 |
| Total Number of PCI Express Slots | 2 |
| Number of PCI Express x24 Slots | 2 |
| Interfaces/Ports: | |
| Total Number of USB Ports | 2 |
| Number of USB 3.0 Ports | 2 |
| VGA | Yes |
| Onboard Interfaces: | |
| Number of SATA Interfaces | 2 |
| Number of Mini-SAS Interfaces | 3 |
| Number of M.2 Interfaces | 1 |
| Total Number of Onboard USB Ports | 5 |
| Number of Onboard USB 3.0 Ports | 3 |
| Physical Characteristics: | |
| Form Factor | Extended ATX |
| Width | 13" |
| Depth | 12" |
| Miscellaneous: | |
| What's in the box |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS)
Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | Taiwan |
| Warranty: | |
| Warranty | 3 Year |
