Service Bypass Panel For 200/ Perp - 208/240v Symmetra Rt 4-16kva No Rtn (SBP16KRMP4U)
Service Bypass Panel For 200/ Perp - 208/240v Symmetra Rt 4-16kva No Rtn (SBP16KRMP4U)
Part Number: SBP16KRMP4U
Condition: New
Availability:
Manufacturer Drop Ship
Real time availability
Best of Cleveland Award in the Computers category
Compsource is honored to be named to the Inc. 500|5000 list
Ranked among the top 500 companies
Microsoft authorized Education reseller
HP Qualified Supplies Partner
BBB Accredited Business Since 2000
Product Specifications

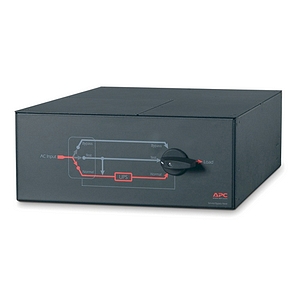

Service Bypass Panel For 200/ Perp - 208/240v Symmetra Rt 4-16kva No Rtn (SBP16KRMP4U)
SERVICE BYPASS PANEL FOR 200/ PERP - 208/240V SYMMETRA RT 4-16KVA NO RTN
Manufacturer Part Number: SBP16KRMP4U
****FD ONLY*****APC Service Bypass Panel- 200/208/240V; 100A; MBB; Hardwire input; (6) L14-30R output.
MANUFACTURER NAME: Apc Schneider
MANUFACTURER PART NUMBER: SBP16KRMP4U
UPC EAN CODE: 731304212669
LANGUAGE: EN
MARKET:US
| General Information: | |
The APC Service Bypass Panel supports output voltage of 200V and 208V. It includes 6 NEMA L14-30R outlets. It features a 4U rack-mount design and is rack mountable. | |
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | SBP16KRMP4U |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Brand Name | APC by Schneider Electric |
| Product Name | 19" Rack Mountable 100A Maintenance Bypass Panel |
| Packaged Quantity | 1 Each |
| Product Type | Bypass Panel |
| Product UPC | 731304212669 |
| Technical Information: | |
| Plug/Connector Type | Hard Wire 3-wire
Hard Wire 4-wire |
| Receptacles | 6 x NEMA L14-30R |
| Protection Type | Overload |
| Power Description: | |
| Load Capacity (VA) | 20 kW |
| Input Voltage | 208 V AC |
| Output Voltage | 200 V AC
208 V AC |
| Current | 100 A |
| Physical Characteristics: | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Rack-mountable |
| Rack Height | 4U |
| Height | 7" |
| Width | 17" |
| Depth | 26.5" |
| Weight (Approximate) | 51.10 lb |
| Miscellaneous: | |
| What's in the box | |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty: | |
| Warranty | 2 Year |
