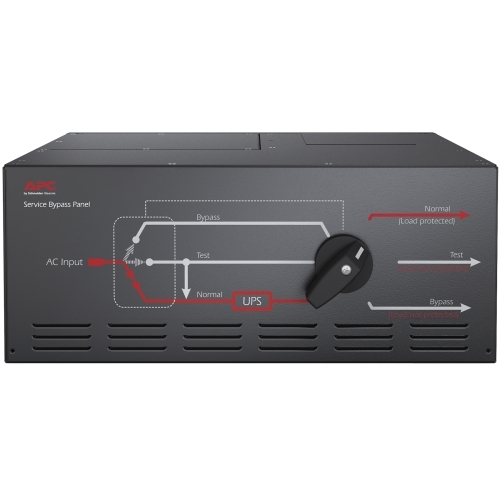

APC by Schneider Electric SBP20KP Bypass Panel - 1 x Hard Wire 3-wire (2PH + G), 1 x Hard Wire 3-wire (H N + G) - 20 kW - 200 V AC, 208 V AC, 220 V AC, 230 V AC, 240 V AC, 380 V AC, 400 V AC, 415 V AC - 125 A, 125 A, 125 A
APC by Schneider Electric SBP20KP Bypass Panel - 1 x Hard Wire 3-wire (2PH + G), 1 x Hard Wire 3-wire (H N + G) - 20 kW - 200 V AC, 208 V AC, 220 V AC, 230 V AC, 240 V AC, 380 V AC, 400 V AC, 415 V AC - 125 A, 125 A, 125 A
Part Number: SBP20KP
Condition: New
Availability:
Manufacturer Drop Ship
Real time availability
Best of Cleveland Award in the Computers category
Compsource is honored to be named to the Inc. 500|5000 list
Ranked among the top 500 companies
Microsoft authorized Education reseller
HP Qualified Supplies Partner
BBB Accredited Business Since 2000
- Shipping Insurance
- Price Match Guarantee
- Terms of Service Guarantee
- Identity Theft Protection
Product Specifications
APC by Schneider Electric SBP20KP Bypass Panel - 1 x Hard Wire 3-wire (2PH + G), 1 x Hard Wire 3-wire (H N + G) - 20 kW - 200 V AC, 208 V AC, 220 V AC, 230 V AC, 240 V AC, 380 V AC, 400 V AC, 415 V AC - 125 A, 125 A, 125 A
SERVICE BYPASS PANEL Component - 200/208/230/240V 125A HW
Manufacturer Part Number: SBP20KP
APC Service Bypass Panel 200/208/230/240V 125A HW Input/Output
MANUFACTURER NAME: Apc Schneider
MANUFACTURER PART NUMBER: SBP20KP
UPC EAN CODE: 731304266952
LANGUAGE: EN
MARKET:US
| General Information: | |
The APC Service Bypass Panel supports output voltage of 200V, 208V, 220V, 230V, and 240V. It features a 4U form factor and provides a manual bypass switch for maintenance and service operations. It includes an installation guide, rack mounting brackets, and a user manual. | |
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | SBP20KP |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Brand Name | APC by Schneider Electric |
| Product Model | SBP20KP |
| Product Name | SBP20KP Bypass Panel |
| Product Type | Bypass Panel |
| Product UPC | 731304266952 |
| Technical Information: | |
| Plug/Connector Type | Hard Wire 3-wire
Hard Wire 5-wire |
| Receptacles | 1 x Hard Wire 3-wire (H+N+E)
1 x Hard Wire 3-wire (2PH + G) |
| Protection Type | Overload |
| Power Description: | |
| Load Capacity (VA) | 20 kW |
| Input Voltage | 200 V AC
208 V AC 220 V AC 230 V AC 240 V AC 380 V AC 400 V AC 415 V AC |
| Output Voltage | 200 V AC
208 V AC 220 V AC 230 V AC 240 V AC |
| Current | 125 A |
| Physical Characteristics: | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Rack-mountable |
| Rack Height | 4U |
| Height | 7" |
| Width | 17" |
| Depth | 21.8" |
| Weight (Approximate) | 42.59 lb |
| Miscellaneous: | |
| What's in the box | |
| Compatibility | APC Smart-UPS |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS)
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Warranty: | |
| Warranty | 2 Year |
