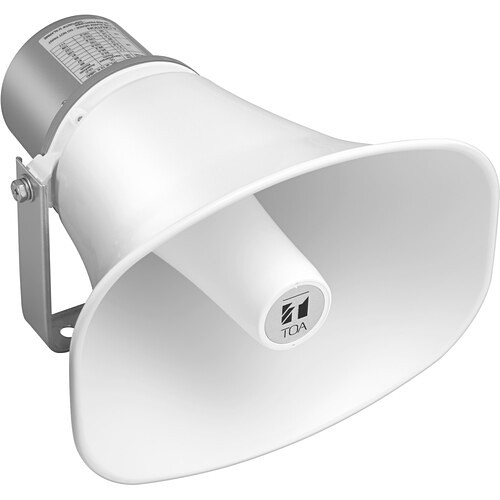

Toa SC-630TU Speakers Toa Sc-630tu Indoor/outdoor Wall Mountable, Ceiling Mountable, Pole Mount Speaker - 30 W Rms - White Sc630tu

Part Number: SC-630TU
Condition: New
Availability: Out of stock
Notify Me


Cleveland Award

Best of Cleveland Award in the Computers category

Inc. 500|5000 list

Compsource is honored to be named to the Inc. 500|5000 list

Ranked among the top 500 companies | internet retailer

Ranked among the top 500 companies

Microsoft authorized Education reseller

Microsoft authorized Education reseller

HP Qualified Supplies Partner

HP Qualified Supplies Partner

BBB Accredited Business Since 2000

BBB Accredited Business Since 2000

Regular:$164.00
Save:$41.00 (25%)

Your Price:
$123.00

As low as $11/month
Buy Now, Pay Later




Square Trade
4xbuyerprotection
  • Shipping Insurance
  • Price Match Guarantee
  • Terms of Service Guarantee
  • Identity Theft Protection
FREE with your purchase
Expert Name, Expert Title
Let our Specialist make your purchase easier

Product Specifications



TOA SC-630TU Indoor/Outdoor Wall Mountable, Ceiling Mountable, Pole Mount Speaker - 30 W RMS - White - 250 Hz to 10 kHz - 8 Ohm

Paging Horn Speaker- 30 W- 25/70.7 V Transformer- Mounting Bracket Inclu

Manufacturer Part Number: SC-630TU

TOA SC-630TU Paging Horn Speaker is a high-impedance speaker featuring a built-in 25 V /70 V transformer with external screwdriver-adjustable power taps. With a rated input of 30W, it provides intelligible voice paging and tone signaling for indoor and outdoor sound system applications. The speaker is certified to UL 1480 UUMW (Mass Notification System) and ULC-S541 standards and is fully weather-resistant for reliable operation in demanding environmental conditions. It is easily installed in wall, pole or ceiling-mount applications. The SC-630TU is also designed for intercom talk-back applications, enabling dual operation as both a microphone and a speaker.

It features a double re-entrant horn with compression driver for high sensitivity and a lightweight aluminum enclosure. The loud-speaker diaphragm is heat- and moisture-resistant to prevent deformation and extend operation. The SC-630TU is also IP65 standards compliant for dust and moisture resistance with a wide operating temperature range from -40°F to 151° F (-40°C to 66° C).

FEATURES

    Paging horn speakers for voice paging and tone signaling distribution. Certified to Fire Alarm Signaling Speaker certification UL 1480 UUMW and ULC-S541 listed. Double re-entrant horn with compression driver High sensitivity: up to 113 dB (1 W/1 m) Usable as a microphone for intercom talk-back applications. Input impedance selector (25V and 70V) with rotary switch Controlled dispersion Weather-resistant to withstand demanding environmental conditions. IEC IP65 standards compliant for dust and moisture resistance. Non-flammable transformer case and speaker cable Extra wide temperature range: -40°F to 151°F Diaphragms employing special heat-resistant polyimide film to prevent the diaphragm from absorbing moisture and changing shape


RMS Output Power: 30 W
Minimum Frequency Response: 250 Hz
Maximum Frequency Response: 10 kHz
Impedance: 8 Ohm
Ingress Protection (IP) Rating: IP65
Product Color: White
Form Factor: Wall Mountable
Form Factor: Ceiling Mountable
Form Factor: Pole Mount
Dura



CPN:Paging Horn Speaker- 30 W- 25/70.7 V Transformer- Mounting Bracket Inclu
MANUFACTURER NAME: Toa
MANUFACTURER PART NUMBER: SC-630TU
UPC EAN CODE:
LANGUAGE: EN
MARKET:US

General Information:

TOA SC-630TU Paging Horn Speaker is a high-impedance speaker featuring a built-in 25 V /70 V transformer with external screwdriver-adjustable power taps. With a rated input of 30W, it provides intelligible voice paging and tone signaling for indoor and outdoor sound system applications. The speaker is certified to UL 1480 UUMW (Mass Notification System) and ULC-S541 standards and is fully weather-resistant for reliable operation in demanding environmental conditions. It is easily installed in wall, pole or ceiling-mount applications. The SC-630TU is also designed for intercom talk-back applications, enabling dual operation as both a microphone and a speaker.

It features a double re-entrant horn with compression driver for high sensitivity and a lightweight aluminum enclosure. The loud-speaker diaphragm is heat- and moisture-resistant to prevent deformation and extend operation. The SC-630TU is also IP65 standards compliant for dust and moisture resistance with a wide operating temperature range from -40°F to 151° F (-40°C to 66° C).

FEATURES

  • Paging horn speakers for voice paging and tone signaling distribution.
  • Certified to Fire Alarm Signaling Speaker certification
  • UL 1480 UUMW and ULC-S541 listed.
  • Double re-entrant horn with compression driver
  • High sensitivity: up to 113 dB (1 W/1 m)
  • Usable as a microphone for intercom talk-back applications.
  • Input impedance selector (25V and 70V) with rotary switch
  • Controlled dispersion
  • Weather-resistant to withstand demanding environmental conditions.
  • IEC IP65 standards compliant for dust and moisture resistance.
  • Non-flammable transformer case and speaker cable
  • Extra wide temperature range: -40°F to 151°F
  • Diaphragms employing special heat-resistant polyimide film to prevent the diaphragm from absorbing moisture and changing shape

ManufacturerTOA Corporation
Manufacturer Part NumberSC-630TU
Manufacturer Website Addresshttp://www.toaelectronics.com
Brand NameTOA
Product ModelSC-630TU
Product NameSC-630TU Paging Horn Speaker
Product TypeSpeaker
Technical Information:
RMS Output Power30 W
Minimum Frequency Response250 Hz
Maximum Frequency Response10 kHz
Impedance8 Ohm
Ingress Protection (IP) RatingIP65
Physical Characteristics:
Product ColorWhite
Form FactorWall Mountable
Ceiling Mountable
Pole Mount
DurabilityMoisture Resistant
Dust Resistant
Weather Resistant
Speaker InstallationIndoor/Outdoor
Height8.9"
Width11.2"
Depth10.91"
Weight (Approximate)4.41 lb
Miscellaneous:
Application/UsageVoice
Paging
Signaling System
Mass Notification
