Product Specifications

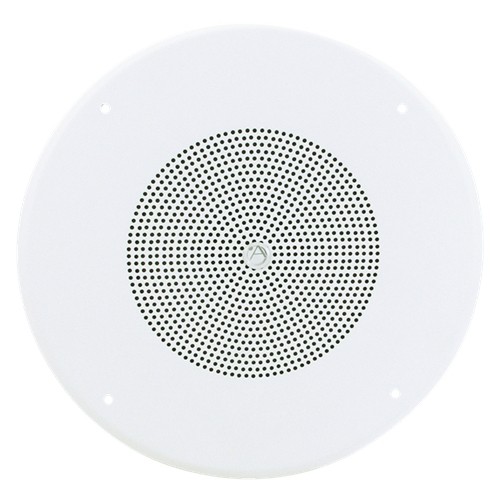

AtlasIED SD72W Speaker - 15 W RMS - 25 W PMPO - 45 Hz to 19 kHz - 8 Ohm - 97 dB Sensitivity

8" Dual Cone Loudspeaker with Transformer and Model 62-8 Baffle System

Manufacturer Part Number: SD72W

The speaker used in the SD72W is the next generation of Atlas high performance cone loudspeakers, very similar to the preceding C-Series speakers. The similarity in the sonic qualities ensures that contractors and designers who have worked with the Atlas Sound C-Series in the past will know exactly what to expect when they use the SD72W. Model SD72W is a dual cone, 25 watt 8" (205mm) loudspeaker with a 10oz. (260g) ceramic magnet. It includes a curvilinear, treated paper cone for lower harmonic distortion. The loudspeaker is also equipped with a full 1" diameter copper voice coil with a black anodized aluminum former for better power dissipation. Package includes factory installed 25/70.7V line matching transformer with tap selections ranging from .25 to 5 watts.

10oz Dual Cone Speaker Provides Familiar Response & Performance
Attractive CRS White Powder Coat Baffle
Individually Packaged for Stocking & Ordering Convenience
Quality 5 Watt-Dual Voltage Transformer
ETL Certified, Safety Listed to UL1480.
ETL Certified

CPN:8" Dual Cone Loudspeaker with Transformer and Model 62-8 Baffle System
MANUFACTURER NAME: Atlas Sound
MANUFACTURER PART NUMBER: SD72W
UPC EAN CODE: 612079179954
LANGUAGE: EN
MARKET:US

*General Information:*
The speaker used in the SD72W is the next generation of Atlas high performance cone loudspeakers, very similar to the preceding C-Series speakers. The similarity in the sonic qualities ensures that contractors and designers who have worked with the Atlas Sound C-Series in the past will know exactly what to expect when they use the SD72W.
Manufacturer	AtlasIED
Manufacturer Part Number	SD72W
Manufacturer Website Address	http://www.atlassound.com
Brand Name	AtlasIED
Product Model	SD72W
Product Name	SD72W Speaker
Product Type	Speaker
Product UPC	612079179954
*Technical Information:*
RMS Output Power	15 W
PMPO Output Power	25 W
Minimum Frequency Response	45 Hz
Maximum Frequency Response	19 kHz
Impedance	8 Ohm
Sensitivity	97 dB
Shape	Round
*Physical Characteristics:*
Product Color	White
Form Factor	In-ceiling
Depth	2.88"
Weight (Approximate)	2 lb
*Miscellaneous:*
Country of Origin	China
