Eaton Tripp Lite Series SmartPro 3000VA 3000W 120V Line-Interactive Sine Wave UPS - 7 Outlets, Extended Run, Network Card Option, LCD, USB, DB9, 2U Rack/Tower - 3000VA/3000W - 3 Minute Full Load, 10 Minute Half Load - 1 x NEMA L5-30R, 8 x NEMA 5-15/2 (SMART3000RMXL2U)
Eaton Tripp Lite Series SmartPro 3000VA 3000W 120V Line-Interactive Sine Wave UPS - 7 Outlets, Extended Run, Network Card Option, LCD, USB, DB9, 2U Rack/Tower - 3000VA/3000W - 3 Minute Full Load, 10 Minute Half Load - 1 x NEMA L5-30R, 8 x NEMA 5-15/2 (SMART3000RMXL2U)
Part Number: SMART3000RMXL2U
Condition: New
Availability: 107
Real time availability
Best of Cleveland Award in the Computers category
Compsource is honored to be named to the Inc. 500|5000 list
Ranked among the top 500 companies
Microsoft authorized Education reseller
HP Qualified Supplies Partner
BBB Accredited Business Since 2000
- Shipping Insurance
- Price Match Guarantee
- Terms of Service Guarantee
- Identity Theft Protection
Also Available
Product Specifications
Eaton Tripp Lite Series SmartPro 3000VA 3000W 120V Line-Interactive Sine Wave UPS - 7 Outlets, Extended Run, Network Card Option, LCD, USB, DB9, 2U Rack/Tower - 3000VA/3000W - 3 Minute Full Load, 10 Minute Half Load - 1 x NEMA L5-30R, 8 x NEMA 5-15/2 (SMART3000RMXL2U)
SMART3000RMXL2U - EATON TRIPP LITE SERIES SMARTPRO 3000VA 3000W 120V LINE-INTERA
Manufacturer Part Number: SMART3000RMXL2U

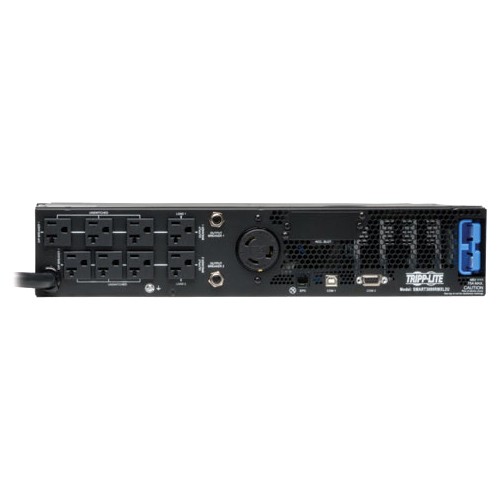

Eaton Brochure PDF 3000VA / 3kVA 120V line interactive 2U rack / tower UPS offers complete network-grade power protection with full support for hot-replacement of separate internal battery and electronics modules. High .96 power factor supports loads up to 2880 watts. High efficiency rating of 96% reduces electrical operating cost and BTU emissions. Supports 120V 60Hz operation. Maintains battery derived sine wave AC output during power failures. Line-interactive dual-boost, single cut automatic voltage regulation (AVR) provides regulated 120V nominal output during brownouts and overvoltages. Includes NEMA L5-30P input plug and 9 UPS-supported output receptacles (8 x 5-15/20R, 1 x L5-30R). Includes two individually controllable switched outlets for advanced remote-reboot and load-shedding applications. Network-grade AC surge and noise suppression. Network management interfaces support simultaneous communications via USB, DB9 serial and card slot for optional SNMPWEBCARD and other card accessories. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Supports detailed monitoring of equipment load levels, self-test data and utility power conditions via all three network interfaces at once. Advanced LED indicators offer 3-stage metering of UPS load and battery charge levels, plus single-LED status indicators for utility power, voltage regulation, on-battery and replace battery. Audible alarms provide notification of on-battery, low-battery and overload conditions. Includes PowerAlert auto-shutdown and management software for complete monitoring, reporting and logging of all site and UPS operational conditions, plus support for advanced configurations involving load-shedding, remote-reboot and redundant dual-UPS applications. Internal batteries offer runtime of 10 minutes half load (1440 watts) and 3 minutes at full load (2880 watts). Runtime is expandable with optional BP48V24-2U (limit 1) and BP48V60RT3U (unlimited) external battery packs. Supports installation in 4 post racks with included accessories. 2 post rackmount, wallmount and tower stand accessories sold separate. 2-year warranty and $250,000 connected equipment insurance; extended warranty and service contracts available. 3000VA / 3kVA 120V line interactive 2U rack / tower UPS for networks High power factor of .96 offers support for loads to 2880 watts High efficiency line power operation of 96% reduces UPS electrical operating cost and BTU emissions Supports selectable 120V nominal voltage operation at 60 Hz Sine wave AC output in AC and battery modes Line interactive UPS with Automatic Voltage Regulation (AVR) L5-30P input plug connects to 120V 30A utility receptacle Includes 9 UPS supported outlets (8 5-15/20R and 1 L5-30R) L5-30R outlet is ideal for the connection of a 120V 30A PDU to distribute the full UPS capacity to rack equipment Two designated 5-15/20R outlets are individually controllable to support remote reboot or automated load shedding of less critical items Network-grade 570 joule AC surge suppression USB, DB9 serial and card-slot accessory are all available for simultaneous use in advanced network configurations HID compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X Includes PowerAlert auto-shutdown and management software for complete monitoring, reporting and logging of all site and UPS operational conditions, plus support for advanced configurations involving load-shedding, remote-reboot and redundant dual-UPS applications Advanced LED indicators offer 3-stage metering of UPS load and battery charge levels, plus single-LED status indicators for utility power, voltage regulation, on-battery and replace battery. Audible alarms provide notification of on-battery, low-battery and overload conditions Audible alarms provide notification of on-battery, low-battery and overload conditions Internal batteries offer runtime of 10 minutes half load (1440 watts) and 3 minutes at full load (2880 watts) Runtime is expandable with optional BP48V24-2U (limit 1) and BP48V60RT3U (no limit) external battery packs Supports 4 post rackmount installation with included accessories; add 2POSTRMKITWM for 2 post and wallmount applications; add 2-9USTAND accessory for upright tower support 2-year warranty and $250,000 connected equipment insurance; extended warranty and service contracts available Applications Ideal for server, networking and telecommunications applications in rackmount, wallmount or tower format Package Includes UPS power module with internal batteries PowerAlert Software with USB, DB9 and EPO cabling 4 post rackmount installation accessories Owner's manual with warranty information
MANUFACTURER NAME: Eaton
MANUFACTURER PART NUMBER: SMART3000RMXL2U
UPC EAN CODE: 037332144324
LANGUAGE: EN
MARKET:US
| General Information: | |
3kVA/3kW/120V Battery Backup for Distributed IT, Telecom or Enterprise Deployments This rack-mount line-interactive UPS system provides reliable battery backup and AC power protection against blackouts, brownouts, surges and line noise that can damage your valuable IT equipment or destroy data. The SMART3000RMXL2U is ideal power management for high-end in-rack networking equipment, including servers, VoIP phones, data storage and PoE switches. Unity power factor ensures the most watts possible at each power rating, so you can connect more equipment. Reliable, Expandable Battery Backup Keeps You Operational Through Power Outages The field-replaceable, hot-swappable VRLA battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. Switchover from line to battery power happens within milliseconds to maintain continuous operation of connected equipment without interruption or rebooting. Extra runtime is available by connecting up to four optional extended battery modules (BP72VRM2U, sold separately). Optional LX Platform Network Management Card Allows Remote Access 24/7 The WEBCARDLXE network interface (sold separately) enables full remote configuration and management, including load shedding, reboots of connected equipment and safe shutdowns. The IP-based Auto Probe feature ensures continuous network uptime by communicating with other network devices, detecting lost connectivity and automatically rebooting IT equipment. Optional EnviroSense2 modules (E2MT, E2MTDO and E2MTHDI, all sold separately) provide a variety of environmental monitoring and control options. NEMA 5-20R Outlets Protect Your Connected Components One L5-30R and six managed 5-20R outlets provide connected equipment with pure sine wave AC output and allow you to monitor power consumption down to the outlet group level. Power provided by these outlets is filtered to protect connected equipment against damaging surges and line noise. Four outlets are grouped into two programmable load banks that let you shed non-critical loads to extend runtime for critical loads. Front and rear cooling fans help protect equipment from overheating. Automatic Voltage Regulation (AVR) Corrects Low- and High-Voltage Conditions AVR protects your equipment from incremental hardware damage, data loss and performance problems caused by brownouts. The SMART3000RMXL2U maintains regulated 120V nominal output during brownouts and overvoltages from 80V to 151V while keeping the battery fully charged and ready to take over in case of power failure. Premium Protection from EMI/RFI Line Noise Helps Your Equipment Perform Better This UPS system filters out disruptive electromagnetic and radio frequency interference that can inflict hardware damage or data loss. This EMI/RFI filtering also helps your connected components perform better and last longer. ENERGY STAR-Certified to Help You Save Money and Protect the Environment By meeting strict U.S. Department of Energy and U.S. Environmental Protection Agency requirements, this ENERGY STAR 2.0 UPS system provides high operational efficiency to signal a reduction in BTU emissions, save on utility and cooling costs and help protect the environment. | |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | SMART3000RMXL2U |
| Manufacturer Website Address | http://www.eaton.com |
| Brand Name | Tripp Lite series |
| Product Line | SmartPro |
| Product Model | SMART3000RMXL2U |
| Product Name | SmartPro SMART3000RMXL2U 3000VA Rack/Tower UPS |
| Product Type | Line-interactive UPS |
| Product UPC | 037332144324 |
| Technical Information: | |
| Plug/Connector Type | NEMA L5-30P |
| Receptacle Type | NEMA L5-30R
NEMA 5-20R |
| Receptacle Detail | 6 x NEMA 5-20R
1 x NEMA L5-30R |
| Overload Protection | Yes |
| Transfer Time | 4 ms |
| Phase | Single Phase |
| Application/Usage | Data Storage
Server Switch IT Equipment |
| Power Description: | |
| Load Capacity (VA) | 3000 VA |
| Load Capacity (Watt) | 3000 W |
| Input Voltage | 120 V AC |
| Output Voltage | 100 V AC
110 V AC 115 V AC 120 V AC |
| Output Frequency | 60 Hz |
| Waveform Type | Pure Sine Wave |
| Surge Energy Rating | 380 J |
| Output Power Factor | 1 |
| Display & Graphics: | |
| Display | LCD |
| Management: | |
| Network Management | SNMP/Web |
| Alarm | Remote Shutdown
UPS StartUp Power Failure Overload UPS Fault Low Battery |
| Interfaces/Ports: | |
| Serial Port | Yes |
| USB | Yes |
| EPO Port | Yes |
| USB (HID Compliant) Port | Yes |
| Battery Information: | |
| DC System Voltage | 72 V DC |
| Battery Characteristics | Valve-regulated |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 3 Minute |
| Backup/Run Time (Half Load) | 9 Minute |
| Hot Swappable | Yes |
| Typical Battery Recharge Time | 5 Hour |
| Replaceable Battery | Yes |
| Environmental Conditions: | |
| Maximum Operating Elevation | 10000 ft |
| Maximum Storage Elevation | 32808 ft |
| Storage Temperature | 5°F (-15°C) - 122°F (50°C) |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Physical Characteristics: | |
| Height | 3.4" |
| Width | 17.2" |
| Depth | 23.7" |
| Rack Height | 2U |
| Form Factor | Rack/Tower |
| Weight (Approximate) | 74.50 lb |
| Miscellaneous: | |
| What's in the box | |
| Software Included | PowerAlert Software |
| Energy Star | Yes |
| Country of Origin | Philippines |
| Environmentally Friendly | Yes |
| Energy Efficiency Certification | ENERGY STAR 2.0 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty: | |
| Warranty | 3 Year |
