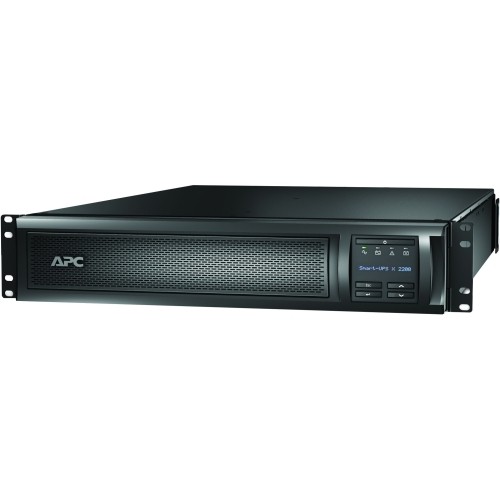

APC by Schneider Electric Smart-UPS X 2200VA Rack/Tower LCD 200-240V with Network Card - 2U Tower - 3 Hour Recharge - 9.80 Minute Stand-by - 208 V, 230 V Input - 208 V AC, 230 V AC Output - Sine Wave - 1 x IEC 320-C19, 2 x IEC Jumper, 8 x IEC 320-C13 (SMX2200R2HVNC)
APC by Schneider Electric Smart-UPS X 2200VA Rack/Tower LCD 200-240V with Network Card - 2U Tower - 3 Hour Recharge - 9.80 Minute Stand-by - 208 V, 230 V Input - 208 V AC, 230 V AC Output - Sine Wave - 1 x IEC 320-C19, 2 x IEC Jumper, 8 x IEC 320-C13 (SMX2200R2HVNC)
Part Number: SMX2200R2HVNC
Condition: New
Availability: 8
Real time availability
Best of Cleveland Award in the Computers category
Compsource is honored to be named to the Inc. 500|5000 list
Ranked among the top 500 companies
Microsoft authorized Education reseller
HP Qualified Supplies Partner
BBB Accredited Business Since 2000
- Shipping Insurance
- Price Match Guarantee
- Terms of Service Guarantee
- Identity Theft Protection
Product Specifications
APC by Schneider Electric Smart-UPS X 2200VA Rack/Tower LCD 200-240V with Network Card - 2U Tower - 3 Hour Recharge - 9.80 Minute Stand-by - 208 V, 230 V Input - 208 V AC, 230 V AC Output - Sine Wave - 1 x IEC 320-C19, 2 x IEC Jumper, 8 x IEC 320-C13 (SMX2200R2HVNC)
SMX2200R2HVNC - UPS - RACK/TOWER - 1980WATT - USB - 8 IEC 320 C13,2 IEC JUMPERS,
Manufacturer Part Number: SMX2200R2HVNC
User Manual PDFAPC Smart-UPS X 2200VA Rack/Tower LCD 200-240V with Network Card
MANUFACTURER NAME: Apc Schneider
MANUFACTURER PART NUMBER: SMX2200R2HVNC
UPC EAN CODE: 731304327738
LANGUAGE: EN
MARKET:US
| General Information: | |

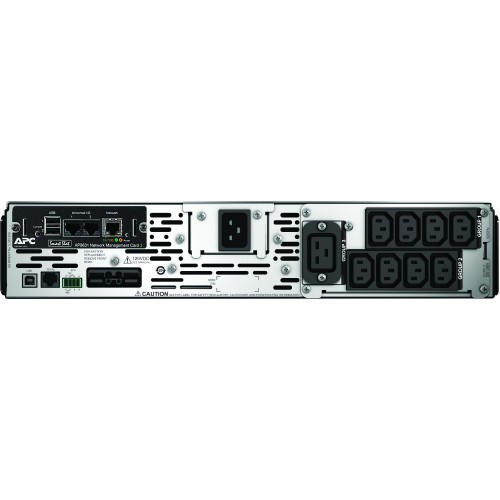

This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 2200VA line interactive 2U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with IEC 320 C20 input (includes BS1363A, IEC 320 C20 and Schuko CEE 7/EU1-16P power cords), 8x IEC 320 C13 and 1x IEC 320 C19 outlets. The UPS has a preinstalled Network Management Card for UPS network-based monitoring and management. The Smart-UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms. The SMX UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This is compatible with dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. The Smart-UPS comes with a pair of tower-mounting stabilizing feet and rack-mounting brackets. It comes with APC temperature sensor AP9335T for monitoring temperature. The 3 switchable outlet groups allow more granular management of the power supplied to your devices. The Emergency Power Off feature enables the UPS to remotely shutdown during emergencies. | |
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | SMX2200R2HVNC |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Brand Name | APC by Schneider Electric |
| Product Line | Smart-UPS |
| Product Name | Smart-UPS X 2200VA Rack/Tower LCD 200-240V with Network Card |
| Product Type | Line-interactive UPS |
| Product UPC | 731304327738 |
| Technical Information: | |
| Plug/Connector Type | British BS1363A
IEC 320-C20 |
| Receptacle Type | Schuko CEE 7/EU1-16P |
| Receptacle Detail | 1 x IEC 320-C19
2 x IEC Jumper 8 x IEC 320-C13 |
| Number of Battery & Surge Outlets | 11 |
| Cord Length | 6 ft |
| Transfer Time | 10 ms |
| Phase | Single Phase |
| Power Description: | |
| Load Capacity (VA) | 2200 VA |
| Load Capacity (Watt) | 1980 W |
| Input Voltage | 208 V AC
230 V AC |
| Output Voltage | 208 V AC
230 V AC |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 645 J |
| Battery Information: | |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 9.80 Minute |
| Typical Battery Recharge Time | 3 Hour |
| Physical Characteristics: | |
| Product Color | Black |
| Height | 3.3" |
| Width | 17" |
| Depth | 26.3" |
| Rack Height | 2U |
| Form Factor | Tower |
| Weight (Approximate) | 82.10 lb |
| Miscellaneous: | |
| What's in the box | |
| Country of Origin | Philippines |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty: | |
| Warranty | 3 Year |
| Additional Warranty Information | UPS: 36 month(s)|Battery: 24 month(s) |
