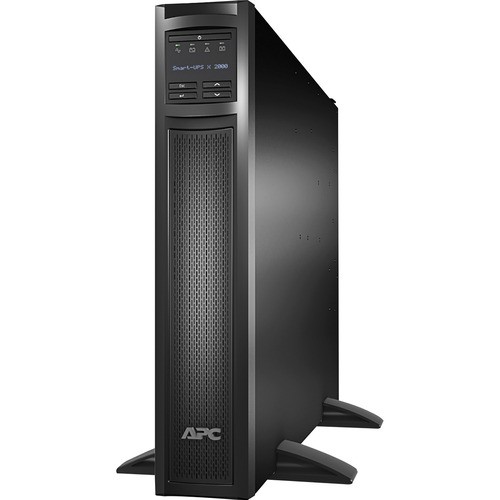

APC by Schneider Electric Smart-UPS X 1920VA Rack/Tower UPS - 2U Rack-mountable - AVR - 3 Hour Recharge - 10.90 Minute Stand-by - 120 V Input - 120 V AC Output - Sine Wave - Serial Port - 1 x NEMA L5-20R, 3 x NEMA 5-15R, 3 x NEMA 5-20R - 7 x Battery/ (SMX2KR2UNCX145)
APC by Schneider Electric Smart-UPS X 1920VA Rack/Tower UPS - 2U Rack-mountable - AVR - 3 Hour Recharge - 10.90 Minute Stand-by - 120 V Input - 120 V AC Output - Sine Wave - Serial Port - 1 x NEMA L5-20R, 3 x NEMA 5-15R, 3 x NEMA 5-20R - 7 x Battery/ (SMX2KR2UNCX145)
Part Number: SMX2KR2UNCX145
Condition: New
Availability:
Manufacturer Drop Ship
Best of Cleveland Award in the Computers category
Compsource is honored to be named to the Inc. 500|5000 list
Ranked among the top 500 companies
Microsoft authorized Education reseller
HP Qualified Supplies Partner
BBB Accredited Business Since 2000
- Shipping Insurance
- Price Match Guarantee
- Terms of Service Guarantee
- Identity Theft Protection
Product Specifications
APC by Schneider Electric Smart-UPS X 1920VA Rack/Tower UPS - 2U Rack-mountable - AVR - 3 Hour Recharge - 10.90 Minute Stand-by - 120 V Input - 120 V AC Output - Sine Wave - Serial Port - 1 x NEMA L5-20R, 3 x NEMA 5-15R, 3 x NEMA 5-20R - 7 x Battery/ (SMX2KR2UNCX145)
Smart-UPS X 1920VA Rack/Tower
Manufacturer Part Number: SMX2KR2UNCX145
Apc Schneider Brochure PDF 2U Rack-mountable - AVR - 3 Hour Recharge - 10.90 Minute Stand-by - 120 V AC Input - 120 V AC Output - 3 x NEMA 5-15R, 1 x NEMA L5-20R, 3 x NEMA 5-20R
MANUFACTURER NAME: Apc Schneider
MANUFACTURER PART NUMBER: SMX2KR2UNCX145
UPC EAN CODE: 731304343271
LANGUAGE: EN
MARKET:US
| General Information: | |
This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 2000VA line interactive 2U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with NEMA 5-20P input, 3x NEMA 5-15R, 3x NEMA 5-20R and 1x NEMA L5-20R outlets. The UPS has a preinstalled Network Management Card for UPS network-based monitoring and management. The Smart-UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms. The SMX UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This is compatible with dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. The Smart-UPS comes with a pair of tower-mounting stabilizing feet and rack-mounting brackets. It comes with APC temperature sensor AP9335T for monitoring temperature. The 3 switchable outlet groups allow more granular management of the power supplied to your devices. The Emergency Power Off feature enables the UPS to remotely shutdown during emergencies. | |
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | SMX2KR2UNCX145 |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Brand Name | APC by Schneider Electric |
| Product Line | Smart-UPS |
| Product Series | X |
| Product Name | Smart-UPS X 1920VA Rack/Tower UPS |
| Product Type | Line-interactive UPS |
| Product UPC | 731304343271 |
| Technical Information: | |
| AVR | Yes |
| Plug/Connector Type | NEMA L5-20P |
| Receptacle Type | NEMA L5-20P |
| Receptacle Detail | 1 x NEMA L5-20R
3 x NEMA 5-15R 3 x NEMA 5-20R |
| Number of Battery & Surge Outlets | 7 |
| Cord Length | 10 ft |
| Transfer Time | 4 ms |
| Phase | Single Phase |
| Application/Usage | Server
POS Terminal Router Switch Network Hub Critical System Storage Device Network Device Business Security System Communication System IT Equipment |
| Power Description: | |
| Load Capacity (VA) | 1920 VA |
| Load Capacity (Watt) | 1800 W |
| Input Voltage | 120 V AC |
| Input Voltage Range | 70 V AC - 153 V AC |
| Output Voltage | 120 V AC |
| Input Frequency | 60 Hz |
| Output Frequency | 60 Hz |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 540 J |
| Management: | |
| Network Management | USB |
| Alarm | On Battery
Low Battery Overload Configurable Delay Changing Utility Power UPS Power Condition |
| Controls/Indicators: | |
| Status Indicators | LED Status Indicators:
|
| Interfaces/Ports: | |
| Serial Port | Yes |
| Network (RJ-45) | Yes |
| USB (HID Compliant) Port | Yes |
| Battery Information: | |
| Number of Batteries | 1 |
| Battery Characteristics | Maintenance-free, Sealed, Leak-proof |
| Battery Chemistry | Lead Acid |
| Battery Energy | 2484 kJ |
| Backup/Run Time (Full Load) | 10.90 Minute |
| Backup/Run Time (Half Load) | 27.60 Minute |
| Hot Swappable | Yes |
| Typical Battery Recharge Time | 3 Hour |
| Replaceable Battery | Yes |
| Environmental Conditions: | |
| Maximum Operating Elevation | 9842.52 ft |
| Maximum Storage Elevation | 49212.60 ft |
| Storage Temperature | 5°F (-15°C) - 113°F (45°C) |
| Storage Relative Humidity | 0% - 95% |
| Maximum Operating Temperature | 104°F (40°C) |
| Sound Emission (A-Weighted) | 55 dB(A) |
| Thermal Dissipation | 59.49 W |
| Physical Characteristics: | |
| Product Color | Black |
| Height | 3.3" |
| Width | 17" |
| Depth | 26.3" |
| Rack Height | 2U |
| Form Factor | Rack-mountable |
| Weight (Approximate) | 84.77 lb |
| Miscellaneous: | |
| What's in the box | |
| Software Included | Powerchute® Business Edition Software |
| Country of Origin | Philippines |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS)
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) Battery Directive |
| Warranty: | |
| Warranty | 3 Year |
| Additional Warranty Information | UPS: 36 month(s)|Battery: 24 month(s) |
