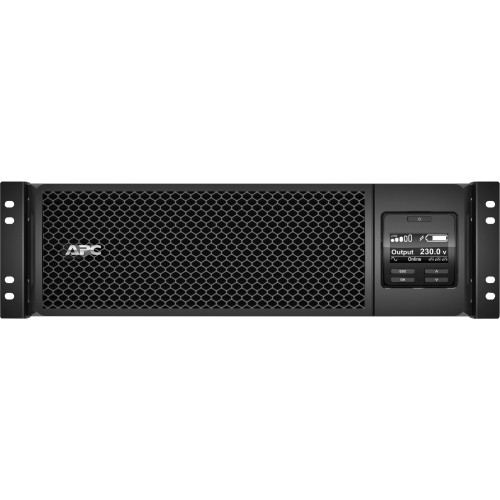

APC Smart-UPS 5000VA Rack-mountable UPS - 5000 VA/4500 W - 208 V AC, 230 V AC - 4 Minute - 3U Rack-mountable - 4 Minute (SRT5KRMXLW-HW)
APC Smart-UPS 5000VA Rack-mountable UPS - 5000 VA/4500 W - 208 V AC, 230 V AC - 4 Minute - 3U Rack-mountable - 4 Minute (SRT5KRMXLW-HW)
Part Number: SRT5KRMXLW-HW
Condition: New
Availability:
Manufacturer Drop Ship
Real time availability
Best of Cleveland Award in the Computers category
Compsource is honored to be named to the Inc. 500|5000 list
Ranked among the top 500 companies
Microsoft authorized Education reseller
HP Qualified Supplies Partner
BBB Accredited Business Since 2000
- Shipping Insurance
- Price Match Guarantee
- Terms of Service Guarantee
- Identity Theft Protection
Product Specifications
APC Smart-UPS 5000VA Rack-mountable UPS - 5000 VA/4500 W - 208 V AC, 230 V AC - 4 Minute - 3U Rack-mountable - 4 Minute (SRT5KRMXLW-HW)
SMARTUPS SRT 5000VA RackMount 208/230VPERP - HW
Manufacturer Part Number: SRT5KRMXLW-HW
User Manual PDF
Note:
- The full product specifications below are from the manufacturer and may contain information related to other package quantities that will not apply to the product that you are reviewing. Please confirm the actual content and/or package quantity from the main product specifications page.
- These specifications may represent the entire product series/model/line to which this product belongs with specific configuration differences between the individual products stated.
- These specifications may have been copied from the same product in other region/country in which case there might be minor differences in region-specific data such as Input Voltage, Terms of Warranty etc.
Technical Specifications
Output
Output Power Capacity: 4500 Watts / 5000 VA
Max Configurable Power: 4500 Watts / 5000 VA
Nominal Output Voltage: 208V, 230V
Output Voltage Distortion: Less than 3%
Output Frequency (sync to mains): 50/60Hz +/- 3 Hz
Other Output Voltages: 220, 230, 240
Crest Factor: 3 : 1
Topology: Double Conversion Online
Waveform Type: Sine wave
Output Connections: (1) Hard Wire 3-wire (2PH + G), (1) Hard Wire 3-wire (H N + G)
Bypass: Internal Bypass (Automatic and Manual)
Input
Nominal Input Voltage: 208V, 230V
Input Frequency: 45 - 65 Hz (auto sensing)
Input Connections: Hard Wire 3-wire (2PH + G), Hard Wire 3 wire (1PH+N+G)
Input voltage range for main operations: 160 - 275V
Other Input Voltages: 220, 230, 240
Batteries & Runtime
Battery Type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical recharge time: 1.50 hour(s)
Replacement Battery: APCRBC140
RBC Quantity: 1
Extended Run Options: APC Smart-UPS SRT 5000VA RM 208/230V HW
Communications & Management
Interface Port(s): Contact Closure, RJ-45 10/100 Base-T, RJ-45 Serial, Smart-Slot, USB
Available SmartSlot Interface Quantity: 1
Control panel: Multi-function LCD status and control console
Audible Alarm: Audible and visible alarms prioritized by severity
Emergency Power Off (EPO): Yes
Surge Protection and Filtering
Surge energy rating: 480 Joules
Physical
Maximum Height: 130.00 mm
Maximum Width: 432.00 mm
Maximum Depth: 719.00 mm
Rack Height: 3U
Net Weight: 55.79 KG
Shipping Weight: 68.04 KG
Shipping Height: 330.00 mm
Shipping Width: 610.00 mm
Shipping Depth: 960.00 mm
Color: Black
Units per Pallet: 6.00
Environmental
Operating Environment: 0 - 40 °C
Operating Relative Humidity: 0 - 95% no%
Operating Elevation: 0-3000 meters
Storage Temperature: -15 - 45 °C
Storage Relative Humidity: 0 - 95% no%
Storage Elevation: 0-15000 meters
Audible noise at 1 meter from surface of unit: 55.00 dBA
Online Thermal Dissipation: 931.00 BTU/hr
Protection Class: IP 20
Conformance
Regulatory Approvals: CE, ENERGY STAR (USA), FCC Part 15 Class A, UL 1778
Standard Warranty: 3 years repair or replace (excluding battery) and 2 years for battery
Sustainable Offer Status
RoHS: Compliant
REACH: REACH: Contains No SVHCs
Battery Directive: Compliant
Battery Notes: Contains Lithium Coin Cell
MANUFACTURER NAME: Apc Schneider
MANUFACTURER PART NUMBER: SRT5KRMXLW-HW
UPC EAN CODE: 098379063498
LANGUAGE: EN
MARKET:US
| General Information: | |
This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 5kVA on-line 3U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with hard wire 3-wire (2P+E) and 3-wire (1P+N+E) inputs, hard wire 3-wire (H+N+E), 3-wire (H+N+G) and 3-wire (2PH+G) outlets. The UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It has an additional SmartSlot for optional accessory card such as Dry Contact I/O card. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. | |
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | SRT5KRMXLW-HW |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Brand Name | APC by Schneider Electric |
| Product Line | Smart-UPS |
| Product Series | SRT |
| Product Name | Smart-UPS 5000VA Rack-mountable UPS |
| Packaged Quantity | 1 Each |
| Product Type | Double Conversion Online UPS |
| Product UPC | 098379063498 |
| Technical Information: | |
| Receptacle Detail | 1 x Hard Wire 3-wire (H N + E)
1 x Hard Wire 3-wire (2PH + G) |
| Number of Battery & Surge Outlets | 3 |
| Cord Length | 2.99 ft |
| Phase | Single Phase |
| Power Description: | |
| Load Capacity (VA) | 5000 VA |
| Load Capacity (Watt) | 4500 W |
| Input Voltage | 208 V AC
230 V AC |
| Output Voltage | 208 V AC
230 V AC |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 480 J |
| Battery Information: | |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 4 Minute |
| Typical Battery Recharge Time | 1.50 Hour |
| Physical Characteristics: | |
| Product Color | Black |
| Height | 5.1" |
| Width | 17" |
| Depth | 28.3" |
| Rack Height | 3U |
| Form Factor | Rack-mountable |
| Weight (Approximate) | 123 lb |
| Miscellaneous: | |
| What's in the box | |
| Country of Origin | Philippines |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty: | |
| Warranty | 3 Year |
| Additional Warranty Information | UPS: 36 month(s)|Battery: 24 month(s) |
