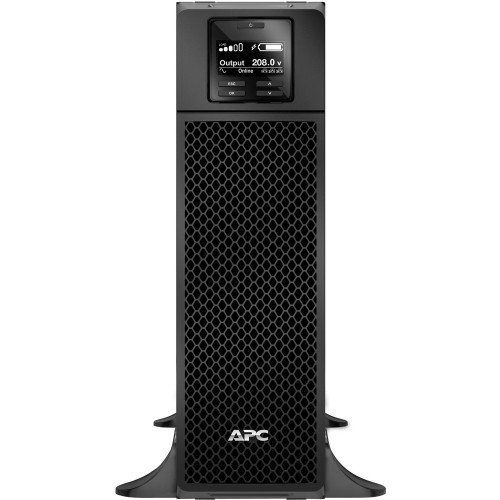

APC by Schneider Electric Smart-UPS SRT 5000VA 208V IEC - 6U Rack-mountable - 1.50 Hour Recharge - 4 Minute Stand-by - 208 V Input - 208 V AC Output - Sine Wave - 2 x IEC Jumper, 4 x IEC 60320 C13, 4 x IEC 60320 C19 - 10 x Battery/Surge Outlet (SRT5K (SRT5KXLT-IEC)
APC by Schneider Electric Smart-UPS SRT 5000VA 208V IEC - 6U Rack-mountable - 1.50 Hour Recharge - 4 Minute Stand-by - 208 V Input - 208 V AC Output - Sine Wave - 2 x IEC Jumper, 4 x IEC 60320 C13, 4 x IEC 60320 C19 - 10 x Battery/Surge Outlet (SRT5K (SRT5KXLT-IEC)
Part Number: SRT5KXLT-IEC
Condition: New
Availability:
Manufacturer Drop Ship
Real time availability
Best of Cleveland Award in the Computers category
Compsource is honored to be named to the Inc. 500|5000 list
Ranked among the top 500 companies
Microsoft authorized Education reseller
HP Qualified Supplies Partner
BBB Accredited Business Since 2000
- Shipping Insurance
- Price Match Guarantee
- Terms of Service Guarantee
- Identity Theft Protection
Product Specifications
APC by Schneider Electric Smart-UPS SRT 5000VA 208V IEC - 6U Rack-mountable - 1.50 Hour Recharge - 4 Minute Stand-by - 208 V Input - 208 V AC Output - Sine Wave - 2 x IEC Jumper, 4 x IEC 60320 C13, 4 x IEC 60320 C19 - 10 x Battery/Surge Outlet (SRT5K (SRT5KXLT-IEC)
SMART UPS SRT 5000VA 208V IEC PERP -
Manufacturer Part Number: SRT5KXLT-IEC
Apc Schneider Brochure PDF
User Manual PDF
Note:
- The full product specifications below are from the manufacturer and may contain information related to other package quantities that will not apply to the product that you are reviewing. Please confirm the actual content and/or package quantity from the main product specifications page.
- These specifications may represent the entire product series/model/line to which this product belongs with specific configuration differences between the individual products stated.
- These specifications may have been copied from the same product in other region/country in which case there might be minor differences in region-specific data such as Input Voltage, Terms of Warranty etc.
Technical Specification
Output
-
Output power capacity
4.25 KWatts / 5.0 kVA -
Max Configurable Power (Watts)
4.25 KWatts / 5.0 kVA -
Nominal Output Voltage
208V -
Output Voltage Distortion
Less than 2% -
Output Frequency (sync to mains)
50/60Hz +/- 3 Hz -
Other Output Voltages
240 -
Load Crest Factor
3 : 1 -
Topology
Double Conversion Online -
Waveform type
Sine wave -
Output Connections
(4) IEC 320 C19 (Battery Backup)
(4) IEC 320 C13 (Battery Backup)
-
Bypass
Internal Bypass (Automatic and Manual)
-
Nominal Input Voltage
208V -
Input frequency
40 - 70 Hz (auto sensing) -
Input Connections
NEMA L6-30P -
Cord Length
10 ft ( 3.05 meters ) -
Input voltage range for main operations
160 - 275 V -
Input voltage adjustable range for mains operation
100 - 275 (half load) V -
Number of Power Cords
1 -
Other Input Voltages
240
-
Battery type
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof -
Typical recharge time
1.5 hour(s) -
Replacement Battery
APCRBC140 -
RBC Quantity
1 -
Extendable Run Time
1 -
Battery Volt-Amp-Hour Capacity
840 -
Extended Run Options
APC-Smart-UPS-SRT-5000VA-208V-IEC -
Runtime
View Runtime Graph
View Runtime Chart
-
Efficiency
View Efficiency Graph
-
Interface Port(s)
RJ-45 10/100 Base-T , RJ-45 Serial , Smart-Slot , USB -
Control panel
Multi-function LCD status and control console -
Audible Alarm
Audible and visible alarms prioritized by severity -
Emergency Power Off (EPO)
Yes -
Available SmartSlot Interface Quantity
1
-
Surge energy rating
480 Joules
-
Maximum Height
17.0 inches ( 432 , 43.2 CM ) -
Maximum Width
5.1 inches ( 130 , 13.0 CM ) -
Maximum Depth
28.32 inches ( 719 , 71.9 CM ) -
Net Weight
123.0 lbs. ( 55.79 KG ) -
Shipping weight
142.0 lbs. ( 64.41 KG ) -
Shipping Height
12.99 inches ( 330 , 33.0 CM ) -
Shipping Width
24.02 inches ( 610 , 61.0 CM ) -
Shipping Depth
37.8 inches ( 960 , 96.0 CM ) -
Units per Pallet
6.0
-
Operating Environment
32 - 104 °F ( 0 - 40 °C ) -
Operating Relative Humidity
0 - 95% no % -
Operating Elevation
0-10000 ft ( 0-3000 meters ) -
Storage Temperature
-15 - 45 °C -
Storage Relative Humidity
0 - 95% no % -
Storage Elevation
0-50000 ft ( 0-15000 meters ) -
Audible noise at 1 meter from surface of unit
55.0 dBA -
Online thermal dissipation
1047.0 BTU/hr -
Protection Class
IP 20
-
Approvals
CSA C22.2 No.107.3-05, ENERGY STAR (USA), FCC Part 15 Class A, UL 1778 -
Standard warranty
3 years repair or replace (excluding battery) and 2 years for battery
-
RoHS
Compliant
MANUFACTURER NAME: Apc Schneider
MANUFACTURER PART NUMBER: SRT5KXLT-IEC
UPC EAN CODE: 731304306627
LANGUAGE: EN
MARKET:US
| General Information: | |
This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 5kVA on-line tower UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with NEMA L6-30P input, 4x IEC 320 C13 and 4x IEC 320 C19 outlets, and 2x IEC jumper cables. The UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It has an additional SmartSlot for optional accessory card such as Dry Contact I/O card. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. The UPS is compatible with SRTRK2 (4-post) and SRTRK3 (2-post) rail kits sold separately. | |
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | SRT5KXLT-IEC |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Brand Name | APC by Schneider Electric |
| Product Line | Smart-UPS On-Line |
| Product Name | Smart-UPS SRT 5000VA 208V IEC |
| Packaged Quantity | 1 Each |
| Product Type | Double Conversion Online UPS |
| Product UPC | 731304306627 |
| Technical Information: | |
| Plug/Connector Type | NEMA L6-30P |
| Receptacle Type | NEMA L6-30P |
| Receptacle Detail | 2 x IEC Jumper
4 x IEC 60320 C13 4 x IEC 60320 C19 |
| Number of Battery & Surge Outlets | 10 |
| Cord Length | 10.01 ft |
| Phase | Single Phase |
| Power Description: | |
| Load Capacity (VA) | 5000 VA |
| Load Capacity (Watt) | 4250 W |
| Input Voltage | 208 V AC |
| Output Voltage | 208 V AC |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 480 J |
| Battery Information: | |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 4 Minute |
| Typical Battery Recharge Time | 1.50 Hour |
| Physical Characteristics: | |
| Product Color | Black |
| Height | 17" |
| Width | 5.1" |
| Depth | 28.3" |
| Rack Height | 6U |
| Form Factor | Rack-mountable |
| Weight (Approximate) | 123 lb |
| Miscellaneous: | |
| What's in the box | |
| Energy Star | Yes |
| Country of Origin | Philippines |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS)
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Warranty: | |
| Warranty | 3 Year |
| Additional Warranty Information | Battery: 24 month(s)|UPS: 36 month(s) |
