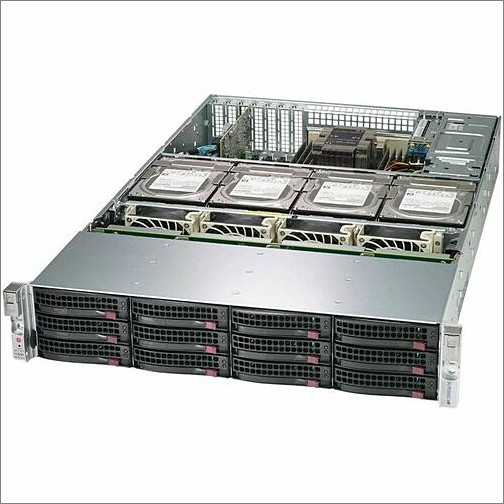

Supermicro SuperServer SSG-620P-ACR16H Barebone System - 2U Rack-mountable - Socket LGA-4189 - 2 x Processor Support - Intel C621A Chip - 4 TB DDR4 SDRAM DDR4-3200/PC4-25600 Maximum RAM Support - 16 Total Memory Slots - Serial ATA RAID Supported, NVM
Supermicro SuperServer SSG-620P-ACR16H Barebone System - 2U Rack-mountable - Socket LGA-4189 - 2 x Processor Support - Intel C621A Chip - 4 TB DDR4 SDRAM DDR4-3200/PC4-25600 Maximum RAM Support - 16 Total Memory Slots - Serial ATA RAID Supported, NVM
Part Number: SSG-620P-ACR16H
Condition: New
Availability:
Out of stock
Real time availability
Notify Me
Best of Cleveland Award in the Computers category
Compsource is honored to be named to the Inc. 500|5000 list
Ranked among the top 500 companies
Microsoft authorized Education reseller
HP Qualified Supplies Partner
BBB Accredited Business Since 2000
- Shipping Insurance
- Price Match Guarantee
- Terms of Service Guarantee
- Identity Theft Protection
Product Specifications
Supermicro SuperServer SSG-620P-ACR16H Barebone System - 2U Rack-mountable - Socket LGA-4189 - 2 x Processor Support - Intel C621A Chip - 4 TB DDR4 SDRAM DDR4-3200/PC4-25600 Maximum RAM Support - 16 Total Memory Slots - Serial ATA RAID Supported, NVM
Supermicro SV SSG-620P-ACR16H 2U Xeon Socket P+ LG-4189 12x3.5HS 1600W
Manufacturer Part Number: SSG-620P-ACR16H
MANUFACTURER NAME: Supermicro
MANUFACTURER PART NUMBER: SSG-620P-ACR16H
UPC EAN CODE:
LANGUAGE: EN
MARKET:US
| General Information: | |
| Manufacturer | Supermicro Computer, Inc |
| Manufacturer Part Number | SSG-620P-ACR16H |
| Manufacturer Website Address | http://www.supermicro.com |
| Brand Name | Supermicro |
| Product Line | SuperServer |
| Product Model | SSG-620P-ACR16H |
| Product Name | Storage SuperServer SSG-620P-ACR16H |
| Product Type | Server Barebone System |
| Processor: | |
| Number of Processors Supported | 2 |
| Processor Socket | Socket LGA-4189 |
| Processor Supported | Xeon |
| 64-bit Processing | Yes |
| Chipset: | |
| Chipset Manufacturer | Intel |
| Chipset Model | C621A |
| Memory: | |
| Maximum Memory Supported | 4 TB |
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-3200/PC4-25600 |
| Total Number of Memory Slots | 16 |
| Controllers: | |
| Controller Type | Serial ATA
NVMe Serial Attached SCSI (SAS) |
| RAID Supported | Yes |
| Network & Communication: | |
| Ethernet Technology | Gigabit Ethernet
10 Gigabit Ethernet |
| I/O Expansions: | |
| Number of Total Expansion Bays | 18 |
| Number of 3.5" Bays | 16 |
| Total Number of Expansion Slots | 5 |
| Number of PCI Express x8 Slots | 1 |
| Number of PCI Express x16 Slots | 4 |
| Number of M.2 Interfaces | 1 |
| Interfaces/Ports: | |
| Total Number of USB Ports | 4 |
| Number of USB 3.0 Ports | 4 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 3 |
| Number of VGA Ports | 1 |
| Power Description: | |
| Input Voltage | 120 V AC
230 V AC |
| Number of Power Supplies Installed | 2 |
| Maximum Power Supply Wattage | 1600 W |
| Thermal Design Power | 270 W |
| Physical Characteristics: | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Rack-mountable |
| Rack Height | 2U |
| Height | 3.5" |
| Width | 17.2" |
| Depth | 27.7" |
| Weight (Approximate) | 41.50 lb |
| Miscellaneous: | |
| What's in the box |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty: | |
| Warranty | 1 Year |
| Additional Warranty Information | Supermicro provides a three-year warranty for labor and one-year warranty for parts. |
