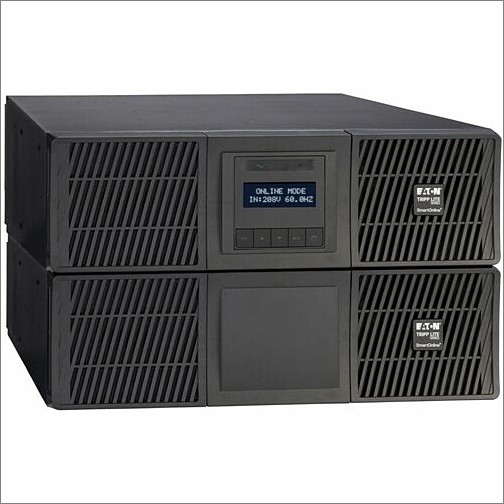

Eaton Tripp Lite Series SmartOnline 6000VA 5400W 120/208V Online Double-Conversion UPS with Stepdown Transformer and Maintenance Bypass - 5-20R/L6-20R/L6-30R Outlets, L6-30P Input, Network Card Included, Extended Run, 6U - 6U Rack/Tower - AVR - 3 Min (SU6000RTFMB)
Eaton Tripp Lite Series SmartOnline 6000VA 5400W 120/208V Online Double-Conversion UPS with Stepdown Transformer and Maintenance Bypass - 5-20R/L6-20R/L6-30R Outlets, L6-30P Input, Network Card Included, Extended Run, 6U - 6U Rack/Tower - AVR - 3 Min (SU6000RTFMB)
Part Number: SU6000RTFMB
Condition: New
Availability: 9
Real time availability
Best of Cleveland Award in the Computers category
Compsource is honored to be named to the Inc. 500|5000 list
Ranked among the top 500 companies
Microsoft authorized Education reseller
HP Qualified Supplies Partner
BBB Accredited Business Since 2000
- Shipping Insurance
- Price Match Guarantee
- Terms of Service Guarantee
- Identity Theft Protection
Also Available
Product Specifications
Eaton Tripp Lite Series SmartOnline 6000VA 5400W 120/208V Online Double-Conversion UPS with Stepdown Transformer and Maintenance Bypass - 5-20R/L6-20R/L6-30R Outlets, L6-30P Input, Network Card Included, Extended Run, 6U - 6U Rack/Tower - AVR - 3 Min (SU6000RTFMB)
6000VA 5400W 120/208V ONLINE DOUBLE-CONVERSION UPS W STEPDOWN TRANSFORMER AND MA
Manufacturer Part Number: SU6000RTFMB
Eaton Tripp Lite series UPS w Stepdown Transformer and Maintenance Bypass Panel 6000VA 5400W
MANUFACTURER NAME: Eaton
MANUFACTURER PART NUMBER: SU6000RTFMB
UPC EAN CODE: 037332286383
LANGUAGE: EN
MARKET:US
| General Information: | |
6kVA/5.4kW/120V/208V Battery Backup for IT Installations and Edge Networks This SmartOnline® rack-mount online double-conversion UPS system provides uninterrupted battery backup and AC power protection against blackouts, brownouts, surges and line noise that can damage valuable IT equipment or destroy data. An included stepdown transformer converts your UPS, utility or generator's 208V high-voltage input to 120V low-voltage output to allow connection of a wider range of components. Expandable Internal Battery Backup Keeps You Operational Through Power Outages The field-replaceable, hot-swappable valve regulated lead acid (VRLA) battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. Automatic restart after power outages reduces costly on-site visits. You can also connect up to four extended battery modules (BP180RT, sold separately) for hours of extended runtime. Included Bypass Switch Isolates UPS from Connected Loads for Maintenance The manual bypass lets you remove the UPS for maintenance without disrupting power to the connected load. The bypass reroutes utility power to keep essential equipment operational while you're servicing or replacing the UPS system. Pre-Installed Network Interface Offers 24/7 Remote Access The WEBCARDLXE network interface turns the SU6000RTFMB into a managed device on your network. It enables full remote configuration and SNMP-based UPS management, including load shedding, safe shutdowns and automated alerts. The IP-based Auto Probe feature ensures continuous network uptime by communicating with other network devices, detecting lost connectivity and automatically rebooting IT equipment without an on-site visit. Optional EnviroSense2 modules (E2MT, E2MTDO and E2MTHDI, all sold separately) provide a variety of environmental monitoring and control options. NEMA Outlets Protect Your Connected Components One L6-30R, two L6-20R and 18 5-20R managed outlets provide connected equipment with pure sine wave AC output and allow you to manage power consumption down to the outlet group level. Power provided by these outlets is filtered to protect connected equipment against damaging surges and line noise. The SU6000RTFMB also supports hardwired output. Intuitive LCD Interface Keeps You Informed at a Glance The menu-driven LCD provides control settings and critical information to help diagnose any issues, including alarm and fault notifications. The interface rotates to accommodate both rack-mount and tower configurations, and it tilts up to 45 degrees for more comfortable viewing. Advanced Communications Ports Allow for Automatic Saves and Shutdowns RS-232 and USB ports connect to a serial-enabled device for a variety of communication options (cables are included). A dry-contact relay port can be programmed through the LCD to provide reliable communications to automation and industrial components. The RPO/ROO connectors permit emergency shutdown or remote restart of all connected equipment. Versatile Installation Options You can mount the SU6000RTFMB in 6U of space in an EIA-standard 19-inch rack using the included 4-post rail kit or an optional 2-post rail kit (RK2PC, sold separately, one required for each UPS, EBM or transformer). You can also adapt it for tower installation using the included support stands. The 10-foot power cord with NEMA L6-30P plug connects to a compatible AC outlet. A cable gland is included for alternate hardwire input. | |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | SU6000RTFMB |
| Manufacturer Website Address | http://www.eaton.com |
| Brand Name | Tripp Lite series |
| Product Line | SmartOnline |
| Product Model | SU6000RTFMB |
| Product Name | SmartOnline SU6000RTFMB 6000VA Rack/tower UPS |
| Product Type | Double Conversion Online UPS |
| Product UPC | 037332286383 |
| Technical Information: | |
| AVR | Yes |
| Plug/Connector Type | NEMA L6-30P
Hardwired |
| Receptacle Type | NEMA L6-20R
NEMA L6-30R Hardwired NEMA 5-20R |
| Receptacle Detail | 2 x NEMA L6-20R
18 x NEMA 5-20R 1 x NEMA L6-30R |
| Cord Length | 10 ft |
| Transfer Time | 0 ns |
| EMI/RFI Noise Filter | Yes |
| Phase | Single Phase |
| Efficiency Detail | 98% (ECO Mode) |
| Application/Usage | Mission Critical Equipment
IT Equipment Network Device |
| Surge Suppression | Yes |
| Features | Audible Alarm
Cold Start Function Green Energy Saving |
| Power Description: | |
| Load Capacity (VA) | 6000 VA |
| Load Capacity (Watt) | 5400 W |
| Input Voltage | 230 V AC |
| Input Current | 24.80 A |
| Output Voltage | 230 V AC
240 V AC 220 V AC 208 V AC 200 V AC 100 V AC 110 V AC 120 V AC |
| Output Frequency | 50 Hz
60 Hz |
| Waveform Type | Pure Sine Wave |
| Circuit Breaker | Yes |
| Output Power Factor | 0.9 |
| Display & Graphics: | |
| Display | LCD |
| Management: | |
| Network Management | Network Card
DB-9 RS-232 Dry Contact USB SNMP |
| Alarm | Utility Power Failure
Low Battery Overload Battery Fault Remote Shutdown |
| Controls/Indicators: | |
| Status Indicators | LED Indicators: 4 status-indicating LEDs |
| Interfaces/Ports: | |
| Serial Port | Yes |
| USB | Yes |
| Battery Information: | |
| DC System Voltage | 180 V DC |
| Battery Characteristics | Valve-regulated |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 3 Minute |
| Backup/Run Time (Half Load) | 8 Minute |
| Hot Swappable | Yes |
| Replaceable Battery | Yes |
| Environmental Conditions: | |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Thermal Dissipation | 555.37 W |
| Physical Characteristics: | |
| Height | 10.2" |
| Width | 17.3" |
| Depth | 34" |
| Rack Height | 6U |
| Form Factor | Rack/Tower |
| Weight (Approximate) | 206.50 lb |
| Miscellaneous: | |
| What's in the box |
|
| Energy Star | Yes |
| Country of Origin | Philippines |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty: | |
| Warranty | 2 Year |
| Additional Warranty Information | $250,000 Ultimate Lifetime Insurance |
