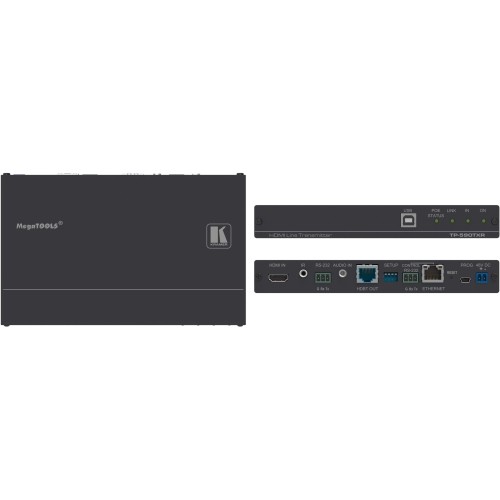

Kramer MegaTOOLS TP-590TXR Video Extender Transmitter - 1 Input Device - 330 ft Range - 2 x Network (RJ-45) - 2 x USB - 1 x HDMI In - 4K - 4096 x 2160 - Twisted Pair - Rack-mountable
Kramer MegaTOOLS TP-590TXR Video Extender Transmitter - 1 Input Device - 330 ft Range - 2 x Network (RJ-45) - 2 x USB - 1 x HDMI In - 4K - 4096 x 2160 - Twisted Pair - Rack-mountable
Part Number: TP-590TXR
Condition: New
Availability:
Out of stock
Notify Me
Best of Cleveland Award in the Computers category
Compsource is honored to be named to the Inc. 500|5000 list
Ranked among the top 500 companies
Microsoft authorized Education reseller
HP Qualified Supplies Partner
BBB Accredited Business Since 2000
Product Specifications
Kramer MegaTOOLS TP-590TXR Video Extender Transmitter - 1 Input Device - 330 ft Range - 2 x Network (RJ-45) - 2 x USB - 1 x HDMI In - 4K - 4096 x 2160 - Twisted Pair - Rack-mountable
HDMI, Audio, USB, Bidirectional RS232 & IR over HDBaseT 2.0 Twisted P
Manufacturer Part Number: TP-590TXR
TP-590TXR is a high-performance, extended-reach HDBaseT 2.0 transmitter for 4K60Hz (4:2:0) HDMI, USB, Ethernet, RS-232, IR and stereo audio signals over twisted pair. The TP-590TXR converts all input signals into the transmitted HDBaseT 2.0 signal. It extends video signals to up 100m (330ft) over CAT copper cables at up to 4K@60Hz (4:2:0) 24bpp video resolution and provides even further reach for lower HD video resolutions.
- High Performance Standard Extender - Professional HDBaseT extender for providing extended-reach signals over twisted-pair copper infrastructures. TP-590TXR is a standard extender that can be connected to any market-available HDBaseT-compliant extension product. For optimum extension reach and performance, use recommended Kramer cables. HDMI Signal Extension - HDMI 2.0 and HDCP 1.4 compliant. Supports deep color, x.v.Color™, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS-HD, 2K, 4K, and 3D. EDID and CEC signals are passed through from the source to the display. I-EDIDPro™ Kramer Intelligent EDID Processing™ - Intelligent EDID handling, processing and pass-through algorithm that ensures Plug and Play operation for HDMI source and display systems. Multi-channel Audio Transmission - Up to 32 channels of digital stereo uncompressed signals for supporting studio-grade surround sound. Audio Embedding (Adding) - A selectable analog unbalanced stereo audio input is converted into a digital signal and added (embedded) to the transmitted HDMI signal, replacing the embedded HDMI audio input signal. This enables embedding a selectable audio source over HDMI. For example, a presenter can display a video clip and temporarily override the audio of the source media with another audio source, such as from a microphone. USB Extension - USB 2.0 interface data flows in both directions, allowing extension of HID (Human Interface Devices) peripheral devices, such as a mouse or a keyboard. High-bandwidth USB peripheral devices, such as USB isochronous streaming cameras and audio devices, transfer data continuously and periodically. Delivery of their transferred data is not guaranteed by the USB standard and is subject to both USB and HDBaseT line bandwidth management limitations. When such devices are connected, check their functionality to ensure bandwidth limitations are not exceeded. Ethernet Extension - Ethernet interface data flows in both directions, allowing extension of up to 100Mbps Ethernet connectivity for LAN communication and device control. Bidirectional RS-232 Extension - Serial interface data flows in both directions, allowing data transmission and device control. Bidirectional Infrared Extension - IR interface data flows in both directions, allowing remote control of peripheral devices located at either end of the extended line. Cost-effective Maintenance - Status LED indicators for HDMI and HDBT ports facilitate easy local maintenance and troubleshooting. Remote device management via built-in web UI, RS-232 connection and Kramer Network. Local and remote firmware upgrade via mini-USB, RS-232 or Ethernet connection and the K-Upload tool ensure lasting, field-proven deployment. Easy and Elegant Installation - Single cable connectivity for both HDBaseT signals and power. Compact MegaTOOLS™ fan-less enclosure for dropped-ceiling mounting, or side-by-side mounting of 2 units in a 1U rack space with the optional RK-T2B rack adapter.
HDBaseT 2.0 transmitter
Extended-reach - Up to 100m (330ft) at 4K @60Hz (4:2:0)
Video resolution - Up to 4K@60Hz (4:2:0) 24bpp
USB, Ethernet & control signal extension
Stereo analog audio embedding (adding)
PoE provider
Size - MegaTOOLS® - Mount 2 uni
MANUFACTURER NAME: Kramer Electronics
MANUFACTURER PART NUMBER: TP-590TXR
UPC EAN CODE:
LANGUAGE: EN
MARKET:US
| General Information: | |
TP-590TXR is a high-performance, extended-reach HDBaseT 2.0 transmitter for 4K60Hz (4:2:0) HDMI, USB, Ethernet, RS-232, IR and stereo audio signals over twisted pair. The TP-590TXR converts all input signals into the transmitted HDBaseT 2.0 signal. It extends video signals to up 100m (330ft) over CAT copper cables at up to 4K@60Hz (4:2:0) 24bpp video resolution and provides even further reach for lower HD video resolutions.
| |
| Manufacturer | Kramer Electronics LTD |
| Manufacturer Part Number | TP-590TXR |
| Manufacturer Website Address | http://www.kramerelectronics.com |
| Brand Name | Kramer |
| Product Line | MegaTOOLS |
| Product Model | TP-590TXR |
| Product Name | MegaTOOLS TP-590TXR Video Extender Transmitter |
| Product Type | Video Extender Transmitter |
| Technical Information: | |
| Connectivity Technology | Wired |
| Number of Input Devices Supported | 1 |
| Maximum Operating Distance | 330 ft |
| Video: | |
| Graphics Modes | 4K |
| Maximum Video Resolution | 4096 x 2160 |
| Interfaces/Ports: | |
| Network (RJ-45) | Yes |
| HDMI In | Yes |
| USB | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Number of USB Ports | 2 |
| Number of HDMI Inputs | 1 |
| Media & Performance: | |
| Media Type Supported | Twisted Pair |
| Physical Characteristics: | |
| Transmitter Height | 1" |
| Transmitter Width | 7.38" |
| Transmitter Depth | 4.53" |
| Form Factor | Rack-mountable |
| Transmitter Weight (Approximate) | 1.10 lb |
| Miscellaneous: | |
| What's in the box |
|
| Environmentally Friendly | Yes |
