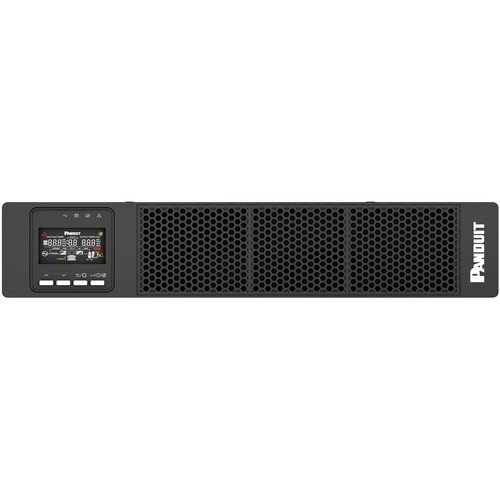

Panduit SmartZone U02N11V 2000VA Rack/Tower UPS - 2U Rack/Tower, Rail Mountable - AVR - 6 Hour Recharge - 120 V AC Input - 100 V AC, 110 V AC, 120 V AC, 115 V AC, 125 V AC Output - Single Phase - Serial Port - 6 x NEMA 5-20R
Panduit SmartZone U02N11V 2000VA Rack/Tower UPS - 2U Rack/Tower, Rail Mountable - AVR - 6 Hour Recharge - 120 V AC Input - 100 V AC, 110 V AC, 120 V AC, 115 V AC, 125 V AC Output - Single Phase - Serial Port - 6 x NEMA 5-20R
Part Number: U02N11V
Condition: New
Availability: 6
Real time availability
Best of Cleveland Award in the Computers category
Compsource is honored to be named to the Inc. 500|5000 list
Ranked among the top 500 companies
Microsoft authorized Education reseller
HP Qualified Supplies Partner
BBB Accredited Business Since 2000
- Shipping Insurance
- Price Match Guarantee
- Terms of Service Guarantee
- Identity Theft Protection
Product Specifications
Panduit SmartZone U02N11V 2000VA Rack/Tower UPS - 2U Rack/Tower, Rail Mountable - AVR - 6 Hour Recharge - 120 V AC Input - 100 V AC, 110 V AC, 120 V AC, 115 V AC, 125 V AC Output - Single Phase - Serial Port - 6 x NEMA 5-20R
2KVA 2U 120V SGL PHASE DOUBLE-CONVERSION.
Manufacturer Part Number: U02N11V
If Stock availability is NOT shown, this item will be custom built and shipped direct from Panduit. Please allow 14 – 21 business days for delivery.
MANUFACTURER NAME: Panduit
MANUFACTURER PART NUMBER: U02N11V
UPC EAN CODE: 613056825253
LANGUAGE: EN
MARKET:US
| General Information: | |
The Panduit ® SmartZone™ UPS with maintenance free VRLA battery, 1-3kVA single phase 120 V and 230 V units is a pure Online Double Conversion system that delivers highly efficient and reliable power protection and power backup for your computer IT equipment. With excellent electrical performance, enhanced intelligent monitoring and network functions, complying with ENERGY STAR ® 2.0, EMC and safety standards to meet the continually growing power demands of Data Center, Enterprise and Edge IT equipment. | |
| Manufacturer | PANDUIT CORP |
| Manufacturer Part Number | U02N11V |
| Manufacturer Website Address | http://www.panduit.com |
| Brand Name | Panduit |
| Product Line | SmartZone |
| Product Model | U02N11V |
| Product Name | SmartZone U02N11V 2000VA Rack/Tower UPS |
| Product Type | Double Conversion Online UPS |
| Product UPC | 613056825253 |
| Technical Information: | |
| AVR | Yes |
| Plug/Connector Type | NEMA 5-20P |
| Receptacle Type | NEMA 5-20R |
| Receptacle Detail | 6 x NEMA 5-20R |
| Dataline Protection | RJ-45 |
| Overload Protection | Yes |
| Transfer Time | 0 ns |
| Phase | Single Phase |
| Application/Usage | Data Center
IT Equipment Enterprise Computer Edge Computing |
| Power Description: | |
| Load Capacity (VA) | 2000 VA |
| Load Capacity (Watt) | 2000 W |
| Input Voltage | 120 V AC |
| Input Voltage Range | 55 V AC - 150 V AC
100 V AC - 125 V AC |
| Output Voltage | 100 V AC
110 V AC 120 V AC 115 V AC 125 V AC |
| Input Frequency | 70 Hz |
| Output Frequency | 60 Hz |
| Waveform Type | Pure Sine Wave |
| Management: | |
| Alarm | Yes |
| Controls/Indicators: | |
| Status Indicators | Colorful LCD with four buttons and LED indicators |
| Interfaces/Ports: | |
| Serial Port | Yes |
| Network (RJ-45) | Yes |
| EPO Port | Yes |
| USB (HID Compliant) Port | Yes |
| Battery Information: | |
| DC System Voltage | 48 V DC |
| Number of Batteries | 4 |
| Battery Characteristics | Valve-regulated, Maintenance-free, Hot-swappable |
| Battery Chemistry | Sealed Lead Acid (VRLA) |
| Battery Size | 12V |
| Battery Capacity | 9000 mAh |
| Backup/Run Time With External Battery Cabinet (Full Load) | 4.28 Minute |
| Backup/Run Time With External Battery Cabinet (Half Load) | 13.50 Minute |
| Battery Life | 5 Year |
| Hot Swappable | Yes |
| Typical Battery Recharge Time | 6 Hour |
| Replaceable Battery | Yes |
| Environmental Conditions: | |
| Maximum Operating Elevation | 9842.52 ft |
| Storage Temperature | -13°F (-25°C) - 131°F (55°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Sound Emission | 55 dB |
| Thermal Dissipation | 156.50 W |
| Physical Characteristics: | |
| Product Color | Black |
| Height | 3.4" |
| Width | 17.3" |
| Depth | 18.1" |
| Rack Height | 2U |
| Form Factor | Rack/Tower
Rail Mountable |
| Weight (Approximate) | 44.09 lb |
| Miscellaneous: | |
| What's in the box |
|
| Software Included | SmartZone Cloud Ready |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Energy Efficiency Certification | ENERGY STAR 2.0 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS)
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Warranty: | |
| Warranty | 5 Year |
| Additional Warranty Information |
|
