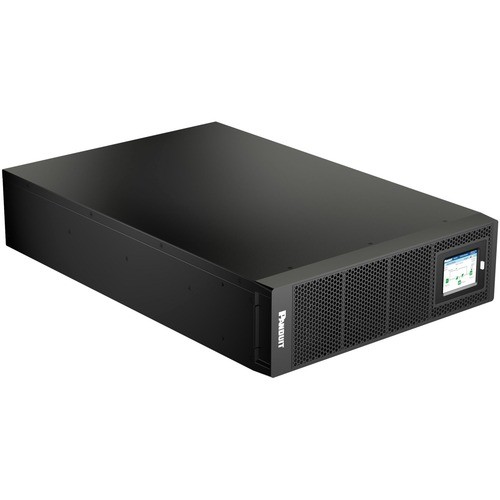

Panduit SmartZone U10N11V 10000VA Rack/Tower/Rail UPS - 6U Rack/Tower/Rail - AVR - 6 Hour Recharge - 4.50 Minute Stand-by - 120 V AC, 230 V AC Input - 208 V AC, 240 V AC Output - 2 x NEMA L6-30R - Serial Port
Panduit SmartZone U10N11V 10000VA Rack/Tower/Rail UPS - 6U Rack/Tower/Rail - AVR - 6 Hour Recharge - 4.50 Minute Stand-by - 120 V AC, 230 V AC Input - 208 V AC, 240 V AC Output - 2 x NEMA L6-30R - Serial Port
Part Number: U10N11V
Condition: New
Availability:
Out of stock
Real time availability
Notify Me
Best of Cleveland Award in the Computers category
Compsource is honored to be named to the Inc. 500|5000 list
Ranked among the top 500 companies
Microsoft authorized Education reseller
HP Qualified Supplies Partner
BBB Accredited Business Since 2000
- Shipping Insurance
- Price Match Guarantee
- Terms of Service Guarantee
- Identity Theft Protection
Product Specifications
Panduit SmartZone U10N11V 10000VA Rack/Tower/Rail UPS - 6U Rack/Tower/Rail - AVR - 6 Hour Recharge - 4.50 Minute Stand-by - 120 V AC, 230 V AC Input - 208 V AC, 240 V AC Output - 2 x NEMA L6-30R - Serial Port
SZ UPS 10KVA 3U 208/240V SING PERP - EA
Manufacturer Part Number: U10N11V
If Stock availability is NOT shown, this item will be custom built and shipped direct from Panduit. Please allow 14 – 21 business days for delivery.
MANUFACTURER NAME: Panduit
MANUFACTURER PART NUMBER: U10N11V
UPC EAN CODE:
LANGUAGE: EN
MARKET:US
| General Information: | |
The Panduit® SmartZone™ UPS with maintenance free VRLA battery, 5-10kVA single phase 208 V and 230 V units is a pure Online Double Conversion system that delivers highly efficient and reliable power protection and power backup for your computer IT equipment. With excellent electrical performance, enhanced intelligent monitoring and network functions, complying with ENERGY STAR® 2.0, EMC and safety standards to meet the continually growing power demands of Data Center, Enterprise and Edge IT Infrastructure. | |
| Manufacturer | PANDUIT CORP |
| Manufacturer Part Number | U10N11V |
| Manufacturer Website Address | http://www.panduit.com |
| Brand Name | Panduit |
| Product Line | SmartZone |
| Product Model | U10N11V |
| Product Name | SmartZone U10N11V 10000VA Rack/Tower/Rail UPS |
| Product Type | Double Conversion Online UPS |
| Technical Information: | |
| AVR | Yes |
| Plug/Connector Type | Hard Wire 3-wire (2PH + G) |
| Receptacle Type | NEMA L6-30R |
| Receptacle Detail | 2 x NEMA L6-30R |
| Transfer Time | 0 ns |
| Overload Protection | Yes |
| Phase | Single Phase |
| Application/Usage | Computer
IT Equipment Data Center Edge Computing |
| Power Description: | |
| Load Capacity (VA) | 10000 VA |
| Load Capacity (Watt) | 10 kW |
| Input Voltage | 120 V AC
230 V AC |
| Input Voltage Range | 110 V AC - 285 V AC
185 V AC - 264 V AC |
| Output Voltage | 208 V AC
240 V AC |
| Input Frequency | 70 Hz |
| Output Frequency | 60 Hz |
| Waveform Type | Pure Sine Wave |
| Surge Energy Rating | 600 J |
| Management: | |
| Alarm | Yes |
| Controls/Indicators: | |
| Status Indicators | Colorful LCD with cold start button and LED indicators |
| Interfaces/Ports: | |
| Serial Port | Yes |
| USB (HID Compliant) Port | Yes |
| EPO Port | Yes |
| Battery Information: | |
| DC System Voltage | 240 V DC |
| Number of Batteries | 20 |
| Battery Characteristics | Valve-regulated/Maintenance-free/Hot-swappable |
| Battery Size | 12V |
| Battery Capacity | 9000 mAh |
| Backup/Run Time (Full Load) | 4.50 Minute |
| Backup/Run Time (Half Load) | 12.90 Minute |
| Typical Battery Recharge Time | 6 Hour |
| Replaceable Battery | Yes |
| Environmental Conditions: | |
| Maximum Operating Temperature | 104°F (40°C) |
| Storage Temperature | -13°F (-25°C) - 131°F (55°C) |
| Maximum Operating Elevation | 9842.52 ft |
| Sound Emission | 58 dB |
| Thermal Dissipation | 581.75 W |
| Physical Characteristics: | |
| Product Color | Black |
| Form Factor | Rack/Tower/Rail |
| Rack Height | 6U |
| Height | 5.2" |
| Width | 17.3" |
| Depth | 26.2" |
| Weight (Approximate) | 191.80 lb |
| Miscellaneous: | |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Energy Efficiency Certification | ENERGY STAR 2.0 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS)
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Warranty: | |
| Warranty | 3 Year |
| Additional Warranty Information |
|
Questions and Answers
Questions and Answers | Ask CompSource |
Shipping / Returns
Shipping
Ground =
FREE
(Delivery within 2-7 business days)
Two Day Air = $197.00
(Delivery within 2 business days)
Standard One Day = $233.00
(Delivery within next business day)
Priority = $261.00
(Delivery within next business morning)
U.S Mail Priority (AA,AE,AP only) = $152.67
FedEx International Economy (Canada only) = $257.00
Typically out of stock items are filled within 1 to 14 business days but can and may take longer.
Shipping dates are best estimates based on product location and may vary with holidays.
If product requires trucking, additional fees may apply.
* Some destinations are subject to Applicable State/Duty Taxes
Returns
CompSource realizes that every product may have different return guidelines. Please see the policy below regarding this item.
This Product Has Limited Exchange Privileges.
Please call for return guidelines.
For support on this product, please contact Panduit. 800-777-3300 www.panduit.com/
Panduit Company's Information
Click Panduit for all products
Toll Free #: 800-777-3300
Site: www.panduit.com/
Accessories
Product Reviews
Overall Rating | Write a Review
|
|
Best Sellers
More Best Sellers
1500va Smart App (OL1500RTXL2U)
$1,265.95
Recently Viewed
About Panduit
Panduit recognizes that physical, electrical, and network infrastructure is more important than ever for connecting the critical parts of the world we live in today – and in the future. Our vision is to leverage our full portfolio and capabilities and our partner ecosystem, to support our customers in the design, development, and deployment of infrastructure solutions that realize these critical connections for life.
Connections mean everything. People thrive on them. Industry is powered by them. Society grows from them. And, in today's hyper-connected economy, your connectivity can be the difference between driving competitive advantage and getting left behind. That's why the physical, electrical, and network infrastructure underpinning your organization grows more essential by the day.
For more than 60 years, we have invested our heart, soul, and engineering curiosity in the innovations that realize the critical connections for life. We work with leading organizations in markets as diverse as manufacturing, education, healthcare, transportation, energy, and telecommunications to create comprehensive, stable infrastructure solutions. These solutions instill agility, productivity, and advantage at every layer of their business.
Our customers look to Panduit as a trusted, strategic advisor who works with them to address their most critical business challenges within their data center, enterprise, and industrial environments, powering progress and the bottom line. Most importantly, these organizations and the markets they serve count on Panduit for the solutions that connect our world in the most meaningful ways.
Here are just a few popular Panuit categories CompSource carries;
CompSource has a great technical staff that can help with your Panduit solution for your exact needs.Chat with us or give our professionals a quick phone call (800)-413-7361.
Learn more about UPS Commercial
Understanding the Differences: Commercial UPS vs. Consumer UPS and 3 Phase UPS
When it comes to ensuring uninterrupted power supply, understanding the differences between commercial UPS (Uninterruptible Power Supply) and consumer UPS is crucial. Additionally, knowing about 3-phase UPS systems can help you make an informed decision for your specific needs. Let's dive into the details.
What is a UPS?
A UPS is a device that provides emergency power to connected equipment when the main power source fails or fluctuates. It's essential for protecting sensitive electronics from power outages, surges, and spikes.
Consumer UPS vs. Commercial UPS
Consumer UPS
- Usage: Designed for home use, typically for personal computers, gaming consoles, and small office equipment.
- Capacity: Generally lower power capacity, suitable for smaller devices.
- Features: Basic features like surge protection, battery backup, and simple user interfaces.
- Examples: APC Back-UPS, CyberPower OR700LCDRM1U.
Commercial UPS
- Usage: Designed for business environments, supporting critical IT infrastructure, data centers, and large office equipment.
- Capacity: Higher power capacity, capable of supporting multiple devices and larger loads.
- Features: Advanced features like extended battery runtime, remote management, and higher efficiency.
- Examples: APC Smart-UPS, Eaton 9PX UPS, CyberPower PR3000RTXL2UN.
3-Phase UPS
A 3-phase UPS is designed for industrial and commercial applications where three-phase power is used. It provides power to three-phase equipment, ensuring continuous operation during power outages.
Advantages of Commercial UPS Over General UPS
- Higher Capacity: Commercial UPS systems can support larger loads, making them ideal for businesses with extensive IT infrastructure.
- Advanced Features: Features like remote management, longer battery runtime, and higher efficiency are essential for business continuity.
- Reliability: Designed to handle critical applications, commercial UPS systems offer greater reliability and performance.
- Scalability: Easily scalable to meet growing business needs, accommodating additional devices and increased power demands.
Why Choose Commercial UPS?
Choosing a commercial UPS over a general UPS is essential for businesses that rely on uninterrupted power for critical operations. It ensures that your data centers, servers, and other essential equipment remain operational during power outages, minimizing downtime and potential data loss.
How to Buy Commercial UPS from CompSource
CompSource offers a wide range of commercial UPS systems from top brands like APC, Eaton, and CyberPower. Here's how you can purchase a commercial UPS from CompSource:
- Visit the CompSource Website: Navigate to the UPS section and filter your search by commercial UPS systems.
- Compare Options: Review the specifications, features, and prices of different UPS models to find the one that best suits your needs.
- Contact Customer Support: If you need assistance in choosing the right UPS, CompSource's customer support team is available to help. You can chat with them online or give them a call at (800)-413-7361.
- Make a Purchase: Once you've selected the UPS, add it to your cart and proceed with the checkout process. CompSource offers free shipping on many models.
By understanding the differences between commercial UPS and consumer UPS, as well as the benefits of 3-phase UPS systems, you can make an informed decision for your power protection needs. Visit CompSource today to explore your options and find the best UPS for your business.
