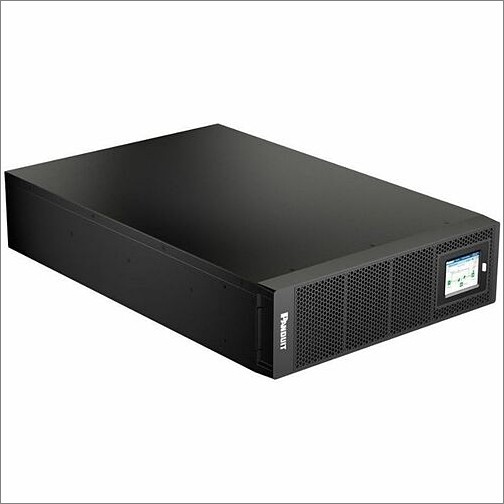

Panduit SmartZone U10S12V 10000VA Rack/Tower UPS - 6U Rack/Tower - 6 Hour Recharge - 9 Minute Stand-by - 230 V AC, 120 V AC Input - 230 V AC, 220 V AC, 240 V AC Output - 2 x IEC 60320 C13, 2 x IEC 60320 C19 - Pure Sine Wave - Serial Port - USB - LCD
Panduit SmartZone U10S12V 10000VA Rack/Tower UPS - 6U Rack/Tower - 6 Hour Recharge - 9 Minute Stand-by - 230 V AC, 120 V AC Input - 230 V AC, 220 V AC, 240 V AC Output - 2 x IEC 60320 C13, 2 x IEC 60320 C19 - Pure Sine Wave - Serial Port - USB - LCD
Part Number: U10S12V
Condition: New
Availability:
Out of stock
Real time availability
Notify Me
Best of Cleveland Award in the Computers category
Compsource is honored to be named to the Inc. 500|5000 list
Ranked among the top 500 companies
Microsoft authorized Education reseller
HP Qualified Supplies Partner
BBB Accredited Business Since 2000
- Shipping Insurance
- Price Match Guarantee
- Terms of Service Guarantee
- Identity Theft Protection
Product Specifications
Panduit SmartZone U10S12V 10000VA Rack/Tower UPS - 6U Rack/Tower - 6 Hour Recharge - 9 Minute Stand-by - 230 V AC, 120 V AC Input - 230 V AC, 220 V AC, 240 V AC Output - 2 x IEC 60320 C13, 2 x IEC 60320 C19 - Pure Sine Wave - Serial Port - USB - LCD
SZ UPS10KVA3U230VSINGLE P EASZ PERP - EA
Manufacturer Part Number: U10S12V
If Stock availability is NOT shown, this item will be custom built and shipped direct from Panduit. Please allow 14 – 21 business days for delivery.
MANUFACTURER NAME: Panduit
MANUFACTURER PART NUMBER: U10S12V
UPC EAN CODE: 61305682498
LANGUAGE: EN
MARKET:US
| General Information: | |
This pure sine wave Double Conversion 5-10KVA UPS, delivers efficient and reliable power protection and backup for your computer IT equipment. The UPS features a maintenance-free VRLA battery and is a 5-10kVA single-phase 208/230 volt unit. The pure Online Double Conversion system provides constant excellent electrical performance and comes standard with enhanced intelligent monitoring and network functions. The unit complies with ENERGY STAR® 2.0, EMC, and safety standards to meet the continually growing power demands of Data Center, Enterprise, and Edge IT Infrastructure. Key Features and Benefits | Rack/Tower convertible Supports rack/tower installation with rotatable colorful touchscreen LCD panel Online Double Conversion with fully digital control (EMEA unit only) Provides stable and clean power with less ripple by filtering noise, automatic voltage regulation (AVR), and surge protection Wide input voltage range 110-280 VAC covering extended voltage range, applicable for severe situation such as large power grid fluctuation High efficiency Up to 98%, reducing the energy waste and the cost of electricity Energy savings High Efficiency on Smart ECO mode for Online Double Conversion models Green design RoHS and Reach, CE/UL/ENERGY STAR 2.0 compliant for North America units Output unity power factor Means more active power for IT equipment load Input power factor Power factor correction topology on the input side dramatically reducing the total harmonic distortion (THD) Expandable battery packs Allows to connect maximum five external battery packs, extending the UPS backup running time Intelligent Battery Management: Three-stage battery charging method matching the most optimal curve and temperature compensated with advanced algorithms prolonging the battery life EPO function (Emergency Power Off) Allows to quickly and easily shut down the UPS when emergency event occurs Generator compatible Wide input frequency and voltage, supports connecting to generators, ensuring the uninterruptible operation Hot-Swappable battery design Can perform the replacement of battery cartridge without powering down the UPS Cold start function Allows to boot up the UPS without main input but with batteries Intelligent fan speed regulation Automatically adjustment of fan speed due to the ambient temperature and load percentage Multiple communication interface RS232/USB/intelligent slot, realizing communication, and monitoring function Comprehensive protection function Short-circuit, overload, overheat, battery overcharge and over discharge, output low voltage, fan fault alarm and RJ45 surge protection Programmable outlet group with Smart Load Shedding Loads connected to the programmable group can lose power first, saving more energy and extending the runtime for critical load. Smart Load Shed allows logical group shutdown with time or load. Touch-Screen colorful LCD Colorful LCD with cold start button and LED indicators, providing intuitive display | |
| Manufacturer | PANDUIT CORP |
| Manufacturer Part Number | U10S12V |
| Manufacturer Website Address | http://www.panduit.com |
| Brand Name | Panduit |
| Product Line | SmartZone |
| Product Model | U10S12V |
| Product Name | SmartZone U10S12V 10000VA Rack/Tower UPS |
| Packaged Quantity | 1 Pack |
| Product Type | Double Conversion Online UPS |
| Product UPC | 61305682498 |
| Technical Information: | |
| Plug/Connector Type | Hardwire Terminal (L + N + G) |
| Receptacle Type | Hard Wire (L + N + G)
IEC 60320 C13 IEC 60320 C19 |
| Receptacle Detail | 2 x IEC 60320 C13
2 x IEC 60320 C19 |
| Transfer Time | 0 ns |
| Dataline Protection | RJ-45 |
| Overload Protection | Yes |
| Phase | Single Phase |
| Application/Usage | IT Equipment
Data Center Edge IT Infrastructure |
| Efficiency | 98% |
| Power Description: | |
| Load Capacity (VA) | 10000 VA |
| Load Capacity (Watt) | 10 kW |
| Input Voltage | 230 V AC
120 V AC |
| Input Voltage Range | 176 V AC - 264 V AC
110 V AC - 285 V AC 110 V AC - 280 V AC |
| Output Voltage | 230 V AC
220 V AC 240 V AC |
| Input Frequency | 70 Hz
40 Hz |
| Output Frequency | 50 Hz
60 Hz |
| Waveform Type | Pure Sine Wave |
| Surge Energy Rating | 600 J |
| Output Power Factor | 1 |
| Display & Graphics: | |
| Display | LCD |
| Management: | |
| Network Management | USB/RS-232/Intelligent Card Slot
SNMPv3 |
| Alarm | Overload
Over Charge Fan Fault |
| Interfaces/Ports: | |
| Serial Port | Yes |
| Network (RJ-45) | Yes |
| USB | Yes |
| EPO Port | Yes |
| Battery Information: | |
| DC System Voltage | 240 V DC |
| Number of Batteries | 20 |
| Battery Characteristics | Valve-regulated |
| Battery Chemistry | Lead Acid |
| Battery Size | 12V |
| Battery Capacity | 9000 mAh |
| Backup/Run Time (Full Load) | 9 Minute |
| Backup/Run Time (Half Load) | 18 Minute |
| Typical Battery Recharge Time | 6 Hour |
| Replaceable Battery | Yes |
| Environmental Conditions: | |
| Maximum Operating Temperature | 104°F (40°C) |
| Maximum Operating Elevation | 9842.52 ft |
| Thermal Dissipation | 526.06 W |
| Physical Characteristics: | |
| Product Color | Black |
| Form Factor | Rack/Tower |
| Rack Height | 6U |
| Height | 5.2" |
| Width | 17.3" |
| Depth | 26.2" |
| Weight (Approximate) | 227.08 lb |
| Miscellaneous: | |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Energy Efficiency Certification | ENERGY STAR 2.0 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS)
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Warranty: | |
| Warranty | 3 Year |
| Additional Warranty Information | 3 years for UPS & EBP and 2 years for battery |
