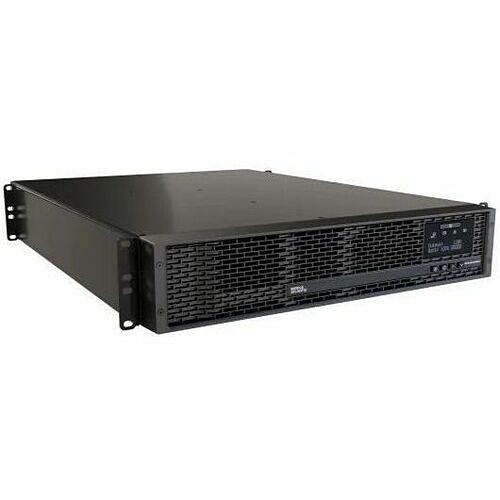

Middle Atlantic NEXSYS 3000VA Rack-mountable UPS - Rack-mountable - 110 V AC, 120 V AC, 127 V AC Output - Pure Sine Wave - 1 x NEMA L5-30R, 6 x NEMA 5-20R Receptacle(s) - Network Card (UPX-RLNK-OL3000R-2)
Middle Atlantic NEXSYS 3000VA Rack-mountable UPS - Rack-mountable - 110 V AC, 120 V AC, 127 V AC Output - Pure Sine Wave - 1 x NEMA L5-30R, 6 x NEMA 5-20R Receptacle(s) - Network Card (UPX-RLNK-OL3000R-2)
Part Number: UPX-RLNK-OL3000R-2
Condition: New
Availability:
Out of stock
Real time availability
Notify Me
Best of Cleveland Award in the Computers category
Compsource is honored to be named to the Inc. 500|5000 list
Ranked among the top 500 companies
Microsoft authorized Education reseller
HP Qualified Supplies Partner
BBB Accredited Business Since 2000
Product Specifications
Middle Atlantic NEXSYS 3000VA Rack-mountable UPS - Rack-mountable - 110 V AC, 120 V AC, 127 V AC Output - Pure Sine Wave - 1 x NEMA L5-30R, 6 x NEMA 5-20R Receptacle(s) - Network Card (UPX-RLNK-OL3000R-2)
NEXSYS 3000VA, 30 AMP ONLINE UPS BACKUP POWER SYSTEM WITH RACKLINK, BANK OUTLET
Manufacturer Part Number: UPX-RLNK-OL3000R-2
NEXSYS is built on a promise that weve kept for over two decades more than half the life of the company that our power products are designed, engineered, and built for AV. Its one thing to say it, its another thing to prove it. And our NEXSYS Online UPSs prove it, we promise. They are built with premium components to keep your AV systems running as smoothly as youd expect.
7 Outlets with Bank Control (2) outlet banks (top and bottom) with 3 outlets each (6) NEMA 5-20R outlets (1) NEMA L5-30R not controlled but always on when UPS is turned on
3000VA and 30 Amp
An Out-of-Box(y) Experience. Everything is assembled and connecte
MANUFACTURER NAME: Middle Atlantic
MANUFACTURER PART NUMBER: UPX-RLNK-OL3000R-2
UPC EAN CODE: 656747397905
LANGUAGE: EN
MARKET:US
| General Information: | |
NEXSYS is built on a promise that we've kept for over two decades - more than half the life of the company - that our power products are designed, engineered, and built for AV. It's one thing to say it, it's another thing to prove it. And our NEXSYS Online UPSs prove it, we promise. They are built with premium components to keep your AV systems running as smoothly as you'd expect. Control Concepts Supported Product Have the confidence that our modules and plug-ins are developed and backed by Control Concepts, the premier software developer for the AV industry.
An Out-of-Box(y) Experience. Everything is assembled and connected right from the factory saving you time during your installations
Customization is a Breeze. The NEXSYS Power Management Software on your PC allows you to customize and configure various settings and notifications if you don't like our default settings - we won't be offended RackLink™ Remote Management. RackLink compatible for remote monitoring and management right out of the box! Use the RackLink Discovery Tool on your on PC, Apple or Android devices and connect directly to the UPS. Pure Power. All NEXSYS Online Double Conversion UPSs have a Pure Sine Wave output providing the cleanest power to your connected equipment, especially the most sensitive equipment No time to wait. Absolute zero transfer time because the connected equipment is ALWAYS powered from the battery. Keep in mind, that batteries in Online UPSs do need to be replaced more frequently, but NEXSYS will give you the heads up when that time comes. "NEXSYS, alert me when...". Set reminders or notifications for things like battery replacement, etc. via email or on the UPS Swap it like it's hot. Hot-swappable battery from the front access panel for easy service without disrupting the system Energy Star Certified
| |
| Manufacturer | Legrand Group |
| Manufacturer Part Number | UPX-RLNK-OL3000R-2 |
| Manufacturer Website Address | http://www.legrand.us |
| Brand Name | Middle Atlantic |
| Product Line | NEXSYS |
| Product Name | NEXSYS 3000VA Rack-mountable UPS |
| Packaged Quantity | 1 |
| Product Type | Double Conversion Online UPS |
| Product UPC | 656747397905 |
| Technical Information: | |
| Plug/Connector Type | NEMA L5-30P |
| Receptacle Type | NEMA L5-30R
NEMA 5-20R |
| Receptacle Detail | 1 x NEMA L5-30R
6 x NEMA 5-20R |
| Cord Length | 10.17 ft |
| Power Description: | |
| Load Capacity (VA) | 3000 VA |
| Load Capacity (Watt) | 2700 W |
| Output Voltage | 110 V AC
120 V AC 127 V AC |
| Waveform Type | Pure Sine Wave |
| Management: | |
| Network Management | Network Card |
| Battery Information: | |
| Hot Swappable | Yes |
| Replaceable Battery | Yes |
| Environmental Conditions: | |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Physical Characteristics: | |
| Product Color | Black |
| Height | 22" |
| Width | 19" |
| Depth | 3.5" |
| Form Factor | Rack-mountable |
| Weight (Approximate) | 64.20 lb |
| Miscellaneous: | |
| What's in the box |
|
| Energy Star | Yes |
| Energy Efficiency Certification | ENERGY STAR 2.0 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS)
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Warranty: | |
| Warranty | 2 Year |
