ATEN 32x32 Modular Matrix Switch-TAA Compliant - 4096 x 2160 - 4K - Twisted Pair - 32 x 32 - Display (VM3200)
ATEN 32x32 Modular Matrix Switch-TAA Compliant - 4096 x 2160 - 4K - Twisted Pair - 32 x 32 - Display (VM3200)
Part Number: VM3200
Condition: New
Availability:
Out of stock
Real time availability
Notify Me
Best of Cleveland Award in the Computers category
Compsource is honored to be named to the Inc. 500|5000 list
Ranked among the top 500 companies
Microsoft authorized Education reseller
HP Qualified Supplies Partner
BBB Accredited Business Since 2000
- Shipping Insurance
- Price Match Guarantee
- Terms of Service Guarantee
- Identity Theft Protection
Product Specifications
ATEN 32x32 Modular Matrix Switch-TAA Compliant - 4096 x 2160 - 4K - Twisted Pair - 32 x 32 - Display (VM3200)
THE VM3200 MODULAR MATRIX SWITCH OFFERS ADVANCED ACCESS AND REAL-TIME CONTROL OF
Manufacturer Part Number: VM3200

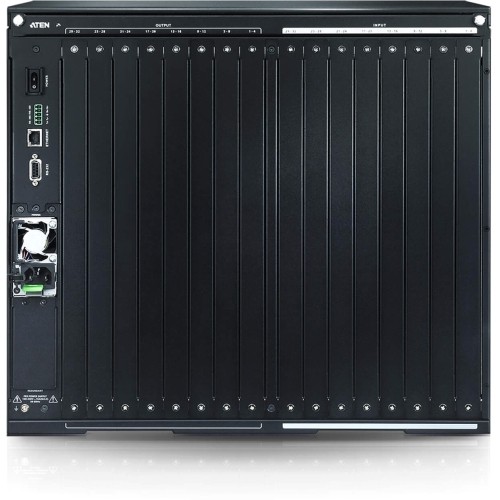

Aten 32x32 Modular Digital Matrix Chassis Switch. The VM3200 Modular Matrix Switch offers advanced access and real-time control of multiple local and remote A/V input devices and displays from a single chassis. The VM3200 allows users to independently switch and route video and/or audio content directly to various monitors, displays, projectors, and/or speakers simply by pressing front panel pushbuttons. A built-in Scaler encodes the video format in order to provide seamless, real-time switching. The front panel LCD shows a quick view of active port connections. The switch also includes an option to select an EDID Mode that yields the best resolution across different monitors.
MANUFACTURER NAME: Aten
MANUFACTURER PART NUMBER: VM3200
UPC EAN CODE: 672792006975
LANGUAGE: EN
MARKET:US
| General Information: | |
The VM3200 Modular Matrix Switch offers advanced access and real-time control of multiple local and remote A/V input devices and displays from a single chassis. The VM3200 allows users to independently switch and route video and/or audio content directly to various monitors, displays, projectors, and/or speakers simply by pressing front panel pushbuttons. A built-in Scaler encodes the video format in order to provide seamless, real-time switching. The front panel LCD shows a quick view of active port connections. The switch also includes an option to select an EDID Mode that yields the best resolution across different monitors. The VM3200 is easily expandable and accommodates a lineup of hot-swappable ATEN I/O boards. Equipped with automatic signal conversion, it allows various combinations of digital video interfaces, including HDBaseT (VM7514 / VM8514), HDMI (VM7804 / VM8804), DVI (VM7604 / VM8604), 3G-SDI (VM7404), and VGA (VM7104). This makes it ideal for large-scale A/V applications such as broadcasting stations, traffic and transportation-related control rooms, emergency service centers, and any application that requires customizable, high-speed A/V signal routing. | |
| Manufacturer | ATEN Technology, Inc |
| Manufacturer Part Number | VM3200 |
| Manufacturer Website Address | http://www.aten.com/us/en/ |
| Brand Name | ATEN |
| Product Line | VanCryst |
| Product Model | VM3200 |
| Product Name | 32x32 Modular Matrix Switch |
| Packaged Quantity | 1 |
| Product Type | Audio/Video Switchbox |
| Product UPC | 672792006975 |
| Technical Information: | |
| Connectivity Technology | Cable |
| Number of Input Devices Supported | 32 |
| Device Supported | Display |
| Number of Displays Supported | 32 |
| Video: | |
| Graphics Modes | 4K |
| Maximum Video Resolution | 4096 x 2160 |
| Interfaces/Ports: | |
| Connectivity (RJ-45) | Yes |
| Number of Connectivity (RJ-45) Ports | 1 |
| Media & Performance: | |
| Media Type Supported | Twisted Pair |
| Physical Characteristics: | |
| Form Factor | Rack-mountable |
| Height | 15.7" |
| Width | 18.6" |
| Depth | 19" |
| Weight (Approximate) | 40.12 lb |
| Miscellaneous: | |
| What's in the box |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS)
Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | Taiwan |
| Warranty: | |
| Warranty | 3 Year |
